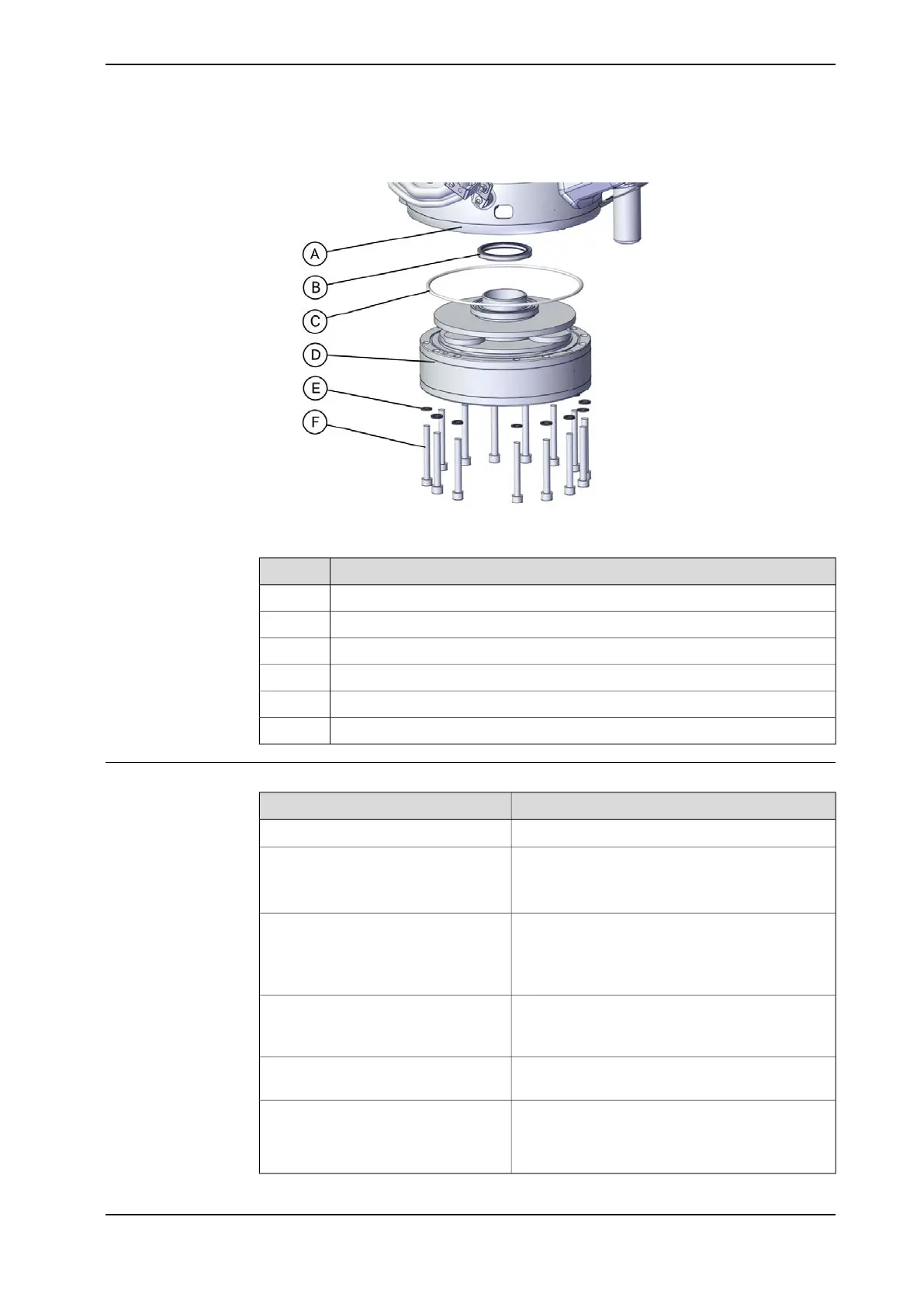

IRB 2600 Type C-20/1.65, IRB 2600 Type C-12/1.65
xx1800000800
Nabtesco gearbox
FrameA
Radial sealingB
O-ringC
Gearbox axis 1D
Washer (14 pcs)E
Attachment screws M10x80 quality Steel 12.9 Gle 603+Geo500 (14 pcs)F
Required equipment
NoteEquipment
See Spare part lists on page 445.Gearbox
Guide pin, M8x150: 3HAC15520-2Guide pins
Used to guide the gearbox during removal/refitting.
Always use guide pins in pairs.
3HAC15520-1Valid for IRB 2600 Type C-20/1.65, IRB
2600 Type C-12/1.65:
Always use guide pins in pairs.
Guide pin, M8x100
Additional pins to guide the gearbox during remov-
al/refitting.
3HAC068109-001Guide for reduction gear
Used to guide axis-1 gear and frame during refit-
ting.
Content is defined in section Standard tools on
page 441.
Standard toolkit
These procedures include references to the tools
required.
Other tools and procedures may be re-
quired. See references to these proced-
ures in the step-by-step instructions
below.
Continues on next page
Product manual - IRB 2600 359
3HAC035504-001 Revision: Q
© Copyright 2009-2018 ABB. All rights reserved.
4 Repair
4.8.1 Replacing gearbox axis 1
Continued
