4.3.10 Inspecting the oil level in axis-5 gearbox

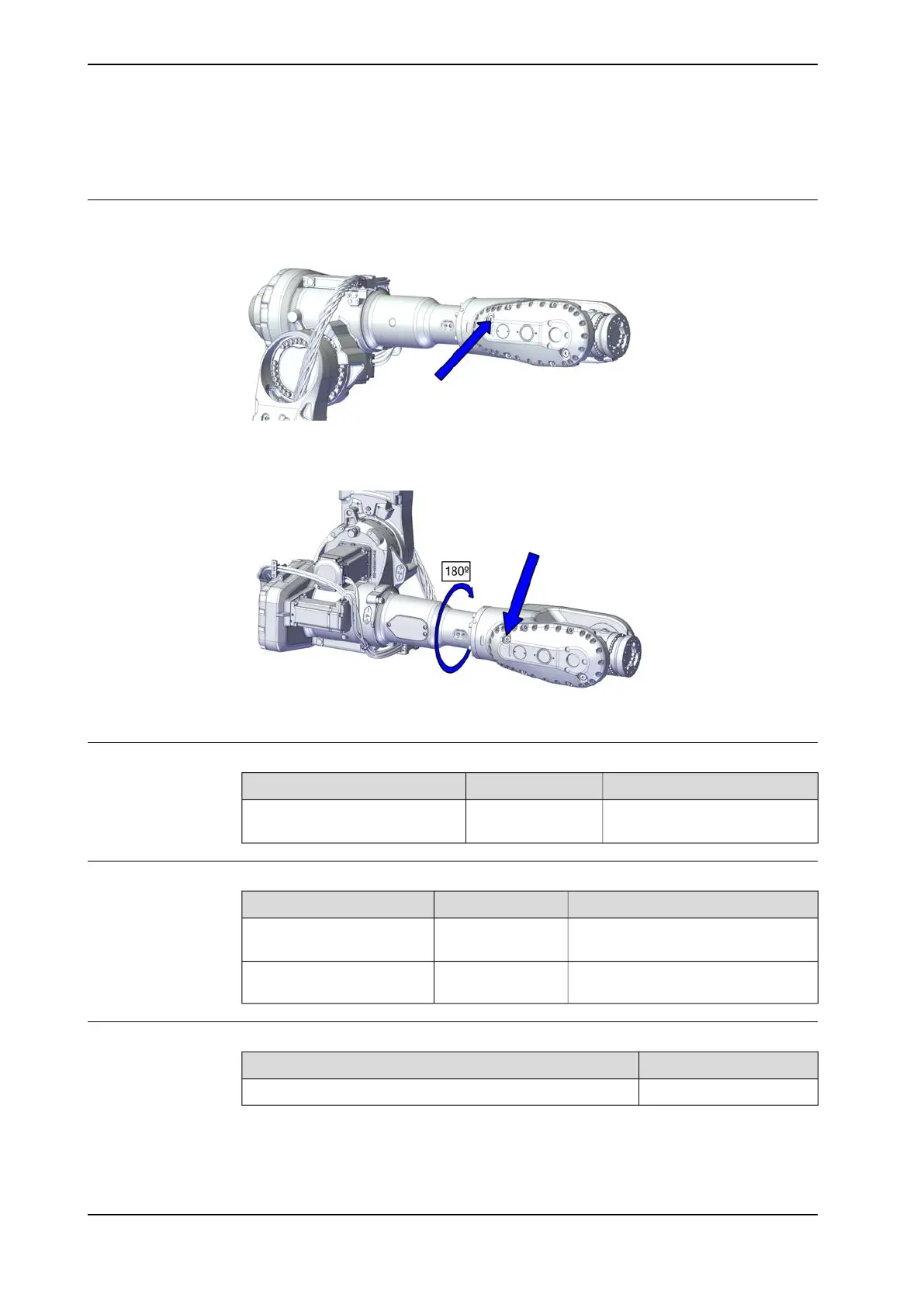

Location of the oil plug
The oil plug for inspection is located as shown in the figure.
xx2100002073
Option Inverted (3317-1)
xx2100002074
Required tools and equipment
NoteArticle numberEquipment
Content is defined in section
Standard toolkit on page 596.
-Standard toolkit
Required consumables and wear parts
NoteArticle numberWear part
See Type of lubrication in gearboxes
on page 141.
-Lubricating oil
Used on oil plug. Always replace when
refitting oil plug.
3HACxxxO-ring
Required documents
Document numberDocument name
3HAC042927-001Technical reference manual - Lubrication in gearboxes
