5.3 Replacing parts on the front panel
5.3.1 Replacing the manipulator signal connector (SMB)
Location

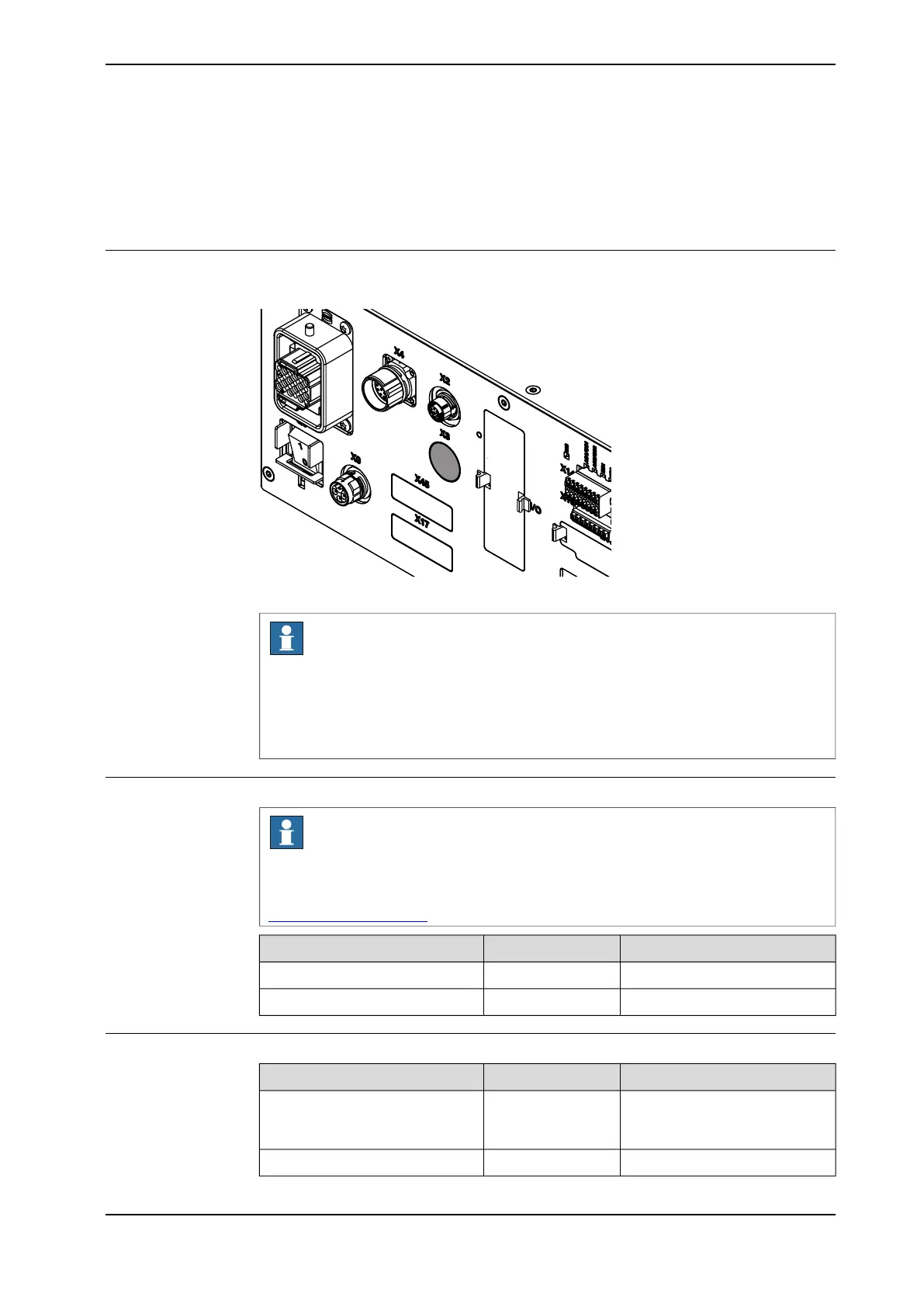

The illustration shows the location of the manipulator signal connector.
xx1800000037
Note
To confirm whether this unit is available in your controller, see chapter Overview
of the controller on page 38.
If this unit is not available in your controller, ignore the related procedure to this
unit when you do any maintenance or repair work.
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the OmniCore C30 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
Harness single SMB3HAC068537-001Harness Single SMB connection
Harness double SMB3HAC067490-001Harness Double SMB connection
Required tools and equipment
NoteArticle numberEquipment
Content is defined in section
Standard toolkit for controller on
page 570.
-Standard toolkit
-ESD protective wrist band
Continues on next page
Product manual - OmniCore C30 411
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
5 Repair
5.3.1 Replacing the manipulator signal connector (SMB)
