ABB OmniCore C30 User Manual

3.5.7 Ethernet networks on OmniCore

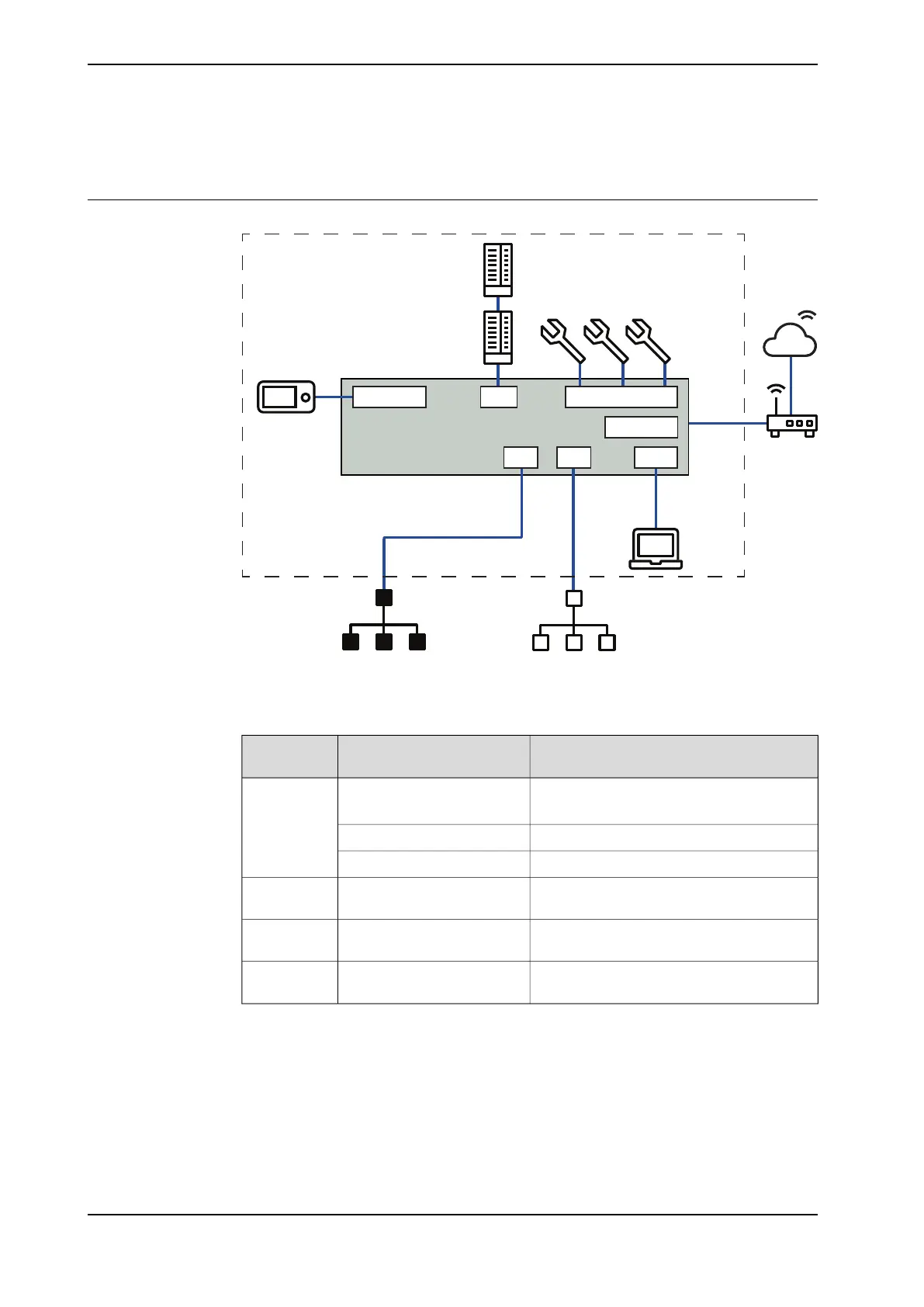

Network segment overview
ABB Ability
TM
MGMTLANWAN
OmniCore C line controller
ETHERNET SWITCH
I/O
FlexPendant
Robot cell
xx2100002084
The Ethernet networks used by OmniCore are distributed into the following
segments:
UsageController portsNetwork seg-
ment
Process equipment local to this specific ro-
bot.
I/O (Scalable I/O)
ETHERNET SWITCH
Private Net-
work
ABB service personnel.MGMT (Management)
FlexPendant connection.HMI (FlexPendant)
ABB Ability™ connection.ABB Ability™Ability Net-
work
Public/factory network.WANPublic Net-
work
Secondary public/factory network. Isolated
from WAN.
LANI/O Network
Continues on next page
104 Product manual - OmniCore C30
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
3 Installation and commissioning
3.5.7 Ethernet networks on OmniCore
