3.8.2 Installing the conveyor tracking module
Overview
The CTM-01 uses network communication to share conveyor speed and position
data with one or more robot controllers. It contains a WAN port, which is used to
connect to the robot controllers and two LAN ports that can be used for installation
and service purposes.

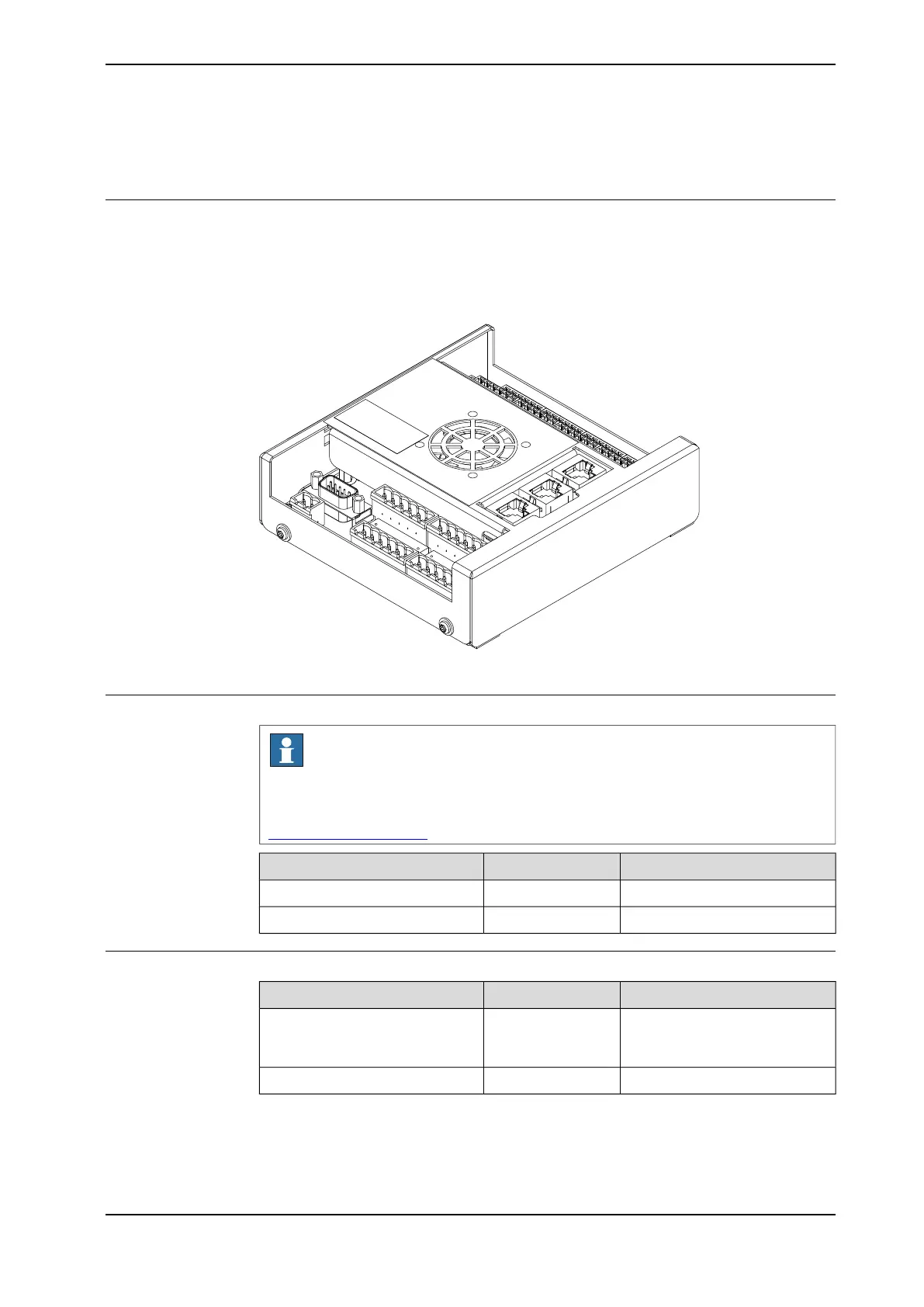

xx1800000941
Required parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the OmniCore C30 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
DSQC20003HNA027579-001Conveyor tracker module [3103-1]
3HNA029345-001CONNECTOR KIT - DSQC2000
Required tools and equipment
NoteArticle numberEquipment
Content is defined in section
Standard toolkit for controller on
page 570.
-Standard toolkit
-ESD protective wrist band
Continues on next page
Product manual - OmniCore C30 195
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
3 Installation and commissioning
3.8.2 Installing the conveyor tracking module
