6.3.9
Troubleshooting
the
main
computer

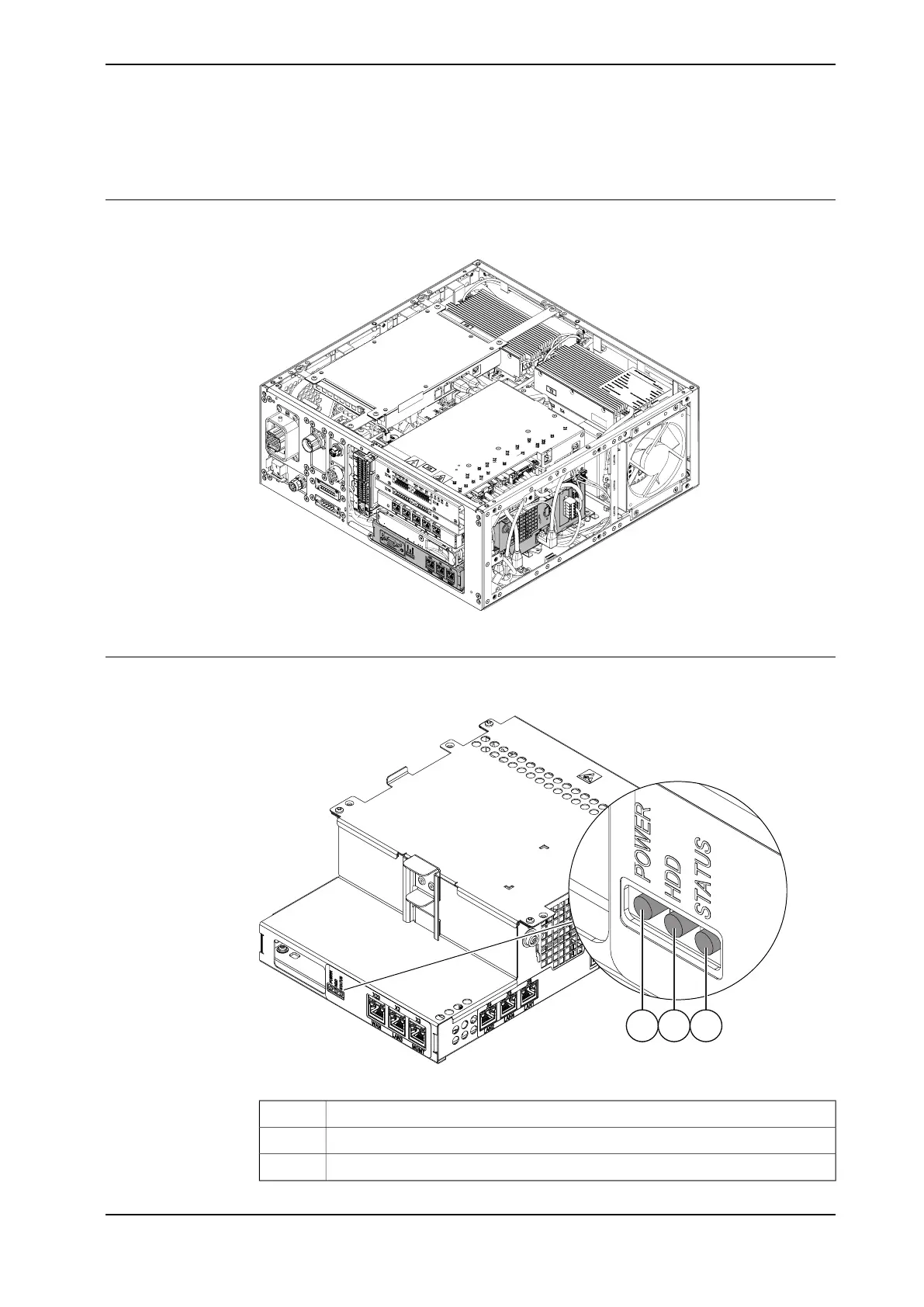

Location
The
illustration
shows
the
location
of
the
main
computer
in
the
controller.
xx1800000033
LEDs
The
illustration
below
shows
the
LEDs
on
the
main
computer:
A
B
C
xx1800000585
Power
status
LED
A
HDD
status
LED
B
Status
LED
C
Continues
on
next
page
Product
manual
-
OmniCore
C30
547
3HAC060860-001
Revision:
P
©
Copyright
2019-2022
ABB.
All
rights
reserved.
6
Troubleshooting
6.3.9
Troubleshooting
the
main
computer
546
548
