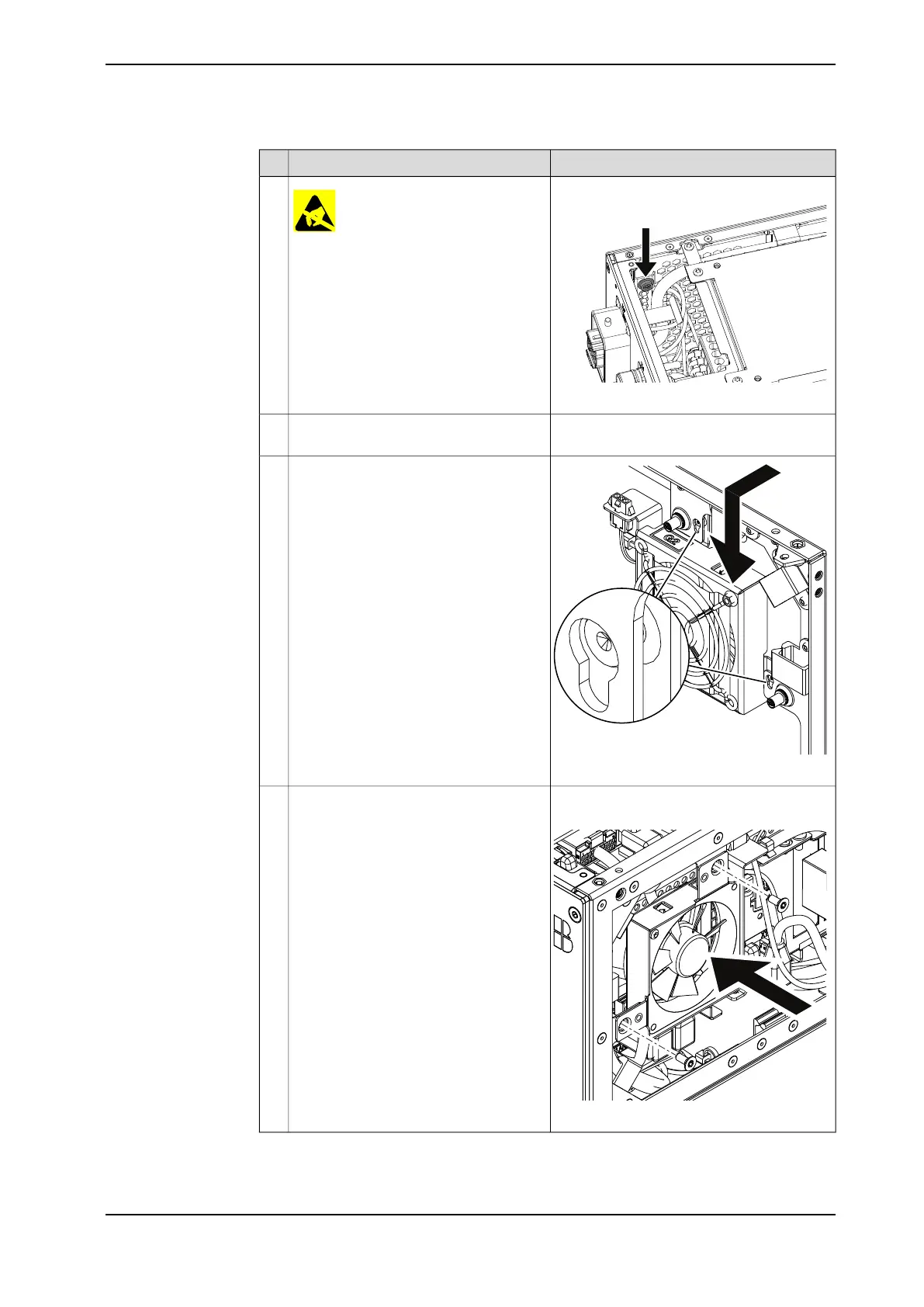

Note/IllustrationAction
Location of wrist strap button:
xx1800000683
ELECTROSTATIC DISCHARGE
(ESD)
The unit is sensitive to ESD. Before
handling the unit read the safety inform-
ation in section The unit is sensitive to
ESD on page 47.
2
Reconnect:
• G2.X1-K2.X17
3
xx1800000483
Refit the fan bracket into the cabinet.4
Screws: Torx, countersunk screw M4x10 (2
pcs)
xx1800000484
Secure it with the screws.5
Continues on next page
Product manual - OmniCore C30 453
3HAC060860-001 Revision: P
© Copyright 2019-2022 ABB. All rights reserved.
5 Repair
5.3.4 Replacing the HMI signal (FlexPendant) connector
Continued
