Using the PSL2 data logger 189
Using the PSL2 data viewer (pro)
You can open and view contents of the uploaded PSL2 data logger files in the PC local
hard drive. The files contain real time data from the converter modules that help in fault
tracing and analysis.
Viewing PSL2 data logger files
1. Go to Tools PSL2 Data Viewer.

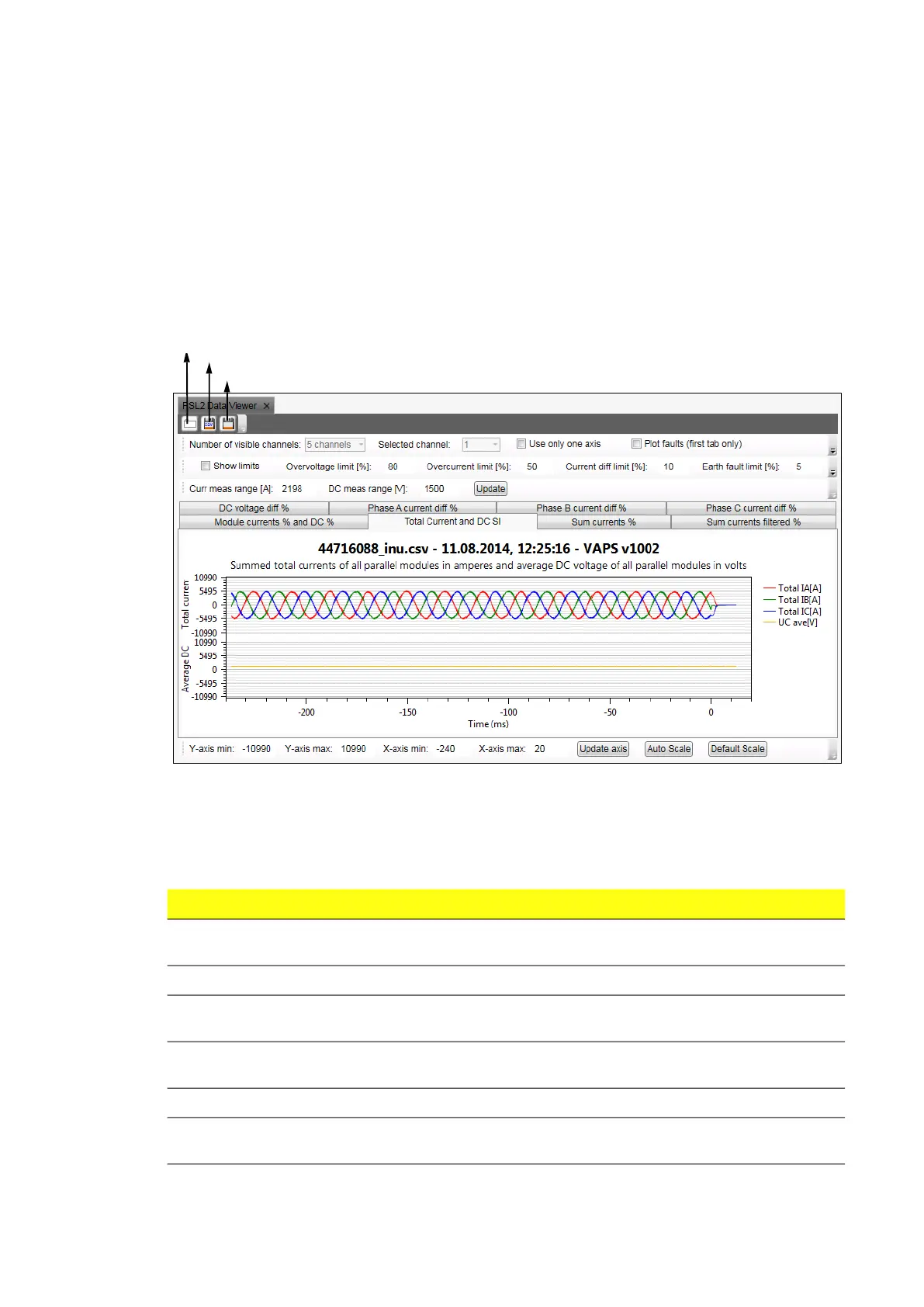

PSL2 Data Viewer screen with PSL2 plotting tools appears. The plotting area is
empty by default. See PSL2 data viewer instructions below to open and save the plot.
PSL2 data viewer instructions
The PSL2 plotting tools can be used to plot current and DC voltage using the uff or csv file.
The table below describes how to use the plotting tools. Match the below instructions with
the above PSL2 data viewer instructions.
Action Instruction
Opening uff or csv file. In the PSL2 Data Viewer window, click Open file icon and select the
file to open.
Saving the plot as csv file. Click Save to CSV icon.
Saving the plot into different file
formats.
Click Save plot icon.
Selecting number of channels to
view in the plot.
Select number of channels in the Number of visible channels
drop-down list.
Viewing the selected channels. See in Selected channel drop-down list..
Aligning selected channels on the
same axis.
Click on Use only one axis check box.
Use this option to draw all selected channels on the same axis.
