ABB RET670 Applications Manual

Proper operation of the CVGAPC function made in this way can easily be verified by
secondary injection. All other settings can be left at the default values. However it shall
be noted that set values for RCA & ROA angles will be applicable for OC2 step if
directional feature is enabled for this step as well. Figure
221 shows overall protection
characteristic
Furthermore the other build-in protection elements can be used for other protection and
alarming purposes.
0.2 0.4 0.6
-0.2
0.6
0.8
0.8
1
D
ILowSet
B
A
C
0.4
0.2
0
1.2
1.4
-0.4
-0.6
-0.8
-rca
Operating Region
Q [pu]
P [pu]
rca
V
PS
I
PS
ILowSet
Operating region
en05000535_ansi.vsd
ANSI05000535 V1 EN

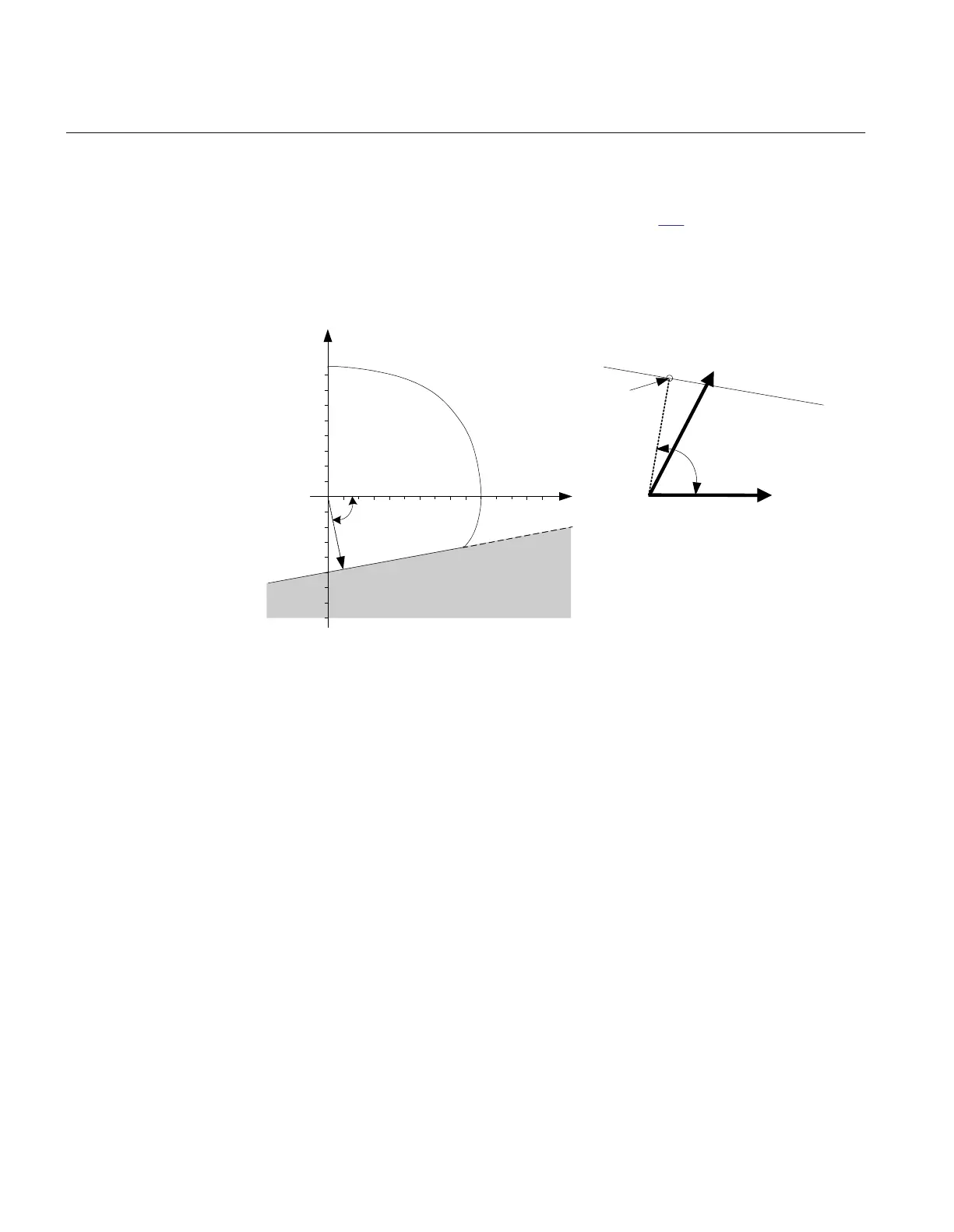

Figure 221: Loss of excitation
Section 3 1MRK504116-UUS C
IED application
564
Application manual

ABB RET670 Specifications

General

Rated Frequency	50/60 Hz
Inputs	Analog and binary inputs
Application	Protection of power systems
Communication Protocols	IEC 61850, DNP3, Modbus
Operating Temperature Range	-25°C to +55°C
Mounting	Rack mounted
Number of Binary Inputs	Up to 48
Number of Binary Outputs	32
Protection Functions	Overcurrent Protection
Outputs	Binary outputs
Enclosure	IP 54
Type	Line Differential Protection
Number of Analog Inputs	24
