Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 11 —
The language of the Wizard corresponds to your language version of Windows.
A warning of the OS Windows XP informs that the
installed driver was not certified by Microsoft. This
notification can be displayed in the process of
installation several times and it is possible to ignore it
without any concerns!

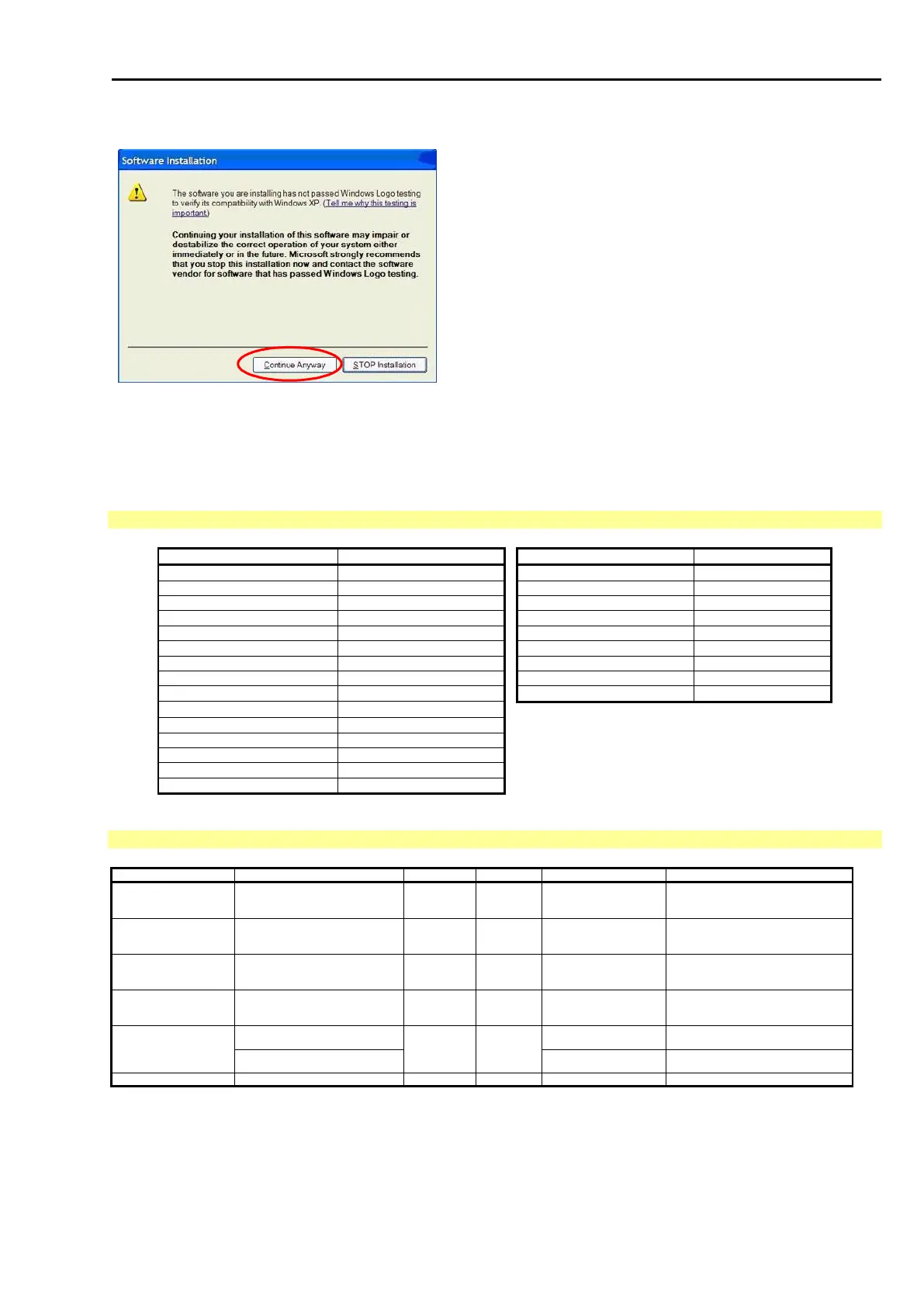

Fig. 22 – A warning of the Windows XP operating system is displayed
(for further details see the Note below)
11. TECHNICAL SPECIFICATIONS
11.1 OSCILLOSCOPE
Parameter
Value
Parameter
Value
Sample Rate - one channel
10 MSPS
Trigger Source
Chan. A or B
Sample Rate - two channels
10 MSPS
Trigger Level
in range of screen
Bandwidth
min. 600kHz (-3 dB)
Graticule
10x10 Div
Vertical Resolution
min. 8 bits
Save of signals
Yes
Input Impedance
2x1 MOhm
Automatic setting
Yes
Input Sensitivity
50 mV ... 50 V/Div
Cursor measurement
Yes
Separation of inputs
Differential inputs
Time Base - one channel
5 µs ... 2,5 s/Div **
Time Base - two channels
5 µs ... 2,5 s/Div **
Displayed samples
50/div *
Record Length
1024 samples ***
* Time base > 2,5 µs/Div
Trigger Position in Records
0 ... 90 %
** For ZOOM 5x = 1 µs/Div
Trigger Mode
Auto / Trig / Single
*** Depending on the selected time base is
Duty cycle
1…99 %
possible in several modes save the
Frequency
1…10000 Hz
scanned time slope into the memory as a files
11.2 MULTIMETRE
Parameter
Sensor Type
Range
Resolution
Accuracy
Notes
DC Voltmeter
Probe A / B (Oscilloscope)
(part of the oscilloscope)
0 ... 2 V
2 ... 20 V
20 ... 400 V
1 mV
10 mV
0,1 V
±1,5% of MV ±5 mV
±1,5% of MV ±20 mV
±1,5% of MV ±0,2 V
AC Voltmeter
Probe A / B (Oscilloscope)
(part of the oscilloscope)
0 ... 2 V
2 ... 20 V
20 ... 400 V
1 mV
10 mV
0,1 V
±2% of MV ±5 mV
±2% of MV ±20 mV
±2% of MV ±0,2 V
For f = 0 ... 1000Hz
(Accuracy is 5% for f = 1kHz ... 10kHz)
DC Amperemeter
(current probe)
Current probe 5/50A - AT114 3016
Current probe 500A - AT114 3015
0 ... 5 A
0 ... 50 A
0 ... 500 A
0,01 A
0,1 A
1 A
±1,5% of MV ±0,005 A
±4% of MV ±0,2 A
±2% of MV ±2 A
AC Amperemeter
(current probe)
Current probe 5/50A - AT114 3016
Current probe 500A - AT114 3015
0 ... 3,5 A
0 ... 35 A
0 ... 350 A
0,01 A
0,1 A
1 A
±2% of MV ±0,005 A
±8% of MV ±0,2 A
±4% of MV ±2 A
for f = 40 Hz ... 2 kHz
for f = 40 Hz ... 5 kHz
for f = 40 Hz ... 400 Hz
High voltage Voltmeter
HV probe N - AT111 4018
HV probe C1 - AT111 4017
0 ... 25 kV
0,1 kV
±10% of MV
±15% of MV
Measurements of the High Voltage
reference cable AT111 4056
HV probe N - AT111 4018
HV probe C1 - AT111 4017
±20% of MV
±30% of MV
Measurement of the commonly used
high-voltage cables
Ohmmeter
0 ... 3 MOhm
±2% of MV
MV - measured value
12. PROGRAM MULTI-DIAG SCOPE START UP
To start the program up, click on the Multi-Diag Scope icon on the monitor desktop (see Fig. 24), or on the Multi-
Diag Scope option from the „Start\Programs Multi-Diag “ program group (see Fig. 23).
