Actia Multi-Diag Scope User Manual

Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 23 —
14.2.8 CURSOR MEASUREMENTS
Switching on/off of
cursor measurements.
Left cursor position.
Right cursor position.
Control of right
cursor position.
Cursor position towards the
record start.
Difference between the voltage of the points of intersection of
the displayed course and the left and right cursor.
Time distance of
cursors.
Voltage value of the point of
intersection of the displayed
course and the left cursor.
Control of left cursor
position.

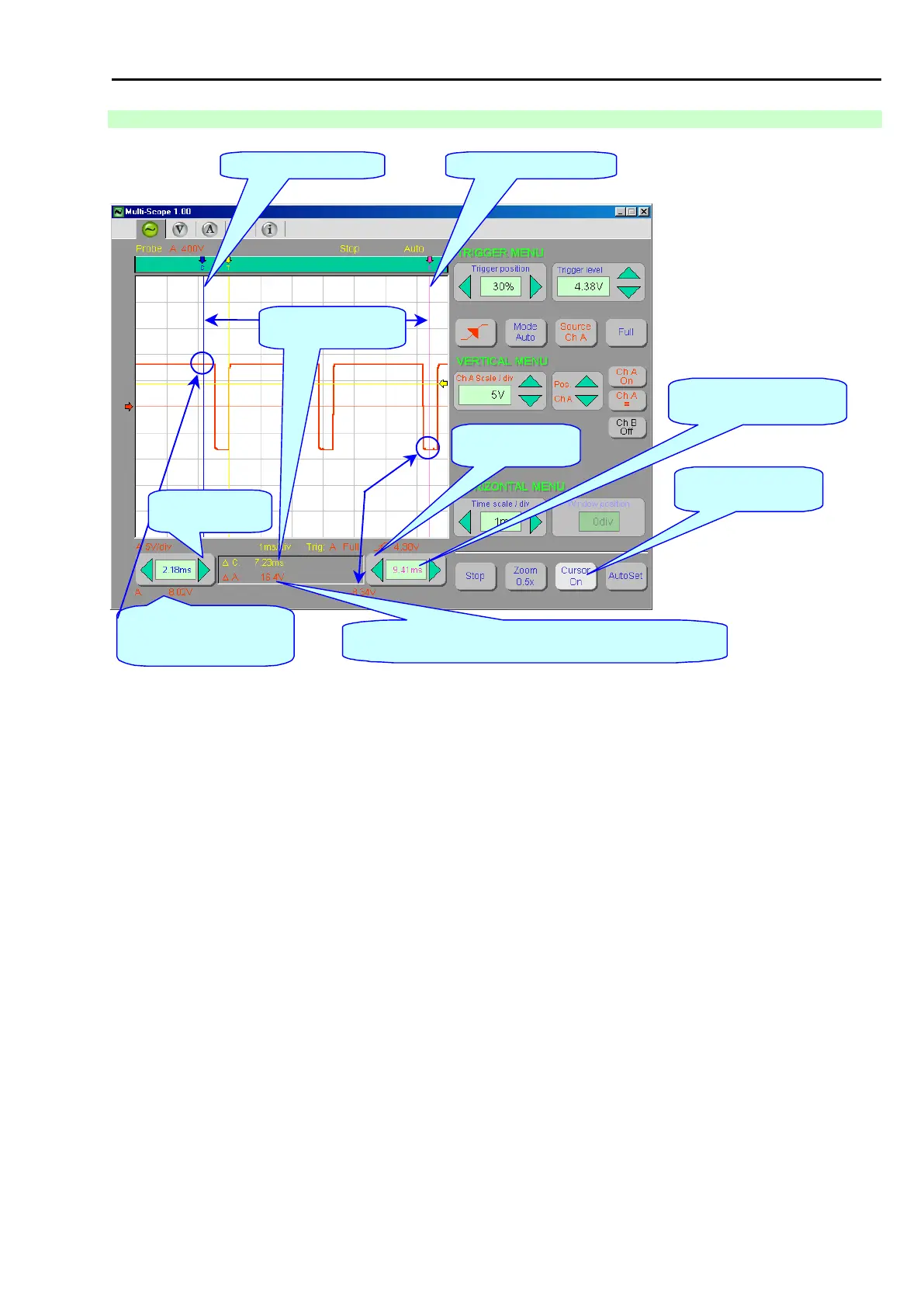

Fig. 46 – Cursor measurements (figure applies to version 1.00)
