Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 22 —

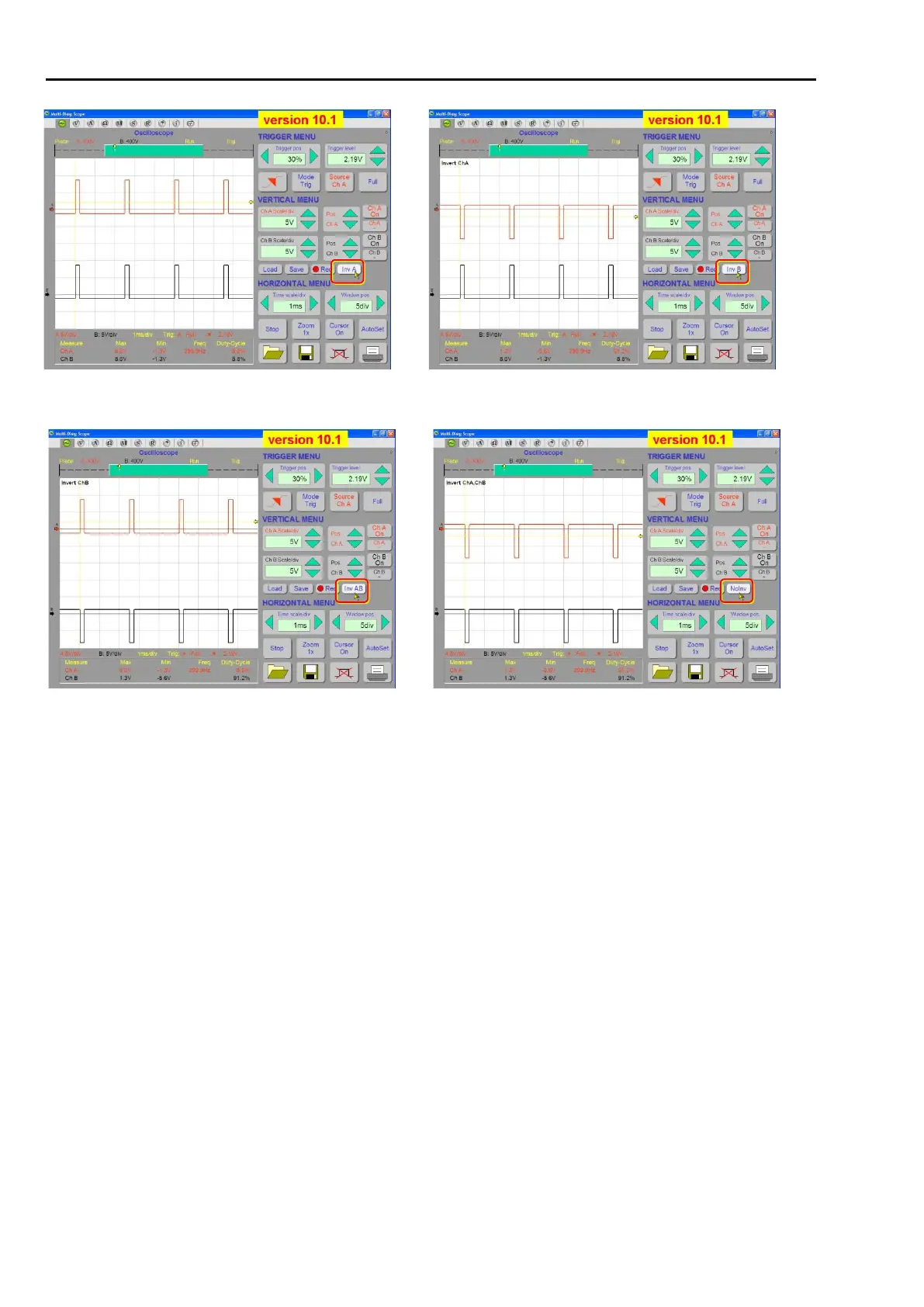

Fig. 42 – Waveform prior to the use of the Invert function (the screen
shot is taken from the 10.1 version for illustration
Fig. 43 – Waveform after the use of the Invert A function (the
channel A inverted)
Fig. 44 – Waveform after the use of the Invert B function (the
channel B inverted)
Fig. 45 – Waveform after the use of the Invert AB function (both
channels A and B inverted)
