Chap. II - Multi-Diag Motortester
Scope_manual_en-v110.docx — 65 —
Cylinder selection buttons

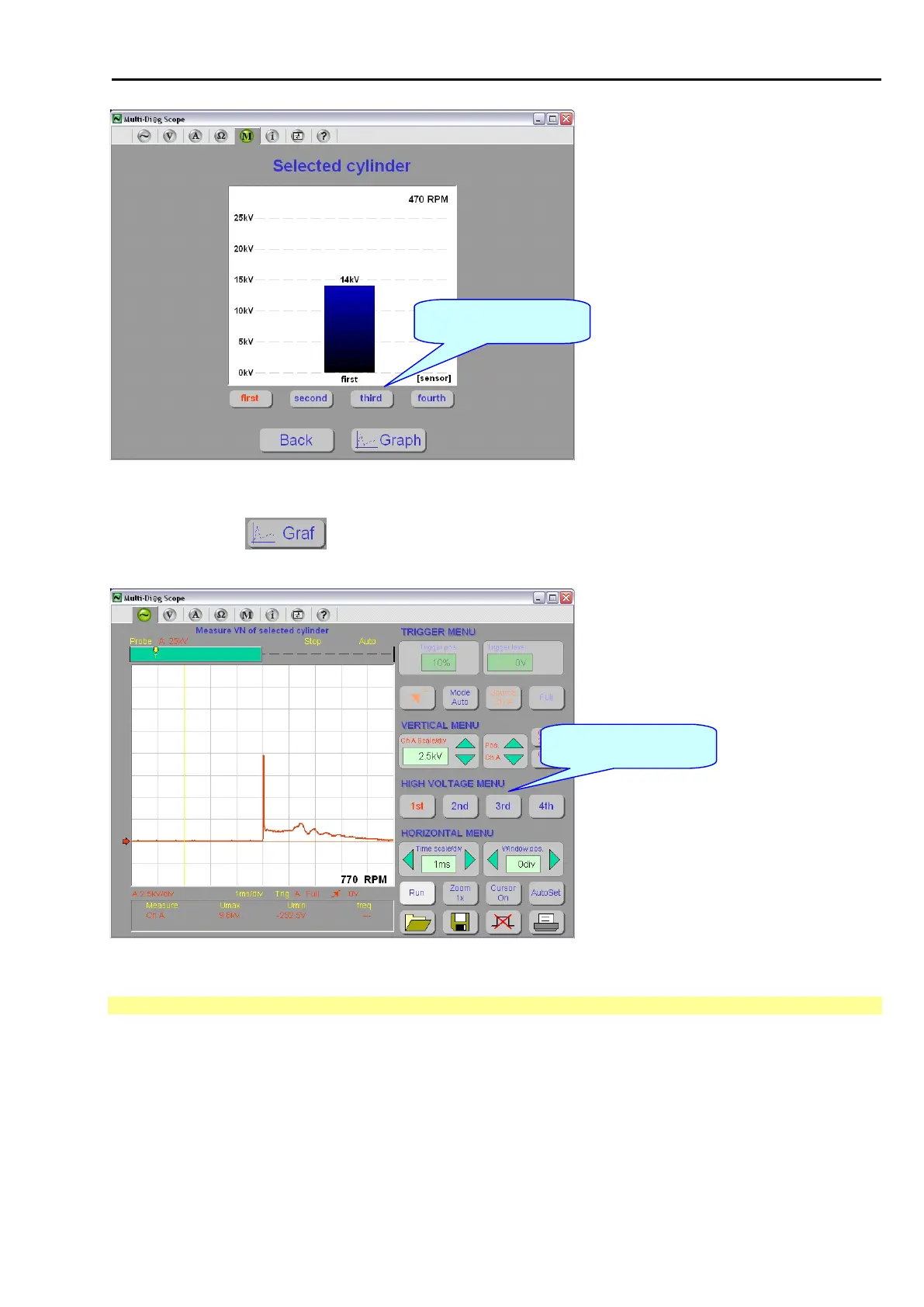

Fig. 149 – Selected cylinder measurement
The selected cylinder is highlighted in red and displayed under the column of the chart.
After pressing the button, you go to the HV oscilloscope measurement. Here a new menu for
switching over between cylinders is displayed (see Fig. 150)
Cylinder selection buttons
Fig. 150 – HV oscilloscope measurement on the selected cylinder
5.5 OIL TEMPERATURE MEASUREMENT
When you select this function, the screen displays engine speed and oil temperature (if the thermometer is
connected and inserted in the dipstick hole), see Fig. 151.
