Actia Multi-Diag Scope User Manual

Chap. IV - Record Analyzer
Scope_manual_en-v110.docx — 78 —
 The course is stored directly in the PC operation memory.
 You can interrupt the scanning by the repeated clicking on the “Rec“ button (see the cursor in Fig. 173)
or by the mouse clicking anywhere in the oscilloscope raster.
 To display or to store the record, you MUST positively confirm the message according to Fig. 179:
 After the positive confirmation, the Record Analyzer will be triggered (Fig. 180).
 After the negative confirmation, the record will be lost beyond recovery.
Recommendation:
To be able to analyze the record later, do save the record to your PC (HDD, USB Flash Disk etc.) by clicking on
the icon symbolizing the floppy disk (Pos.10, Fig. 184).

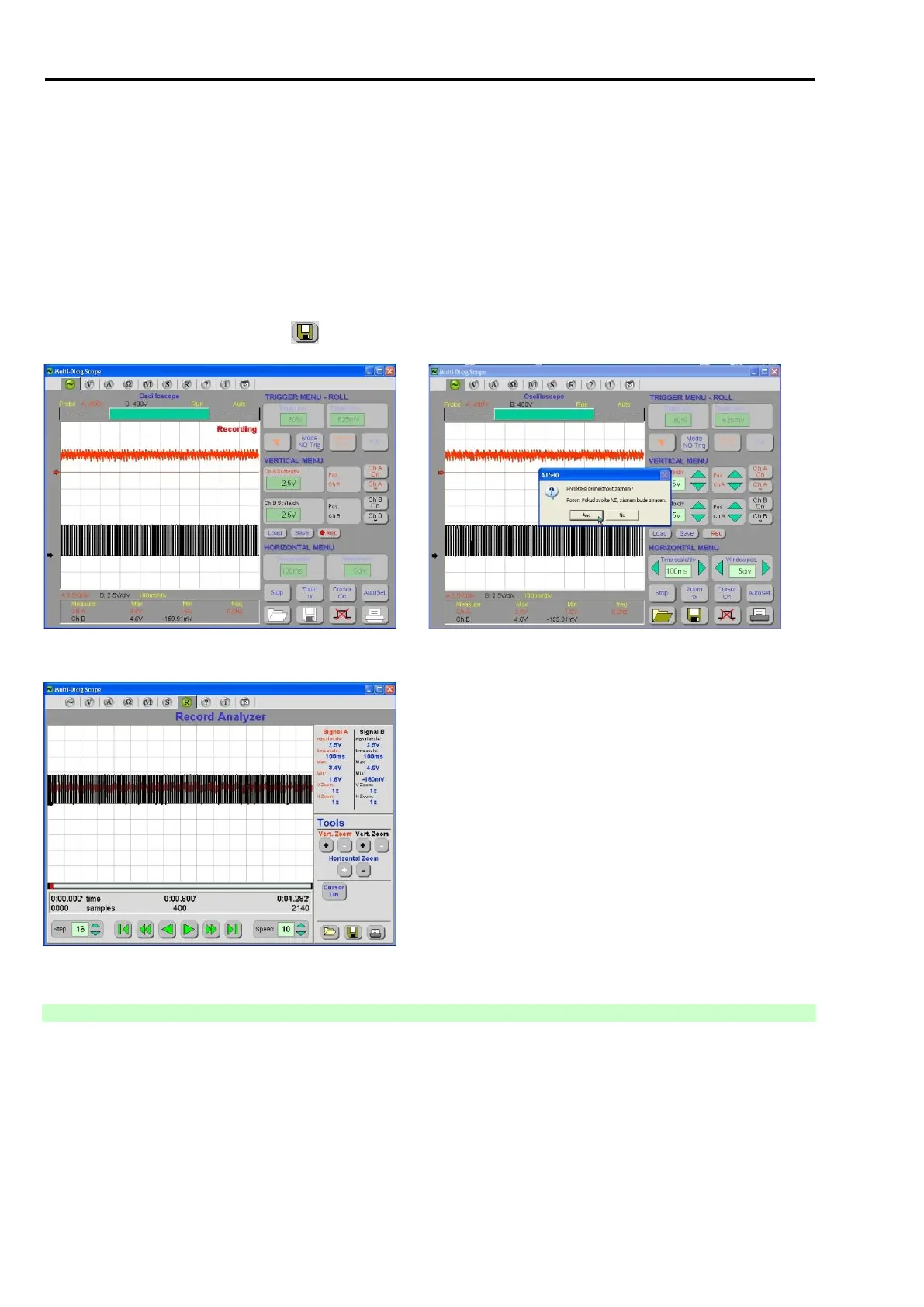

Fig. 178 – Screen of the continuous sampling (oscilloscope time
basis setup - 100 ms to 2.5 seconds)
Fig. 179 – Information window for saving the record
Fig. 180 – Basic screen after the record ending (100 ms to 2.5 seconds)
2.2.2 DISCONTINUOUS SAMPLING
This type of measuring can be used for other than standard oscilloscope measurements, e.g. for the measuring
of cylinder high voltage. It is a special oscilloscope measuring.
A. OSCILLOSCOPE TIME BASIS: LESS THAN 1 MS
 The scanned course IS displayed in this mode (see Fig. 181).
