Chap. I - Multi-Diag Scope Basic User’s Manual

Scope_manual_en-v110.docx — 34 —

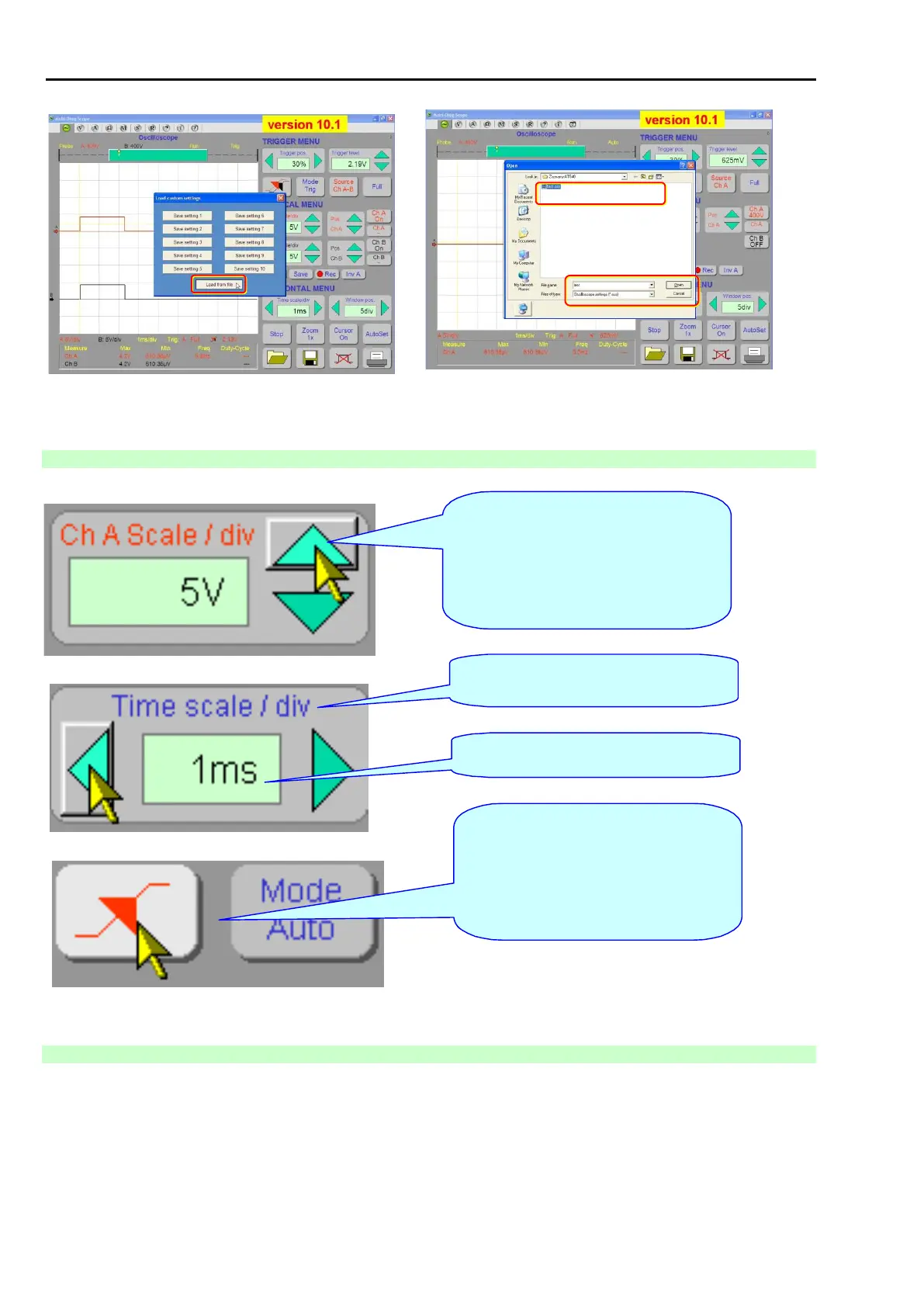

Fig. 79 – Choose an option for loading the setup from a storage

device

Fig. 80 – Select the desired file specifying the previous setup from an

archive (e.g. Test.oss) and confirm the selection

14.2.16 DESCRIPTION OF CONTROL BUTTONS

After placing the cursor on the green arrow, the

button for setting the respective oscilloscope

parameter stands out. By left-clicking the

parameter value changes by one step, by

holding the left-button of the mouse the

parameter value automatically steps until the

button is released or the limit is reached.

Information which oscilloscope parameter is set

by the respective button.

Current value of the respective parameter and

unit in which it is stated.

Current function which can be set by the

respective button and which is represented by a

graphic symbol or a text. By left-clicking the

function that can be selected by the respective

button is changed and the symbol or text in the

button changes as well. The function is selected

cyclically by the repeated left-clicking.

Fig. 81 – Description of control buttons

14.2.17 DESCRIPTION OF SELECTED FUNCTIONS

The Multi-Diag Scope window uses English names, descriptions and messages.

Hereinafter their meanings are defined.

TRIGGER MENU – The menu of functions for the control of record triggering (see Fig. 38).
