By placing the mouse cursor on
the arrow and left-clicking, the
selected arrow can be moved
and in this way oscilloscope
parameters can be set.
This green field corresponding
to the position and size of the
displayed record can be also
moved directly by the mouse
cursor.

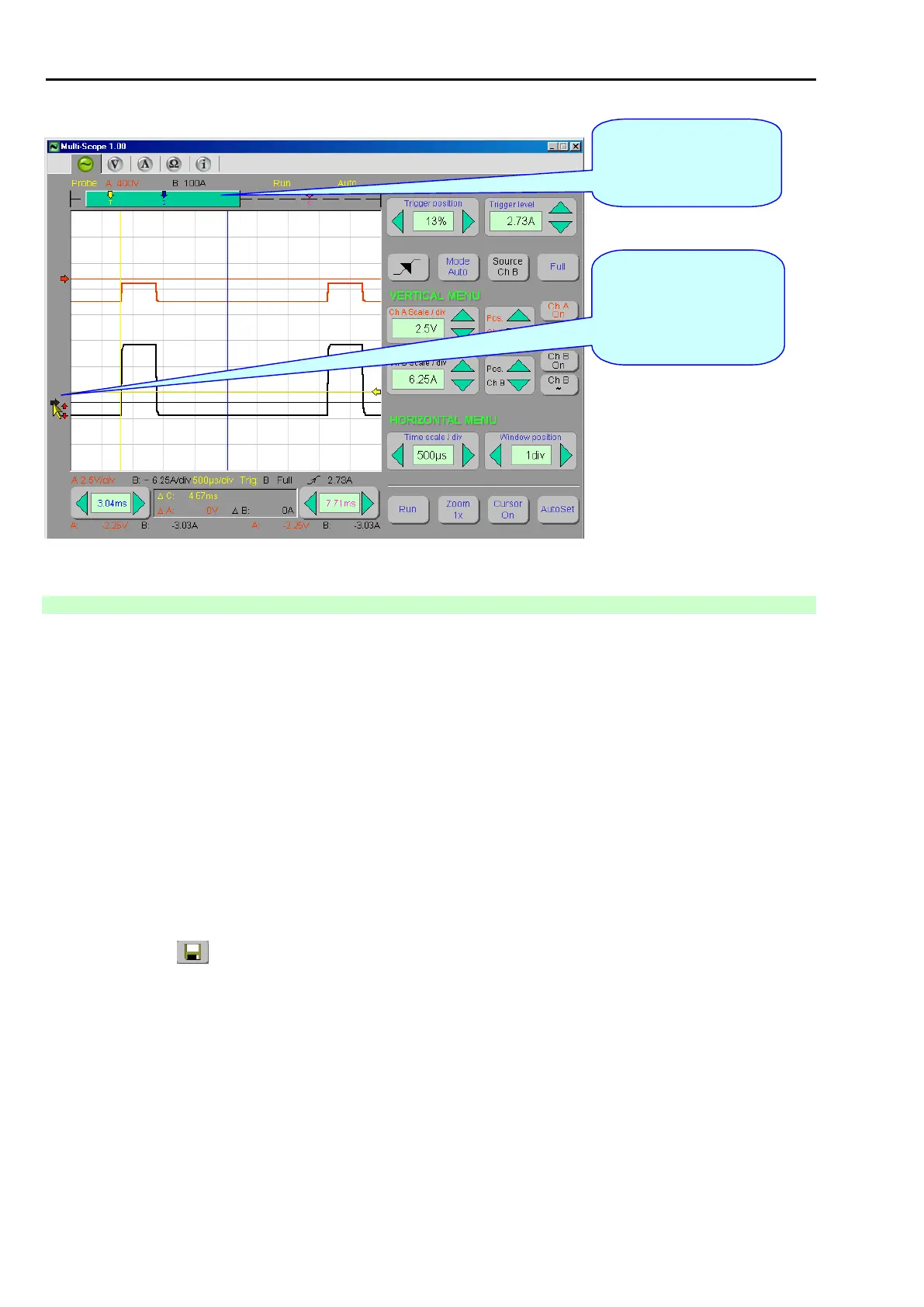

Fig. 51 – Setting of oscilloscope parameters by the mouse cursor moving (figure applies to version 1.00)
14.2.11 SAVING WAVEFORMS
The version 10.1 has seen a remake of the storage of the immediate oscilloscope signals
o new format = *.osg
o former format = *.osc
o although compatibility with the older formats (.osc) has been preserved, now the waveforms are
subject to a partial limitation because they cannot be either moved, or zoomed (change in the
view size)
The new storage function involves essential data, such as:
o measured values
o signal parameters
o trigger conditions
Now two files can be opened at once,
o each file can include 2 waveforms (channels)
o the display of these signals has been adjusted – they can be zoomed and moved similarly to
the measured channels A and B
The remake also includes the display of information about such saved signals
You can now also view the registered signals without a connected HW
When you click the button to save the file (pos.1-Fig. 52), a typical window appears where you can enter the
filename and select its saving location (see Fig. 53).
Recommendation:
The filename includes the date and time of saving and we therefore do not recommend changing it.
