Actia Multi-Diag Scope - Printing of Displayed Waveforms

Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 30 —
Note:
This button is shown only if you have chosen to display two registered waveforms
Fig. 65 – Deleting all saved and displayed waveforms
Fig. 66 – Terminating the function of waveform deletion
14.2.14 PRINTING OF DISPLAYED WAVEFORMS

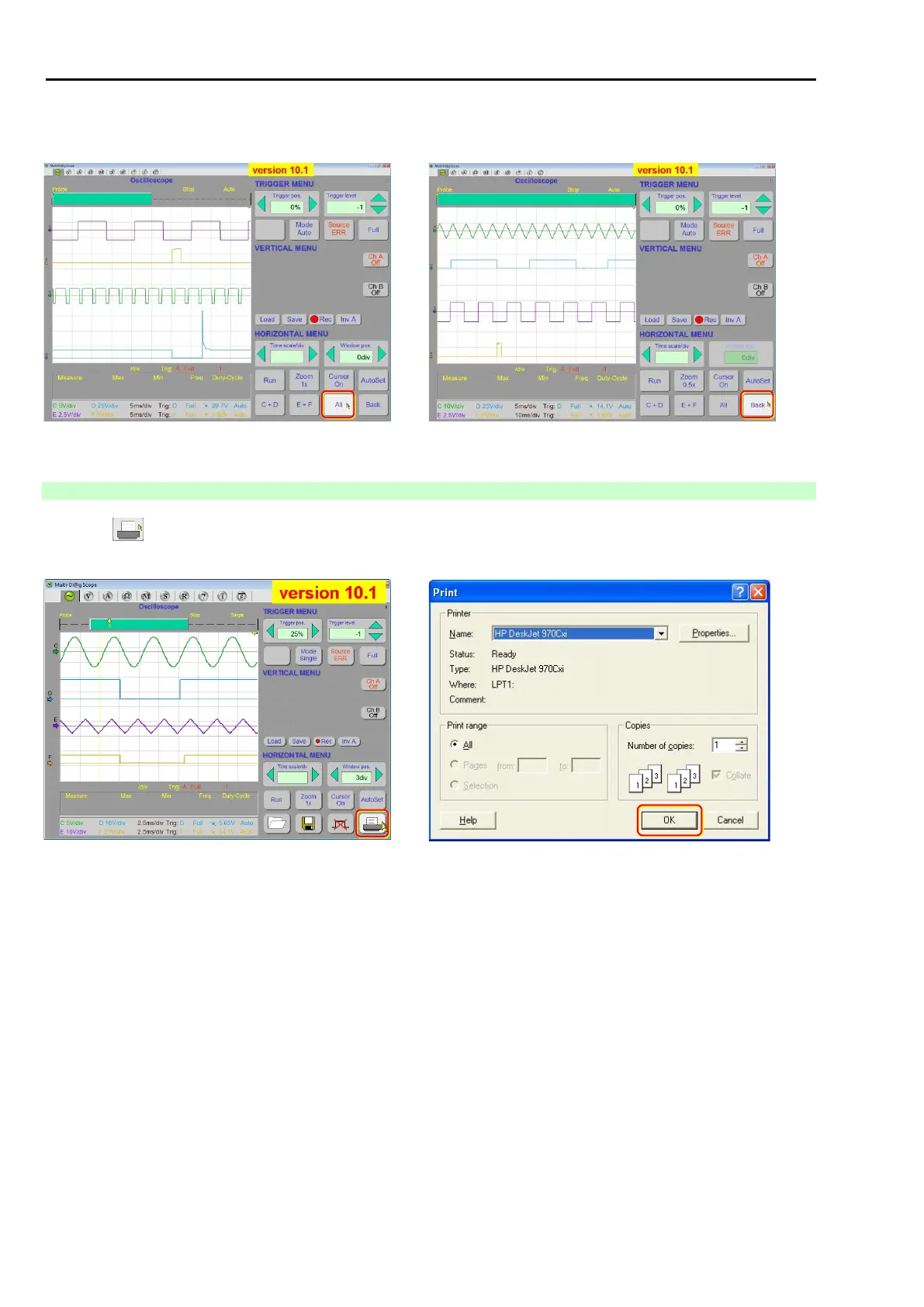

Press the button (see Fig. 67) to display another window where you can select the installed printers (see Fig.
68) and print all of the displayed waveforms (see Fig. 69).
Fig. 67 – Printing the displayed waveforms (Figure from version 10.1
– only for illustration)
Fig. 68 – Typical window for printer selection
