Actia Multi-Diag Scope User Manual

Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 41 —
Fig. 95 – Current probe connected for ohmmeter measurement
14.5.1 PROBE CONTACT RESISTANCE ZEROING
Contact resistance suppression of measuring probes. Interconnect both measuring tips and press button
(see Fig. 96). Contact resistance suppression is done in this moment. Contact resistance suppression is
recommended to use when small resistant value is measured.
14.5.2 RESISTANCE MEASURING
Measured resistance value.
Switch-over to the
resistance
measurement mode
Switch-over to the
conductivity test
mode
Switch-over to the
diode test mode
Resetting of contact
resistances of the
measuring probe
Adding a request to the printer
queue. For details refer to the
chapter Printer queue.

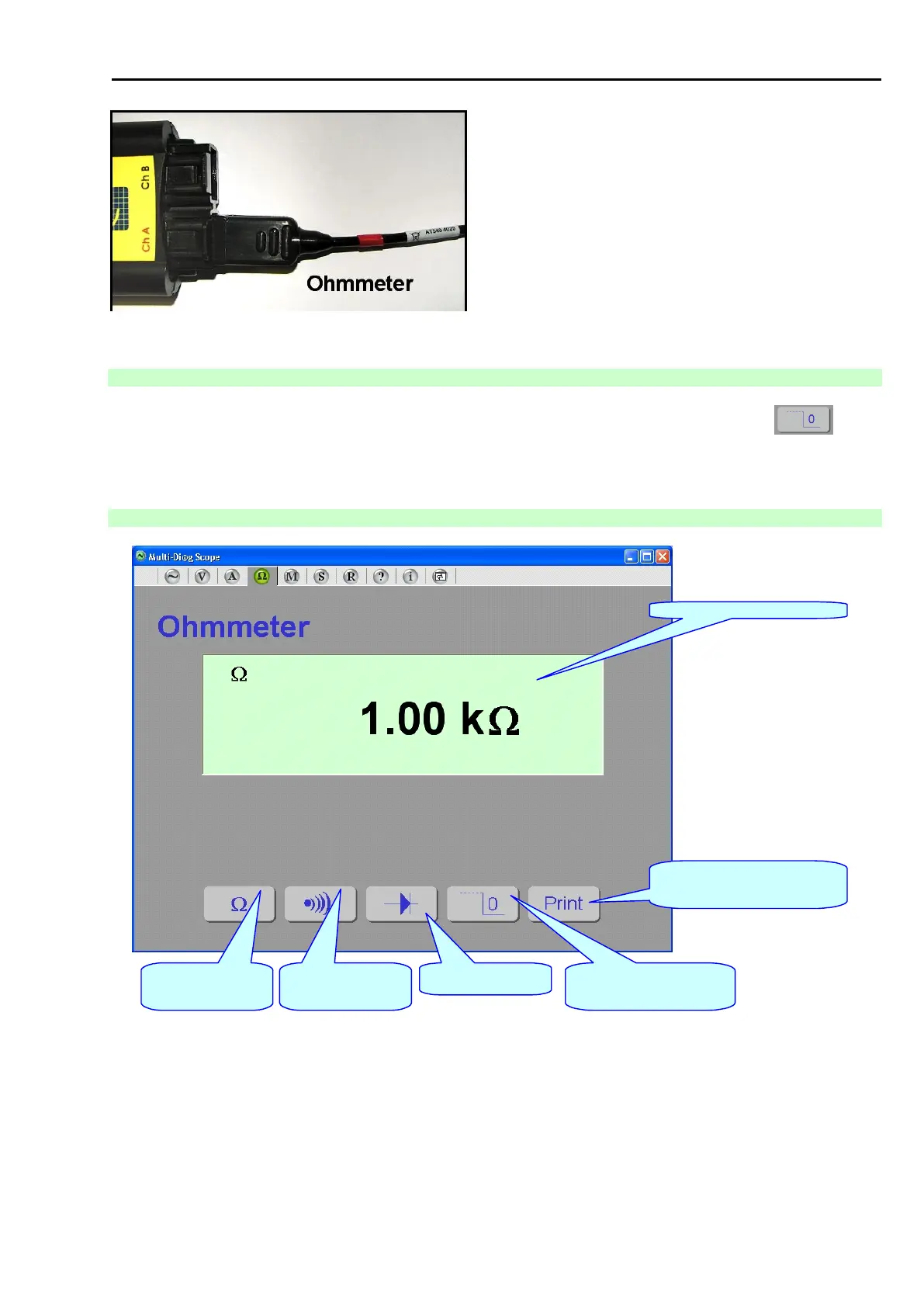

Fig. 96 – Multi-Diag Scope in the Ohmmeter mode (figure applies to version 7.2.4)
