14.8 UNIVERSAL INTERCONNECTION KIT
To find a fault in an electronic system, we often need to perform some
measurements on related circuit, which may be difficult to access on the new
vehicle models. Piercing of wire insulation is not allowed, so it is necessary
to use other way of connection.

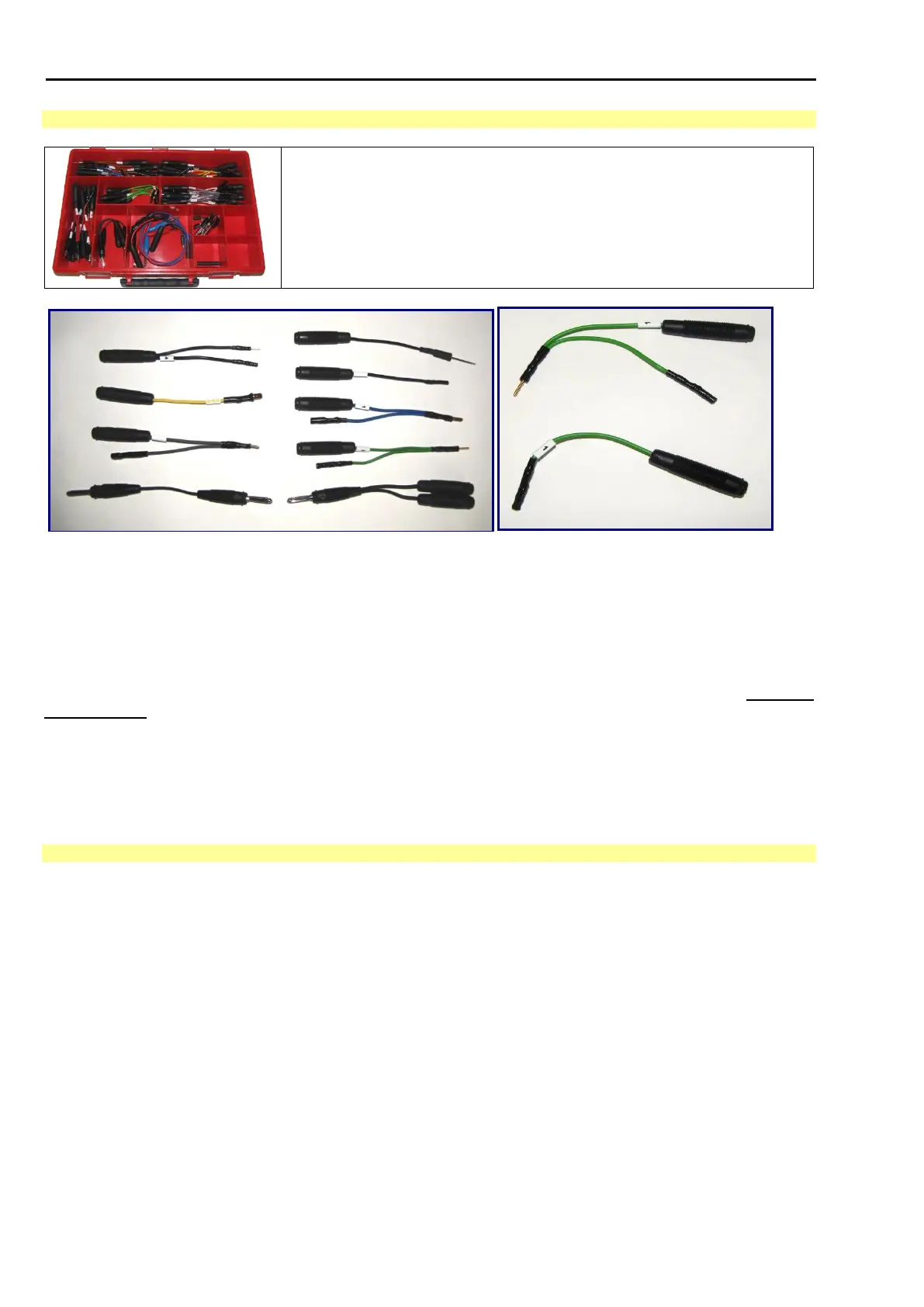

The Universal interconnection kit, which allows to establish such
connections, is a suitable accessory for Multi-Diag Scope.
The set includes several adapters allowing connecting an Multi-Diag Scope to the measured element or cabling
connector. The measured element can be disconnected from or connected to the circuit, and the measurement
may be performed during its functioning, i.e. for example during a driving test.
15. PRINT QUEUE
Print queue is used for easy and efficient printing of the data acquired from different instantaneous numerical
measurements with the Motortester as well as the Oscilloscope.
Print queue functions like a storage location in which the user gradually saves records of the individual
measurement results which he wants to print later. This storage location is printed at once when the user desires.
Warning:
Graphically displayed time behaviours are printed immediately, see Chap. I - 14.2.14
15.1 USING THE PRINT QUEUE
The actual use of this function is simple and intuitive. If you want to print out the currently measured values (to
add them to a print queue), click the “Print” button which is displayed on the screen – provided that it is possible
to print the values of that specific measurement. The main print queue window displays, see Fig. 111.
