Chap. I - Multi-Diag Scope Basic User’s Manual

Scope_manual_en-v110.docx — 37 —

WARNING ! The AUTOSET function simplifies the setting of oscilloscope parameters. Yet when using it, proceed

with caution because in certain courses of measured signals incorrect setting can be carried out and therefore

the visualization can be incorrect too

Probe - Information about attached probes.

Measure - Measuring.

14.2.18 ERROR MESSAGES

No probe on channel – no probe is connected to the input for the selected measurement (e.g. Fig. 87)

Bad probe on channel – an unsuitable probe is connected for the selected measurement (e.g. Fig. 88)

External Voltage – warning in all Ohmmeter modes that the measuring probe is connected to the

external power supply

14.3 VOLTMETER

The oscilloscope cable (probe) Channel A plugged into connector Ch-A is required for the measurement (see Fig.

86)

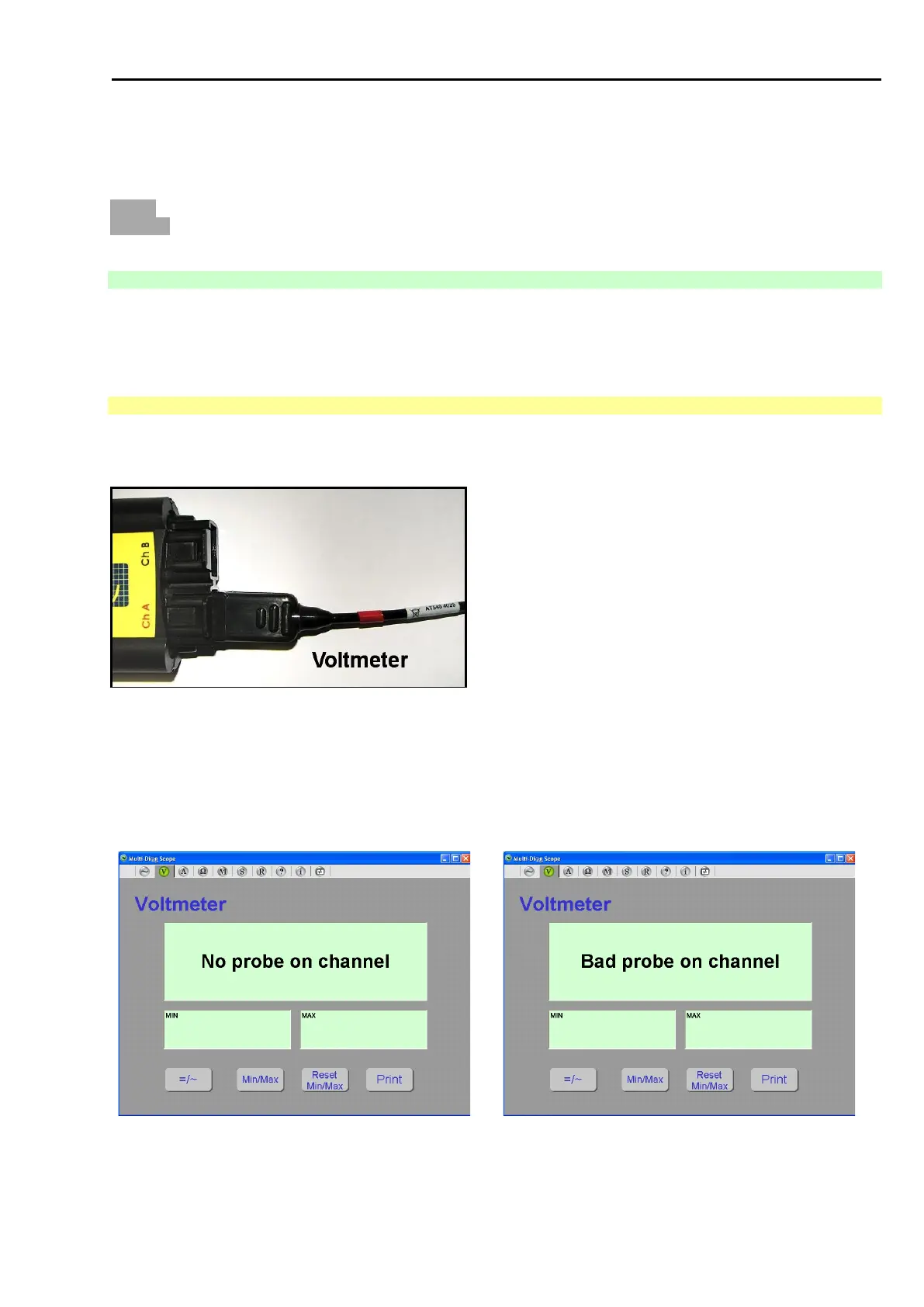

Fig. 86 – Oscilloscope cable (probe) connected to Channel A input for voltmeter measurement

Notes:

a) Oscilloscope cable can be connected to both Channel A and Channel B for oscilloscope measurement

b) No probe on channel warning message is displayed if oscilloscope probe is not properly connected

(see Fig. 87)

c) Bad probe on channel warning message is displayed if other probe is connected (see Fig. 88)

Fig. 87 – Multi-Diag Scope as voltmeter when no measurement

probe is connected (figure applies to version 7.2.4)

Fig. 88 – Multi Diag Scope as voltmeter when bad measurement

probe is connected (figure applies to version 7.2.4)
