Chap. II - Multi-Diag Motortester

Scope_manual_en-v110.docx — 58 —

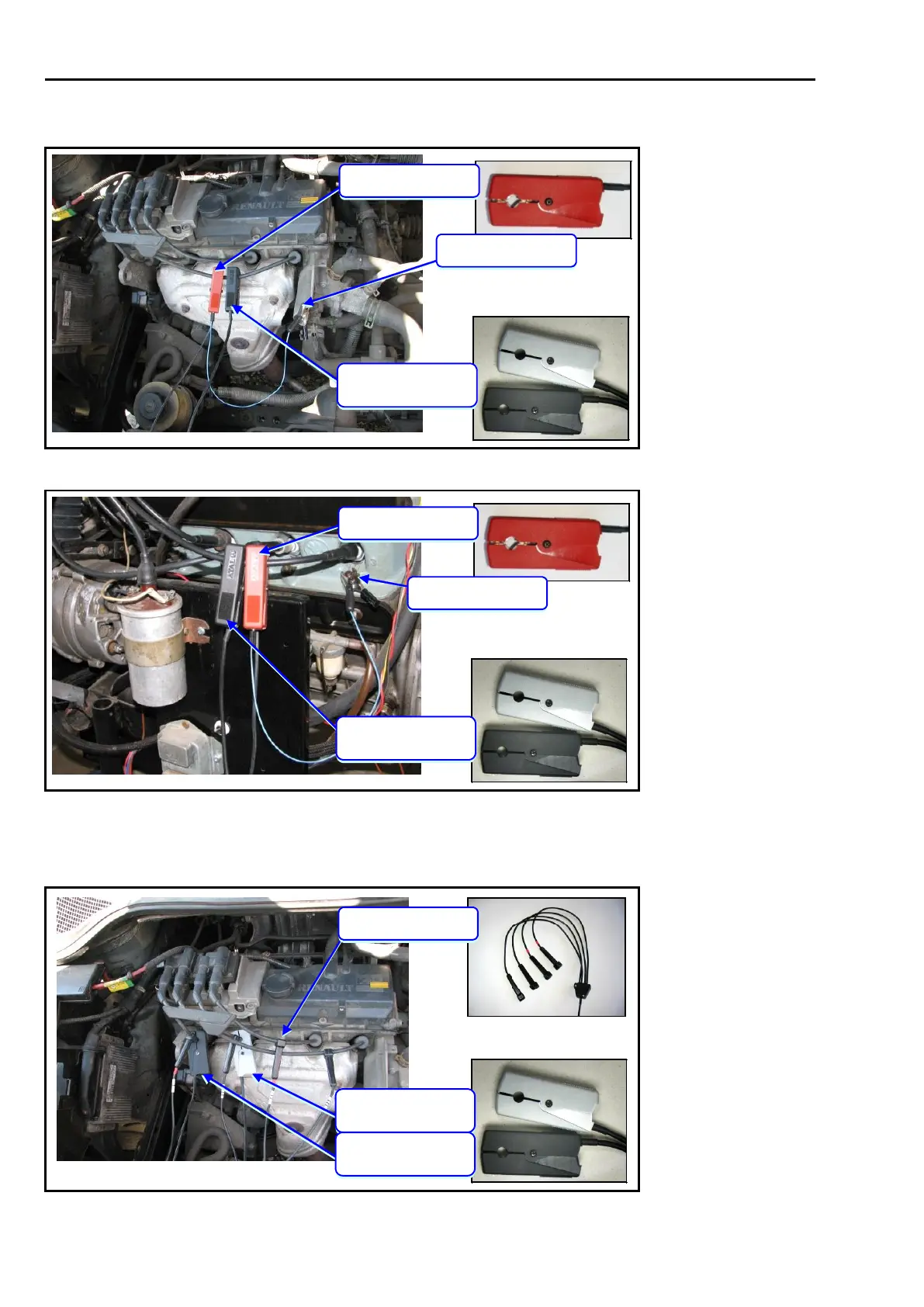

5.4.2.1 PROBE CONNECTION FOR ONE CYLINDER MEASUREMENT

Ignition sensors N2

(black color)

Probe grounding

HV sensor N

Fig. 130 – HV measurement on one cylinder - twin-spark coil with cables (HV probe type N and black ignition probe of type N2)

Ignition sensor N2

(black color)

Probe grounding

HV sensor N

Fig. 131 – HV measurement on one cylinder - system with distributor (HV probe type C4 and black ignition probe of type N2)

5.4.2.2 PROBE CONNECTION FOR ALL CYLINDER MEASUREMENT

HV sensor C4

Ignition sensor N2

(gray color)

Ignition sensor N2

(black color)

Fig. 132 – HV measurement on all cylinders - twin-spark coil with cables (HV probe type C4 and double ignition probe type N2)
