Actia Multi-Diag Scope User Manual

Chap. II - Multi-Diag Motortester
Scope_manual_en-v110.docx — 69 —
6.5 OSCILLOSCOPE
This function is identical with the function described in Chap. I - 5.6.
6.6 SPEED MEASURING OSCILLOSCOPE
This function is identical with the function described in Chap. I - 5.7.
7. ENGINE AND SENSOR PARAMETER SETTING (MOTORTESTER DEFAULT SETUP)
As already mentioned in Chap. I - 5.1, Chap. I - 6.1 and Chap. I - 5.4.4.3, it is necessary for some measurements
to set the parameters of the engine and sensors. The . function button is available in the
measurements requiring this setting (see Fig. 117 or Fig. 154)
By pressing this button, a new MOTORTESTER SETUP menu appears.

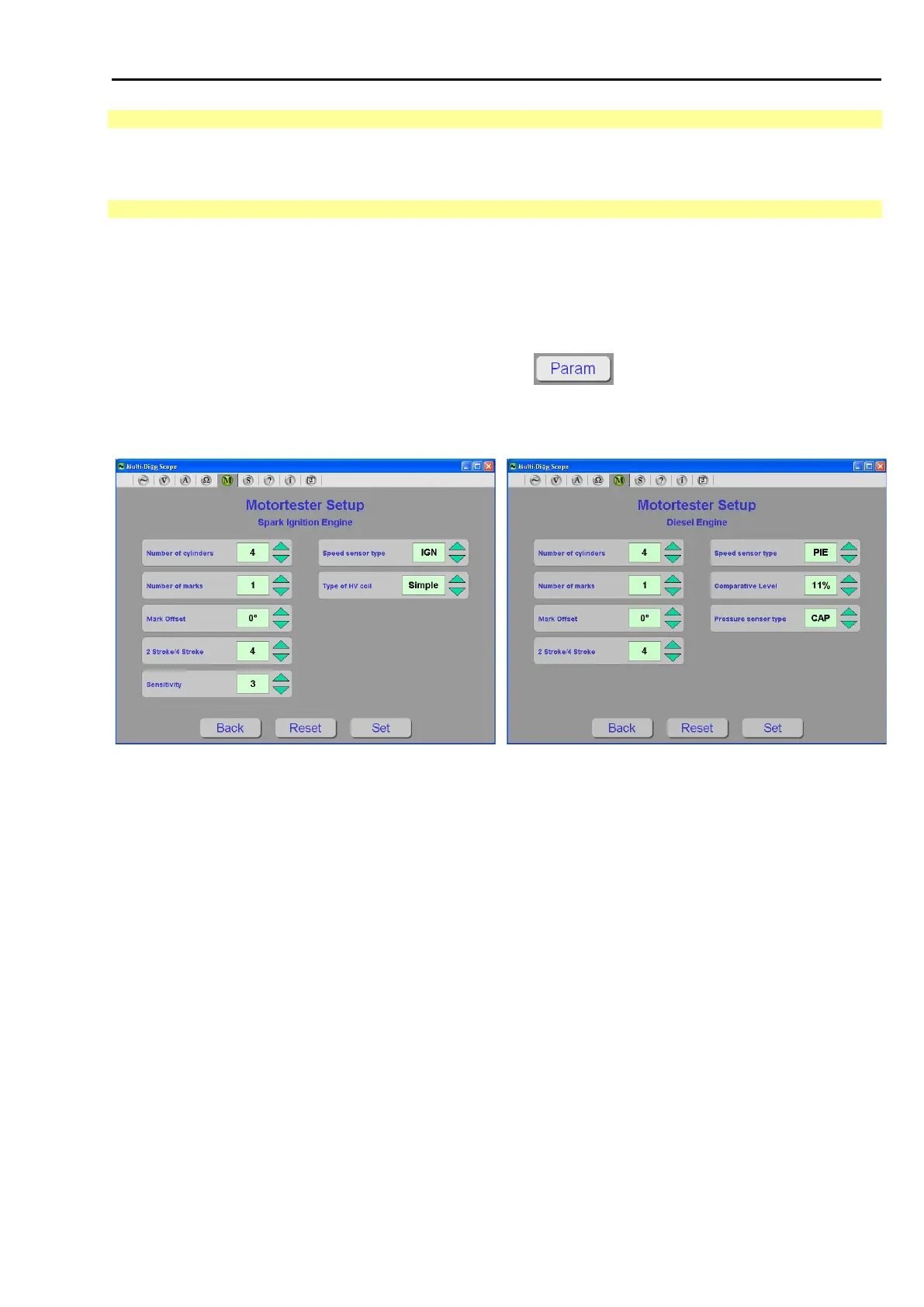

Fig. 157 – Default setup of Motortester parameters after switching on the device for spark ignition engines or diesel engines
Note:
Each time the device is switched on, the described parameters are set up to basic values (see Fig. 157).
If modified, the changed values are maintained till the device is switched off, no matter what measurements are
made.
