Actia Multi-Diag Scope User Manual

Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 7 —
9. SOFTWARE INSTALLATION
9.1 DESCRIPTION OF INSTALLATION CD AND ITS RUNNING
The attached CD contains all the necessary software for the use of Multi-Diag Scope system including the
accompanying files such as user’s manuals, prospectuses.
Insert the CD in your CD-ROM drive. If the CD does not run automatically, run the MultiScopeInstall program
which you will find on the CD.
9.2 INSTALLATION OF MULTI-DIAG SCOPE PROGRAM
If you install the program on the computer with Windows 2000/XP/Vista/7/8.1/10 operation system, log in
as a system administrator.
The installation is intuitive, guided by an installation wizard displayed on the PC screen.
The installation may take several seconds. Click on “Finish” to complete the installation.
The pre-installation of drivers for the RS232-USB converter starts after its completion (see Chap. I - 10.2.1)
Note:
The default language of the Wizard is English but it can correspond to your language version of Windows
9.3 PROGRAM CONFIGURATION
Before the configuration program start you shall:
a) exit the Multi-Diag Scope program
b) install the USB to RS 232 converter
c) connect correctly the communication cable
The configuration utility is started by clicking on the Multi-Diag Scope configuration from Start menu –
Programs – Multi-Diag and select desired port (see Fig. 10).
After appropriate activation starts dialog to configure
Multi-Diag Scope (see Fig. 11).

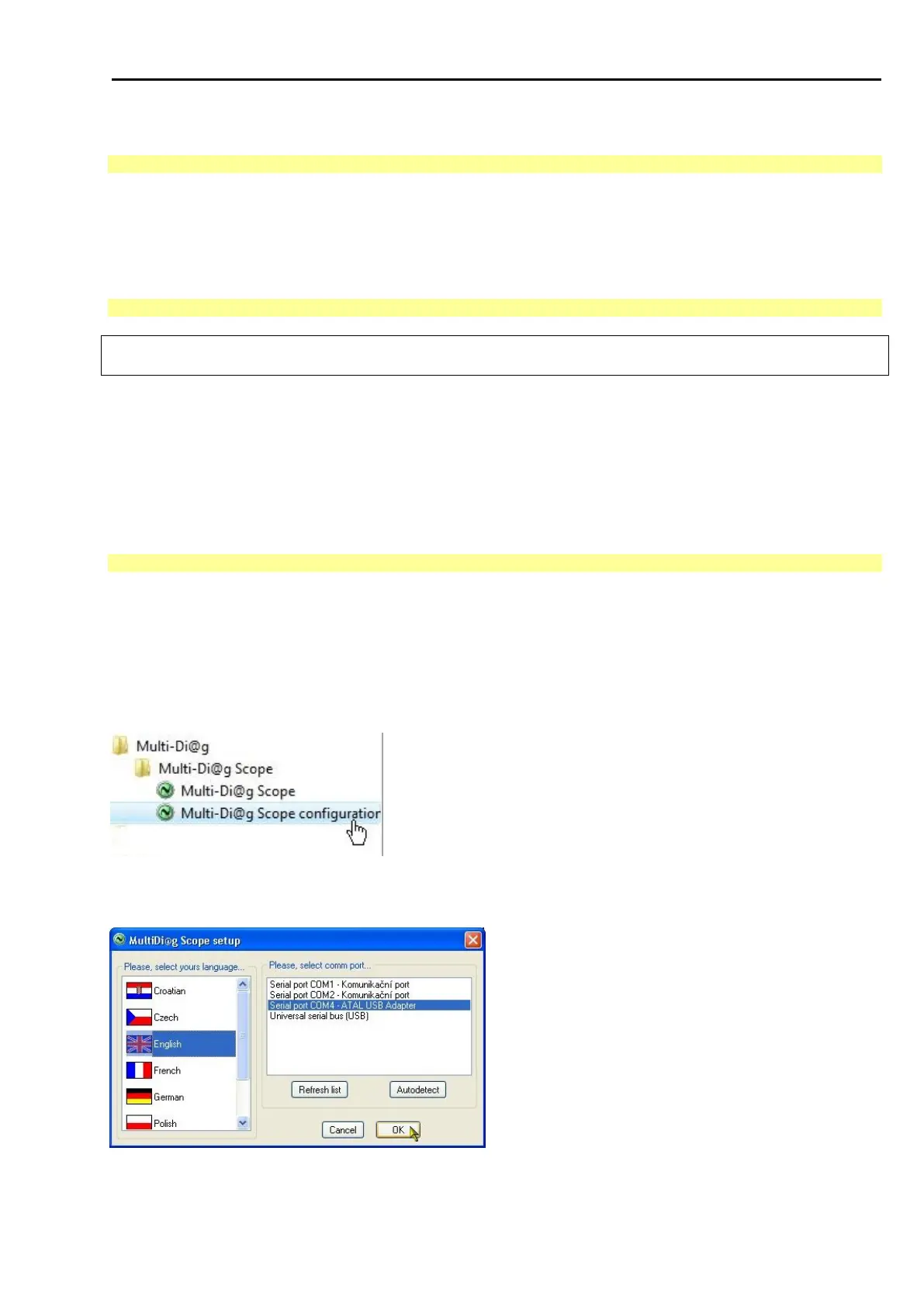

Fig. 10 – Starting the configuration utility for the converter communication setup from Start menu – Programs – Multi-Diag (Windows
Vista)
Fig. 11 – Multi-Diag Scope configuration dialogue box
