Actia Multi-Diag Scope User Manual

Chap. I - Multi-Diag Scope Basic User’s Manual
Scope_manual_en-v110.docx — 33 —

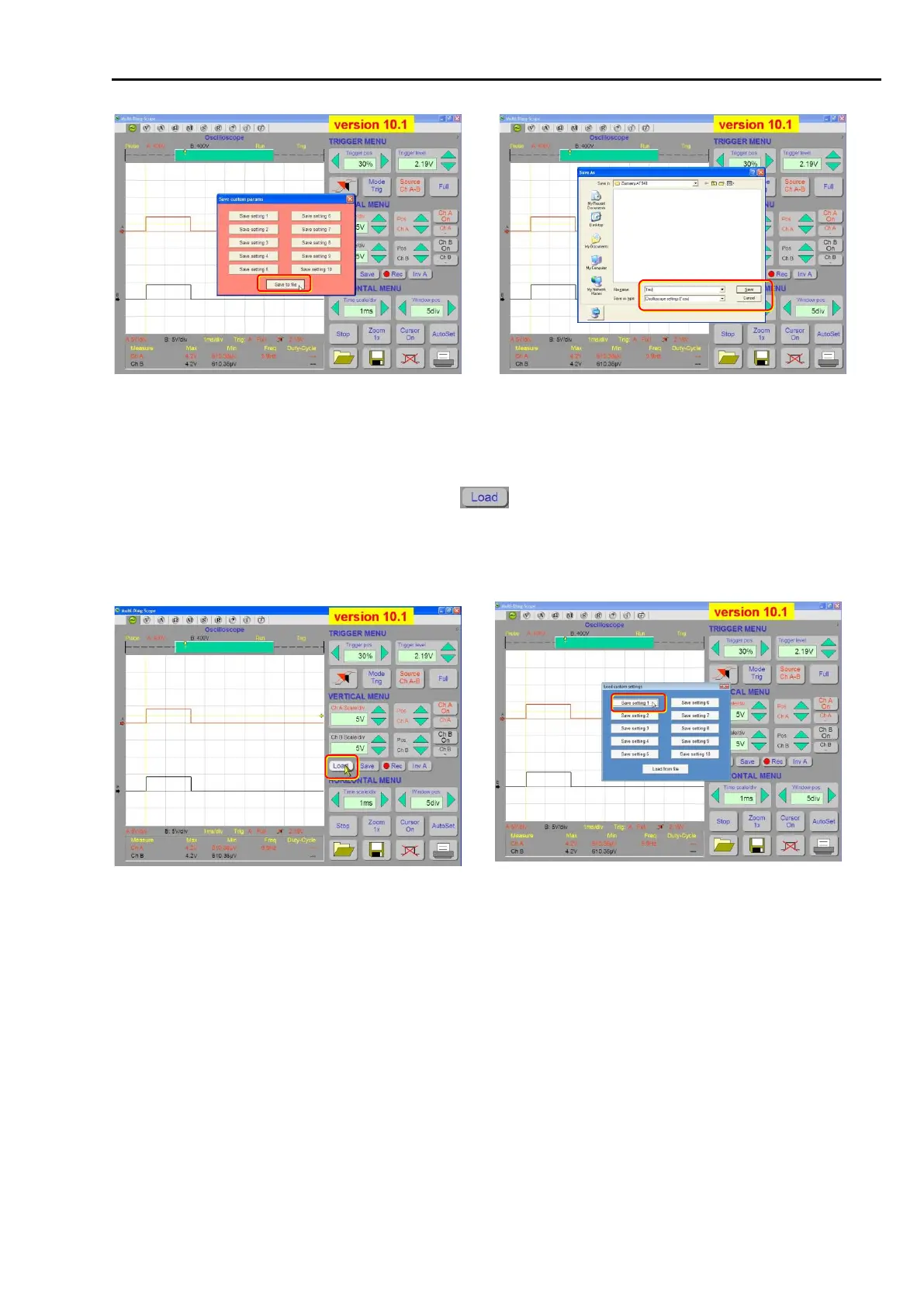

Fig. 75 – When you click this option, you can save the setup e.g. to
your Hard-Disk
Fig. 76 – Name your setup (e.g. Test) and save the change
B. USER SETUP LOADING OPTIONS
Run the user setup loading function by clicking the button (see Fig. 77).
You can choose from two loading options:
 Fast – from application
Click one of the ten positions to load the setup – see Fig. 78.
Fig. 77 – Loading the oscilloscope user setup
Fig. 78 – Choose one of the ten positions to open the setup
 Permanent – from file
If you choose this option, you can load the oscilloscope setup from a file (e.g. Test.oss) from a storage
device (Hard-Disk, Flash-Disk, etc.) - see Fig. 79 and Fig. 80.
