GB 04708 - Edition 03 - March 12
7/15
C 406
Advanced Menu

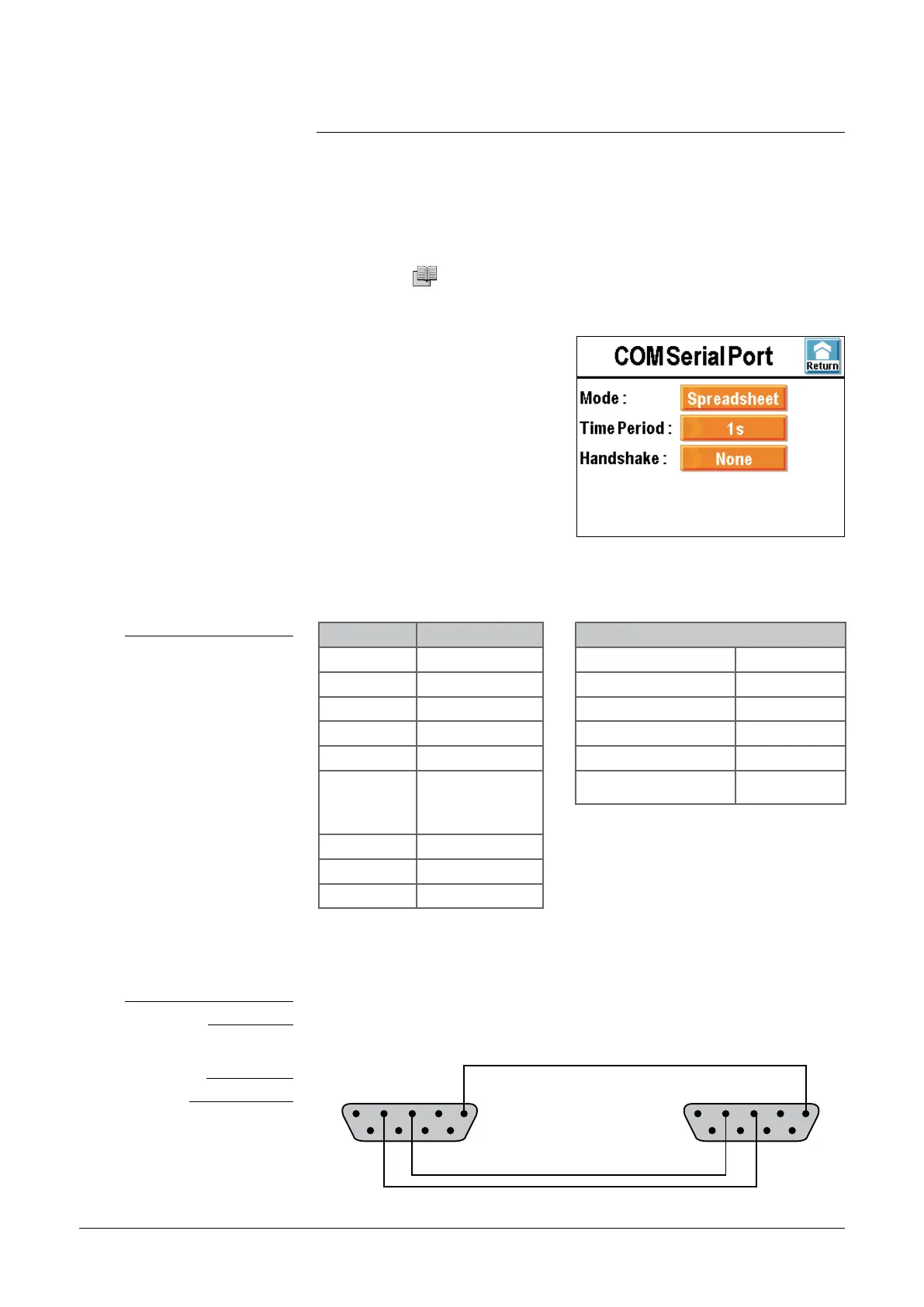

Printer mode The Printer interface makes it possible to connect the leak detector
to a printer.
The tickets of communication are printed.
1 5
6 9
1 5
6 9
Leak detector
Printer serial port
Pin Function Communication protocol
1 RS 485 V- Mode
Asynchronous
2 Rx Bauds 9600
3 Tx Bits 8
4 RS 485 V+ Parity None
5 Ground Stop bit 1
6 120 Ω class
to connect to
RS 485 V-
Parity control None
7 Not used
8 Not used
9
+ 5 V ; 500 mA
Communication mode
description
Connection
to the printer
Connector description
Input/Output:
COM serial port
Refer to the RS 232 specific
operating manual delivered
with your leak detector.
Basic/Speadsheet/
Advanced modes
Connection:
B 300
adixen Vacuum Products - ASM 310 Operating instructions
