Adixen ASM 310 - Remote Control (Accessory)

GB 03337 - Edition 02 - July 2011
1/3
C 700
Remote control (accessory)
The remote control is equipped with magnets allowing the operator
to place it on a metallic surface. The operator can read the helium
signal and has access to control keys such as cycle command,
autocalibration and auto-zero.

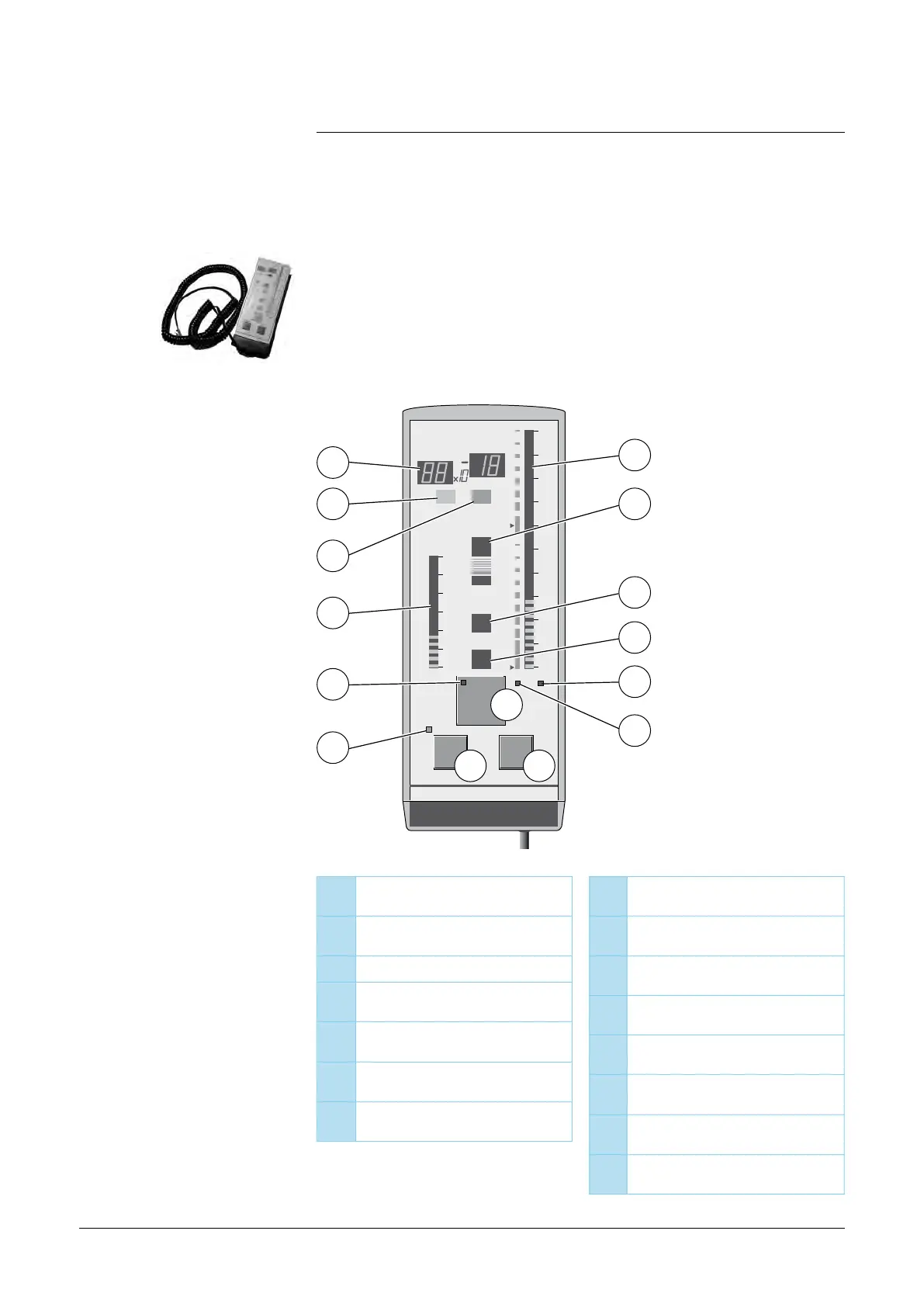

Interface
10
mbar mbar.l/s
-3
10
-12
10
-11
10
-10
10
-9
10
-8
10
-7
10
-6
10
-5
10
-4
10
-3
10
-2
10
-2
10
-1
1
10
1
10
2
10
3
CYCLE
INLET
VENT
SNIF
HIGH
TEST
ZEROCOR
AUTO CAL ZERO
7
5
4
3
2
1
14
13
12
11
10
9
6
8 15
1
Helium Signal digital
display
2
Correction factor COR
indicator
3 Zero function indicator
4
Inlet port pressure analog
display
5
Test ON indicator (ON
when activated)
6
Test Start/Stand-by control
key
7
Calibration in progress
indicator
8
Auto-calibration Start/
Stop control key
9
Helium signal analog
display
10 Test ON indicator
11
Sniffing test mode ON
indicator
12 Inlet VENT ON indicator
13
Helium signal standard
scale ON indicator
14
Helium signal Zero scale
ON indicator
15 Zero ON/OFF control key
