Adixen ASM 310 - Standard Display

GB 03292 - Edition 03 - March 12
3/7
C 200
Control panel

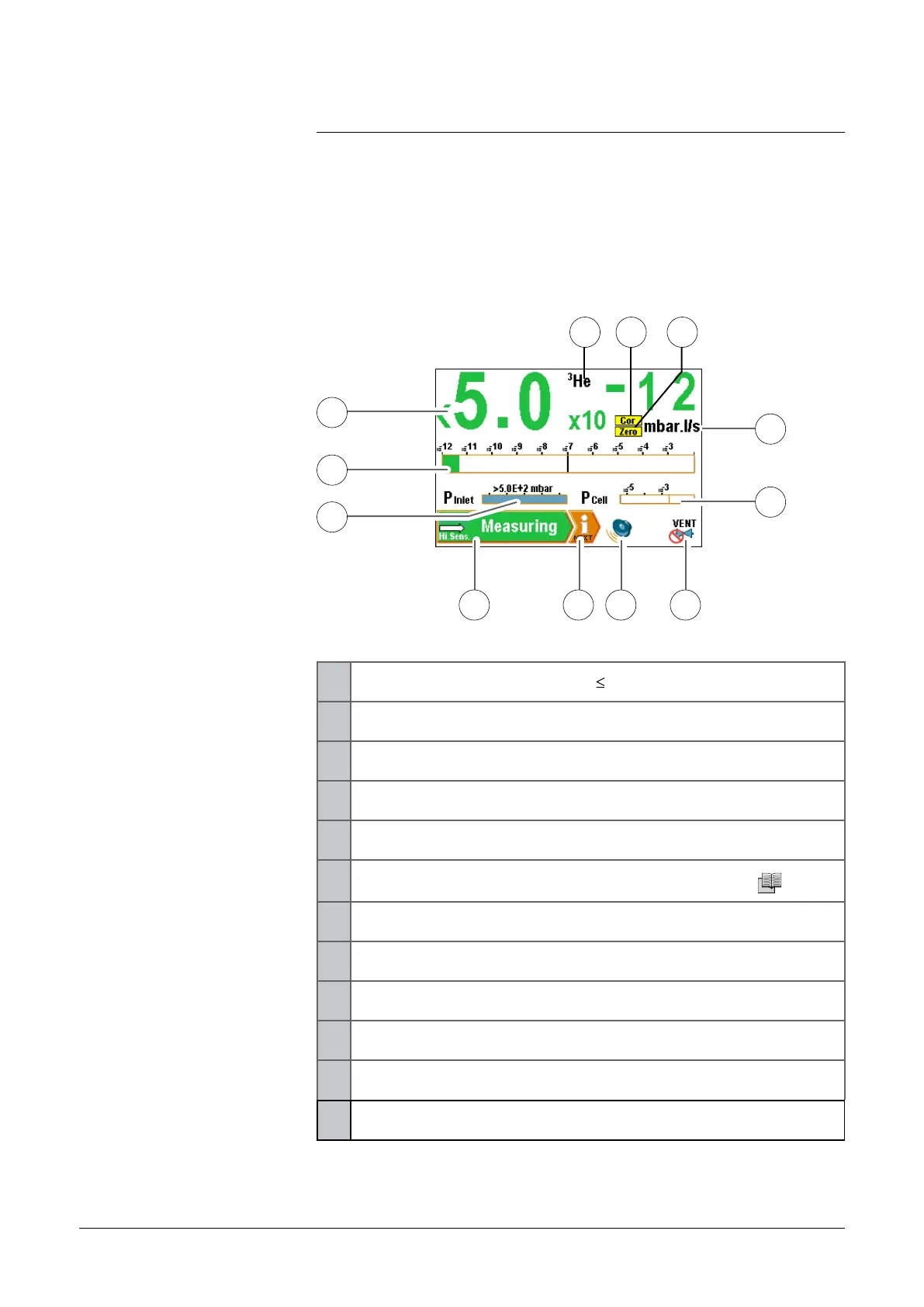

Standard display Display most generally used to do a test.
4
8
1
2
5 6
7
11
3
9
12
10
1 He signal digital display (green reject set point < red)
2 He signal bargraph display (adjustable scale)
3 Detector state and detection mode
4 Default information access
5 Mute function activated/desactivated indicator
6
Inlet vent function activated/desactivated indicator
( C 402)
7 Cell pressure bargraph display
8 Measure unit of the leak flow
9 Signal correction function activated indicator
10 Zero function activated indicator
11
Detector inlet pressure display (coherent unit with the leak
flow unit)
12 Tracer gas (if
3
He or Hy)
