C 300
Graphic display
GB 03344 - Edition 04 - March 12
Setting

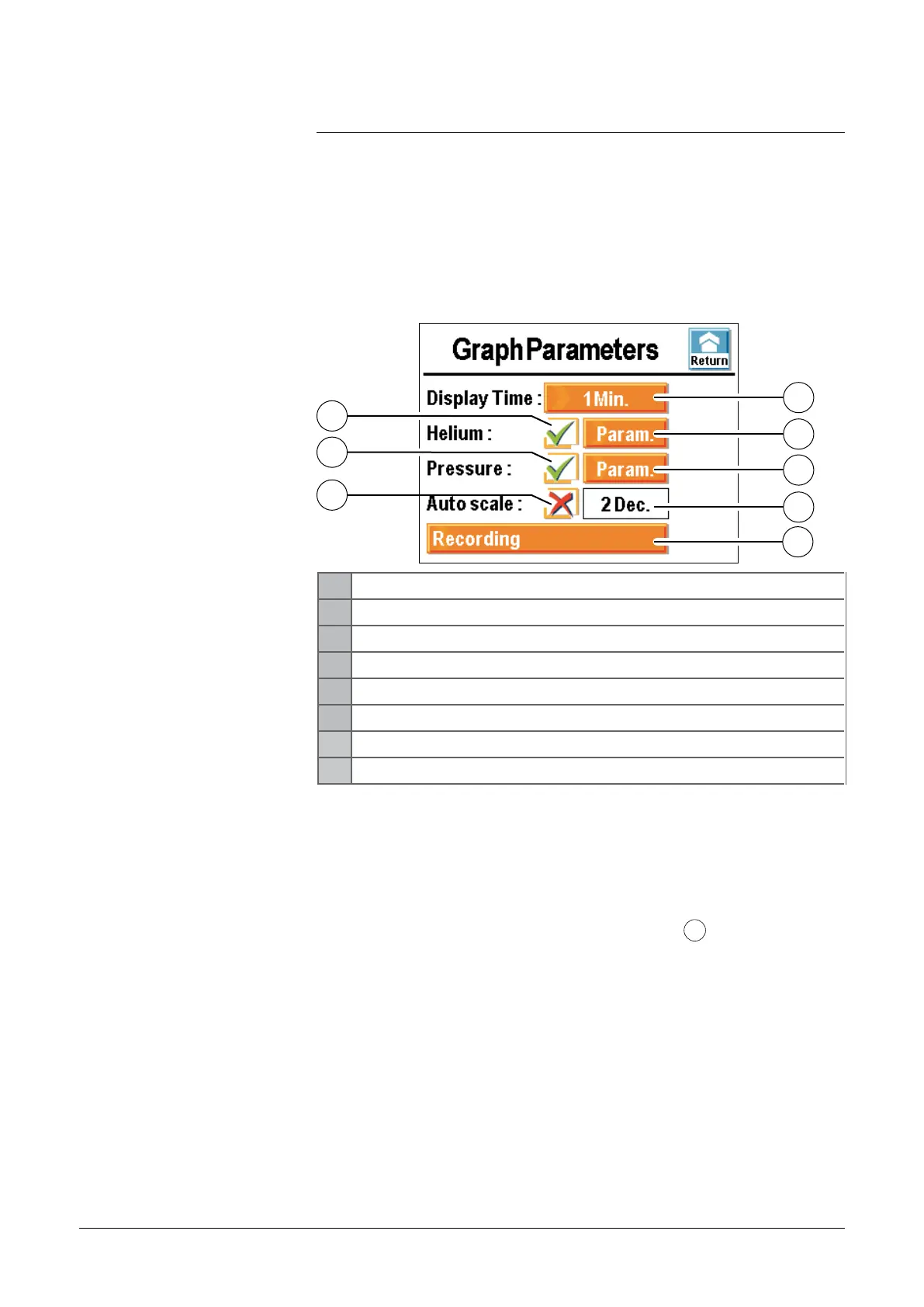

Access to the graph setting menu by pressing on the graph.
Display
1 Display/mask the measured signal
2 Display/mask the inlet pressure
3 Recording time parameters
4 Inlet pressure scale parameters
5 He signal scale parameters (if automatic scale deactivated)
6 Screen display time speed
7 Activate/Deactivate automatic scale
8 Automatic scale setting
4
1
2
7
5
6
8
Automatic scale allows displaying measured signal centred on 2 or 4
decades.
Scale moves in function of measured signal. If automatic scale is set,
it is no more possible to set the He signal scale (
1
):
Example : He signal = 5 · 10
-7
mbar l/s
y automatic scale 2 decades  scale from 5 · 10
-6
to 5 · 10
-8
mbar l/s
y automatic scale 4 decades  scale from 5 · 10
-5
to 5 · 10
-9
mbar l/s
Automatic scale
3
