Mount the unit at least 10 cm away (and preferably as far as possible) from sources of dynamic magnetic
interference such as high current wiring or large motors for best performance.

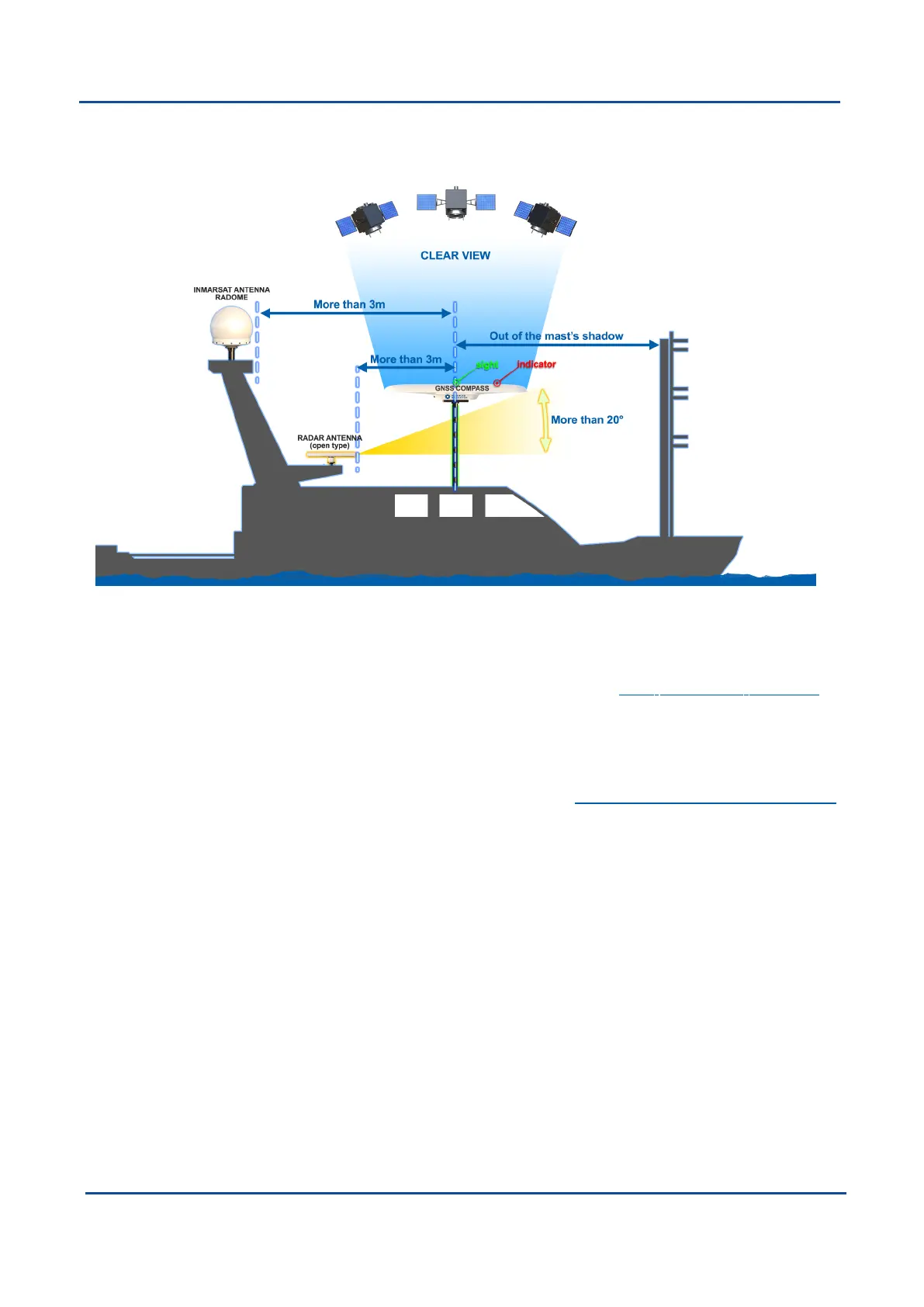

Figure 9: Mounting Location example
6.2.2 Mounting Options
The GNSS Compass can either be pole mounted, or surface mounted. See 5.2.3 Mechanical Drawings for
details
6.2.2.1 Pole mounting
If pole mounting the unit, connection is via a single 1-14 UNS-2A thread. The provided 1" nylon and 1" locking
nut should be used to mount to a suitable mounting pole as illustrated in Figure 10: Pole mounting assembly
