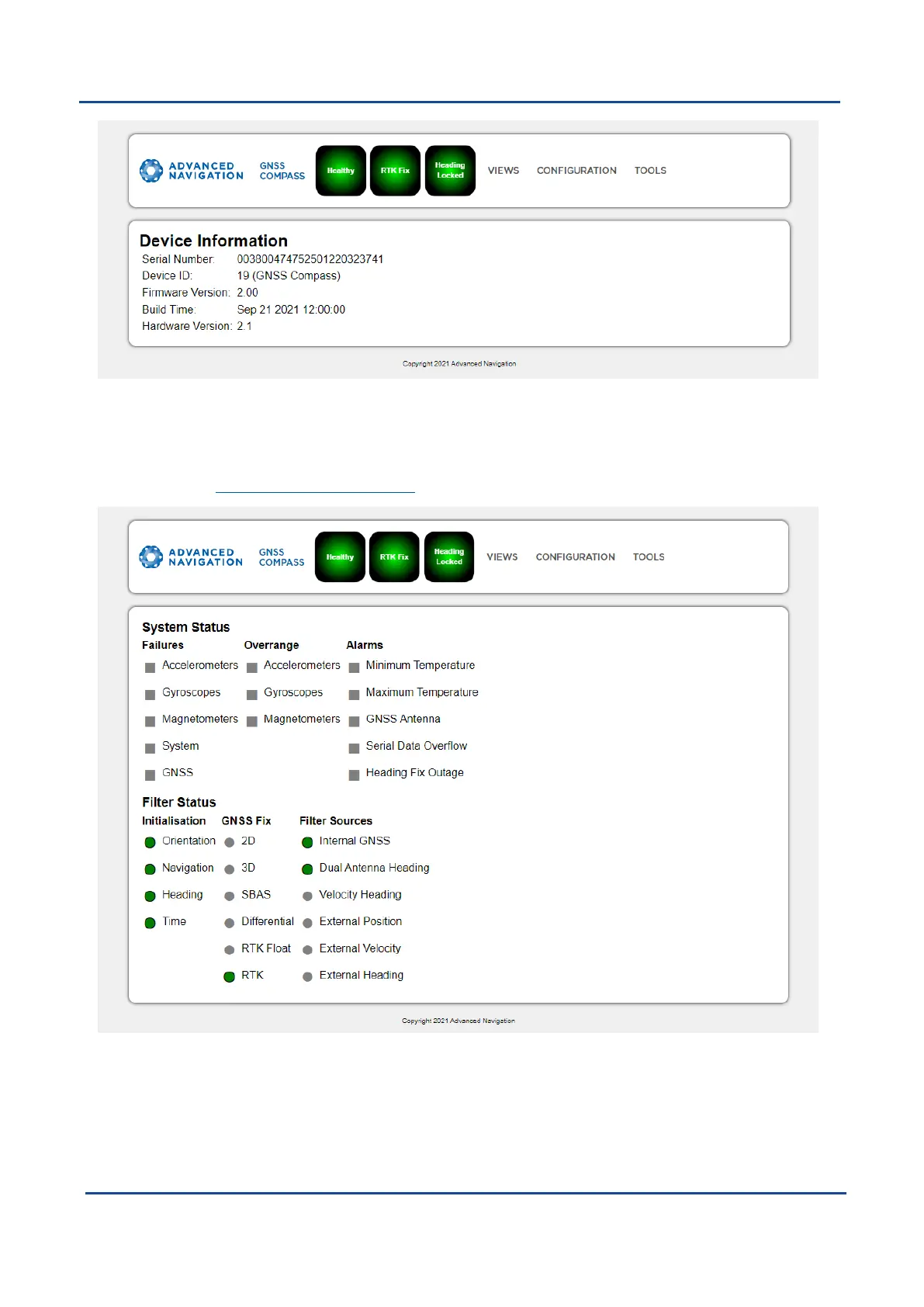

Figure 19: GNSS Compass Web UI Device Information Page
8.1.2.3 Status
The Status page shows the current status of GNSS Compass as reported by the System State packet (ID #20)
detailed in section 10.4.1 System State Packet.
Figure 20: GNSS Compass Web UI Status Page
8.1.2.4 Satellites
The Satellites page shows detailed information on the satellites that are visible to both antennas of the GNSS
Compass GNSS receiver. The information is displayed as a satellite skyplot, a table and an SNR graph. A
v2.0 Page 41 04 Nov 2021
GNSS Compass Reference Manual • Configuring and Monitoring GNSS Compass
