Figure 12: GNSS Compass alignment
Install the unit such that the X+ axis points forward towards the front of the vehicle and the Z+ axis points
straight down towards the ground as shown below.

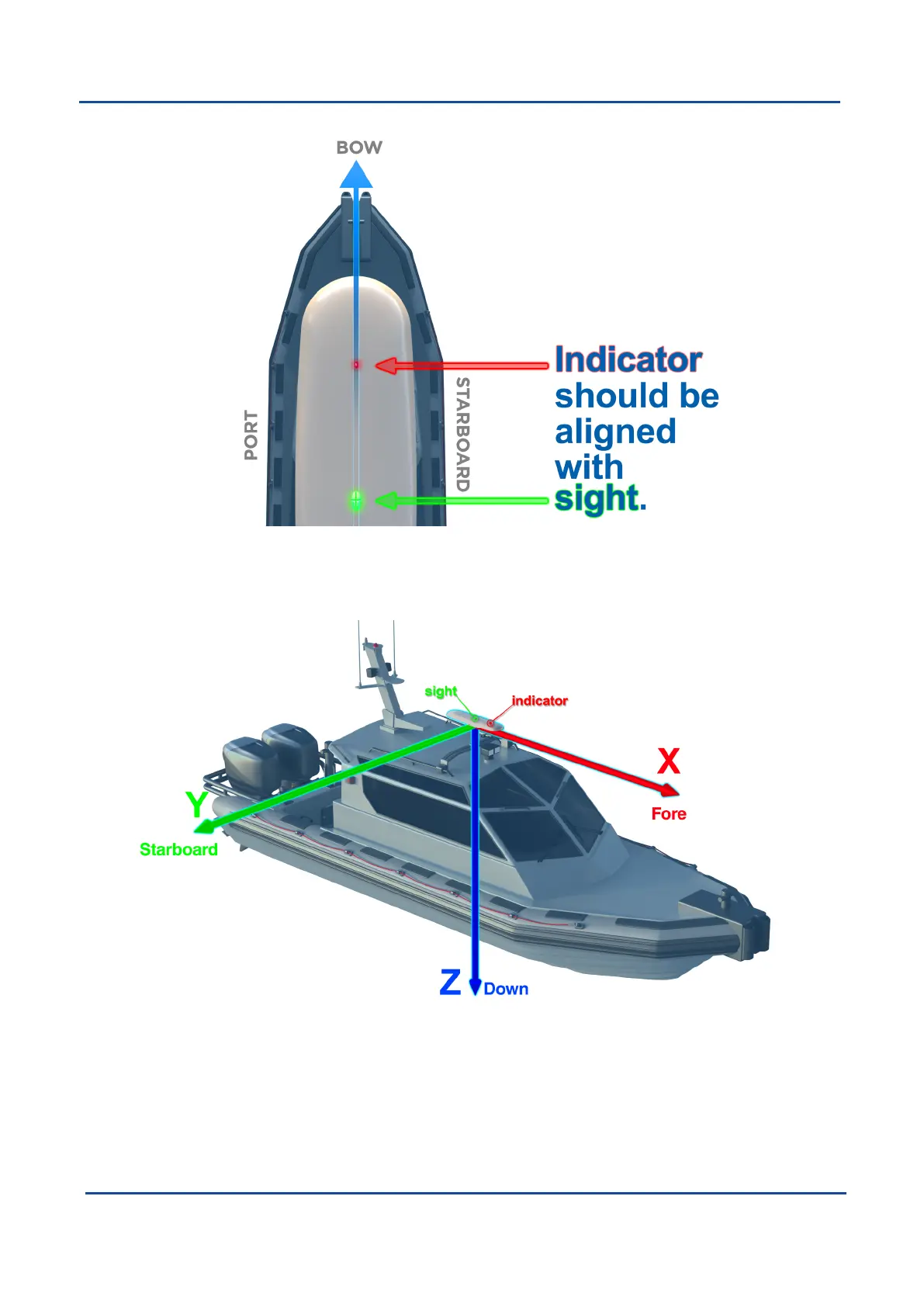

Figure 13: Alignment on a boat
