LAG Port Settings
The LAG Port Settings page allows you to enable or disable, set LAG status, speed and flow
control functions.
In this example we will configure a LAG between the following switches:
To access this page, click L2 Switching > Link Aggregation > LAG Port Settings.

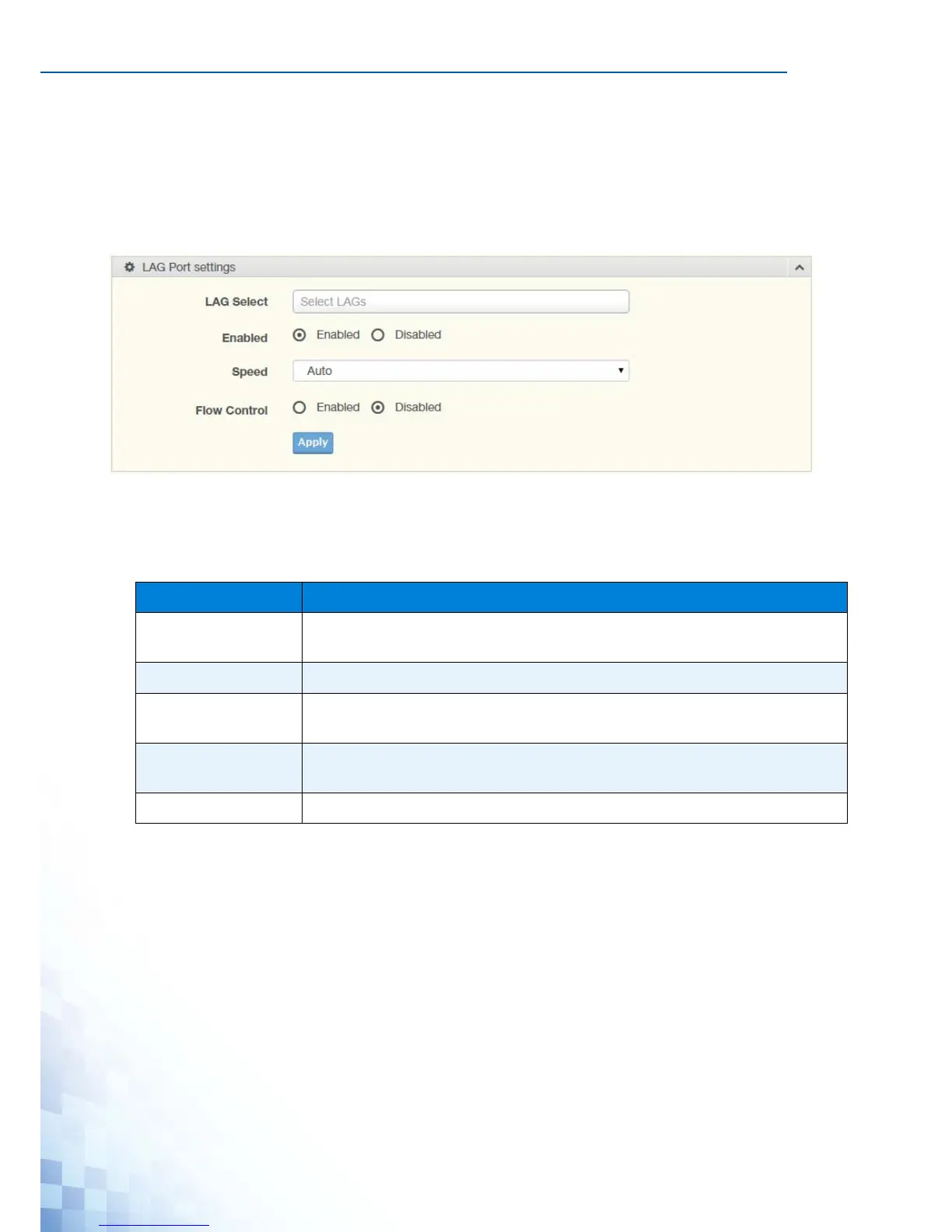

Figure 4-19. L2 Switching > Link Aggregation > LAG Port Settings
The following table describes the items in the previous figure.
The ensuing table for LAG Port Status settings are informational only: LAG, Description,
Port Type, Enable State, Link Status, Speed, Duplex, FlowCtrl Config and FlowCtrl Status.
Table 4-17. L2 Switching > Link Aggregation > LAG Port Settings
Item Description
LAG Select Click the drop-down menu to select a predefined LAG trunk definition: LAG
1-8.
Enabled Click the radio button to enable or disable the LAG Port.
Speed Click the drop-down menu to select the port speed: Auto, Auto-10M, Auto-
100M, Auto-1000M, Auto-10/100M, 10M, 100M, or 1000M.
Flow Control Click the radio button to enable or disable the Flow Control for the LAG
Port.
Apply Click Apply to save the values and update the screen.
