86 Firmware Version 5.2
• Measure and enter the vertical height of the antenna above the ground.
Note: Accuracy when measuring for a specific setting is essential to ensure proper machine performance.
HITCH TAB SETTINGS TAB
The Hitch Tab allows you to enter in the distance from four different mounting positions on the tractor to
the rear axle. Press to enter these values in if using the hitch point.
Note: Accuracy when measuring for a specific setting is essential to ensure proper machine performance.
MOUNT TAB SETTINGS (FOR SOME APPLICATION VEHICLES)
The Mount Tab will only be available when using a self-propelled application sprayer or spreader. This
allows you to enter in the application location from the rear axle. Press to enter in the distance
and the drop-down box to select if it is in front or behind of the axle.
HEAD TAB (FOR HARVEST VEHICLES)
The Head Tab allows you to enter in the distance from the head attachment point to the rear axle. Press
to enter the distance to the axle.
SWATH SECTION OFFSETS

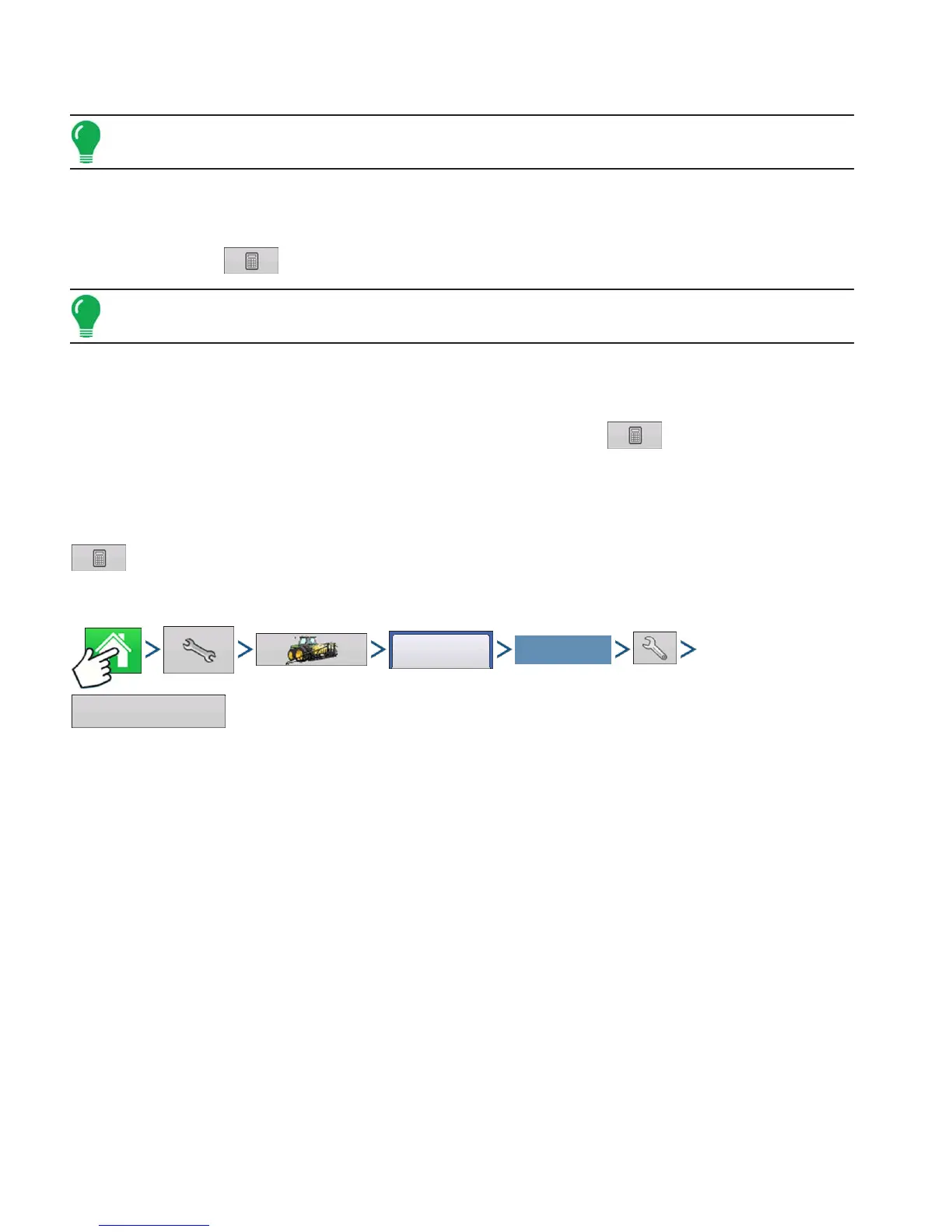

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select
your specific configuration > Setup (wrench) button > Offsets button
The Implement Offsets screen opens. Depending upon your configuration, this screen may consist of up
to two tabs: the Section Offsets Tab and the Hitch Offsets Tab.
Configuration
Select Your Specific
Configuration
Offsets
To Next Page
