• Response Threshold
Determines where the control channel switches between using Valve Response 1 and Valve Response 2
speed settings. The default setting is 3. Leaving all other valve control settings at the default value and
making a small adjustment to this setting is usually all that is required to fine-tune system performance.
- Decreasing this value will have the overall effect of speeding up servo valve response.
- Increasing this value will have the overall effect of slowing servo valve response.
Calibrate Pressure

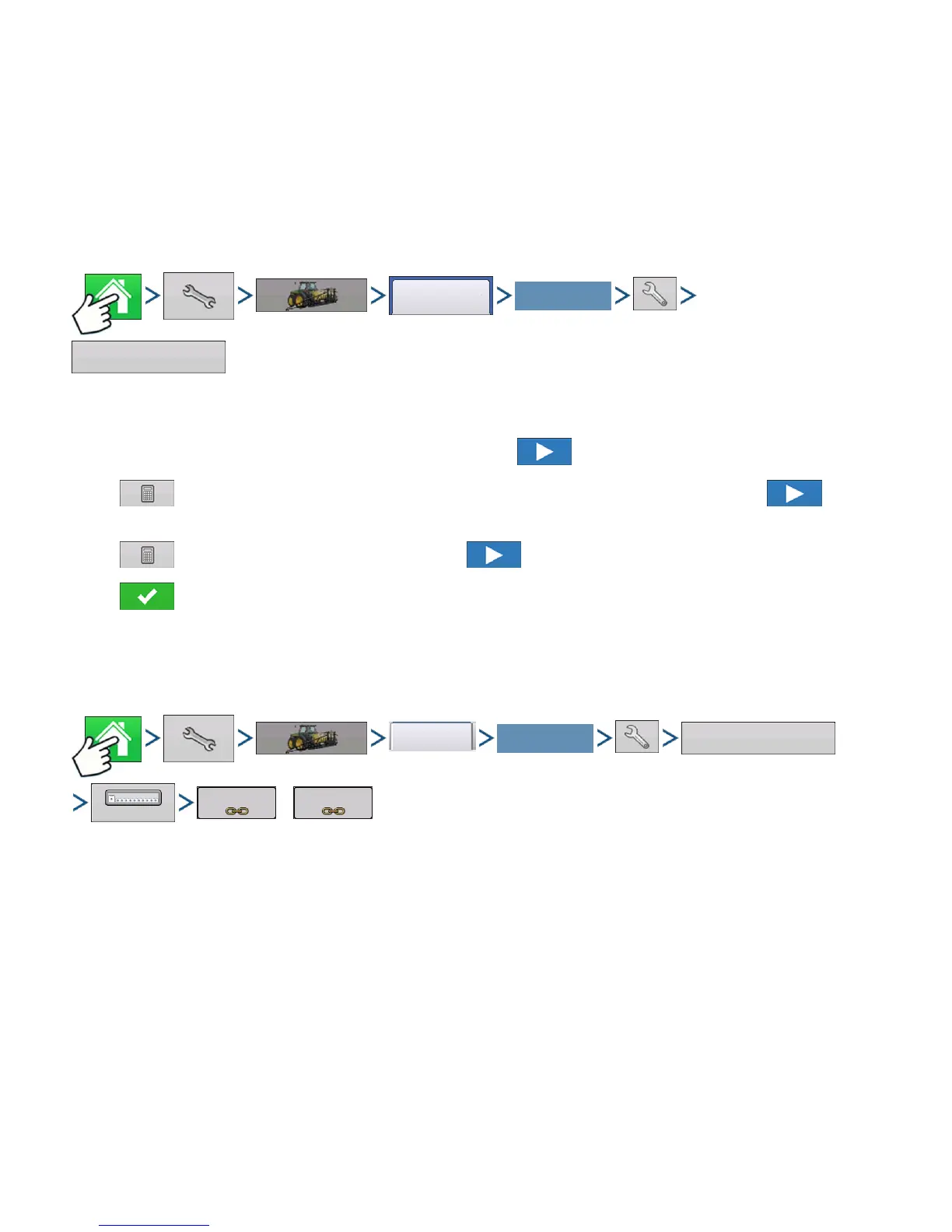

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select
your specific configuration > Setup (wrench) button > Calibrate Pressure button
Choose Main, Agitation or Aux from drop-down box. Press to continue.
Press to enter pressure value as a set point or press Reset to Default button. Press to
continue.
Press to enter voltage/pressure ratio. Press to continue.
Press to finish process.
.FENCE ROW NOZZLE INDICATORS
Control fence row nozzles through the DirectCommand system by mapping the switches in Auxiliary
Input Settings. Fence row nozzles can be mapped to any switch.
or
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select
your specific configuration > Setup (wrench) button > Auxiliary Input button > Assign button > Left Fence
Row or Right Fence Row. For more information on Auxiliary Input Settings, see
“Auxiliary Input” on
page 82.
Configuration
Select Your Specific
Configuration
Calibrate Pressure
Configuration
Select Your Specific
Configuration
Auxiliary Input
Assign
Left Fence Row
Right Fence Row
