GENERAL
INSTALLATION
GENERAL
INSTALLATION

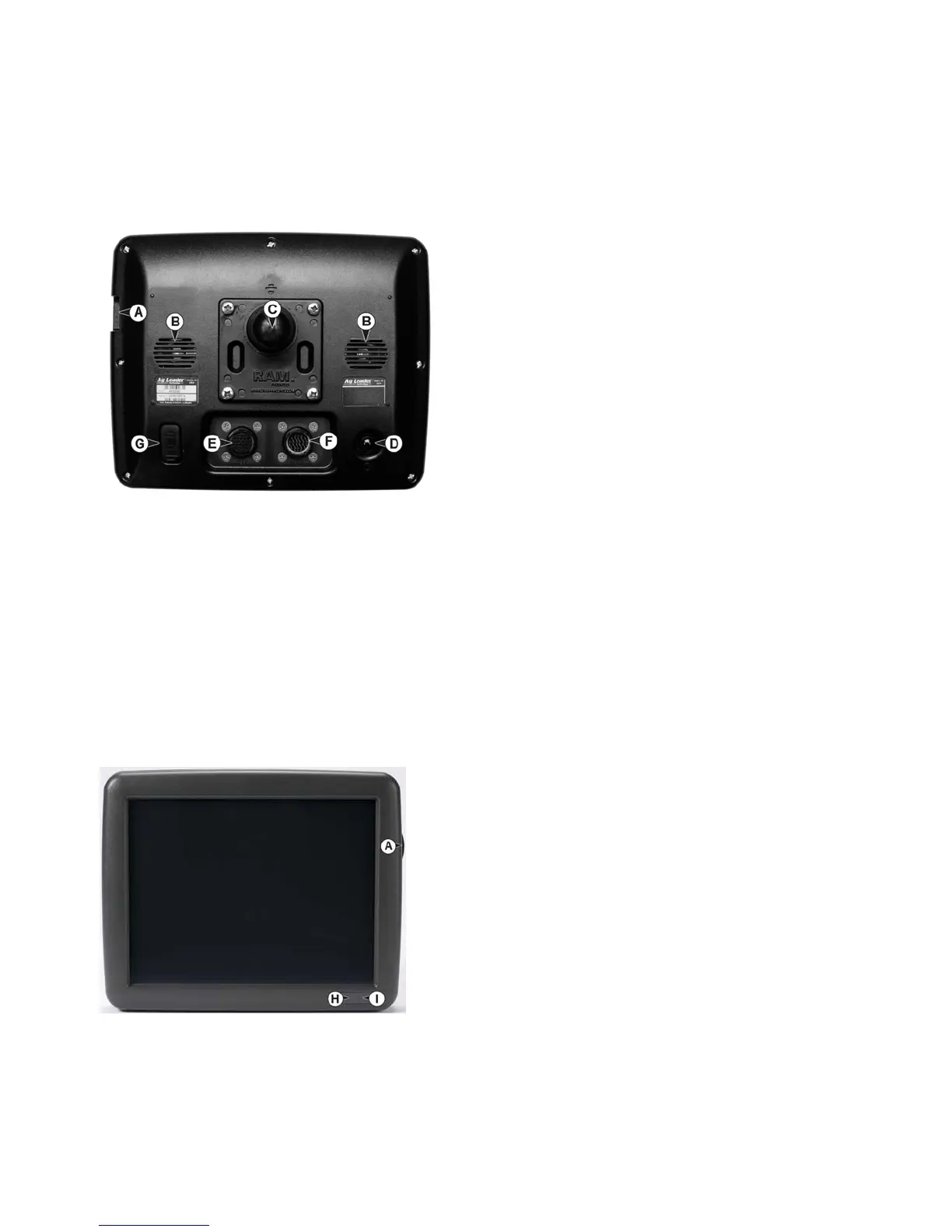

DISPLAY HARDWARE
• (A) USB media slot
Used for data transfer in and out of the display.
• (B) speaker
The built-in speaker is used for audible warnings. The volume
can be adjusted through the display setup routine.
• (C) RAM mount
• (D) Power/Reset switch
The Power/Reset switch is used for turning the display on and
off in installations where the system is connected to a
continuous power supply. If the display ever stops
responding, the manual power switch may be held in for five
seconds to restart the system. Only do this as a last resort, data loss could occur during times of improper
shutdown.
• (E) 28-pin auxiliary connection
Used for camera input.
• (F) 28-pin plug
The 28-Pin round connector contains CAN, RS-232 serial, and system power and ground connections. It is
compatible with other Ag Leader displays. Ethernet for ParaDyme and GeoSteer automated steering is
included in connection.
• (G) VGA video output
Can be used to connect to a video projector for demonstration purposes.
• (A) USB media slot
• Used for data transfer in and out of the display.
• (H) Light sensitivity sensor
Used to automatically dim the display during nighttime or low-light
situations.
• (I) Power light
The power light displays one of three states: When it is green the
display is on; when it pulses amber the display is in Standby
Mode, and when it is solid amber the display is running on battery
power.
INSTALLATION INSTRUCTIONS
All machine installation and mounting kits are shipped with instructions specific to that kit. Instructions
include special details relating to mounting, wiring and display configuration.
