Ag Leader Technology Integra User Manual

60 Firmware Version 5.2
Active Area
Work Area Headlands All

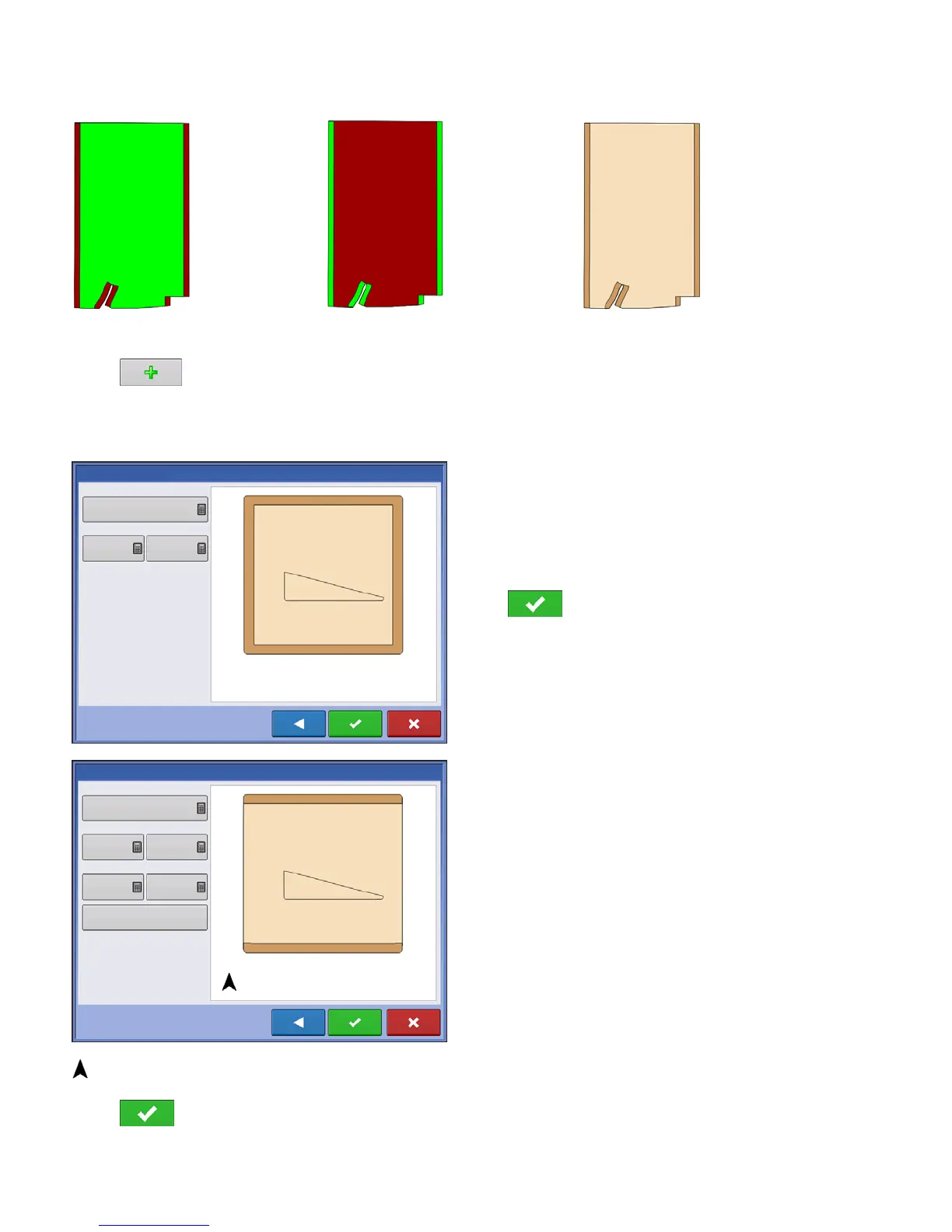

Add a Headland
Press on Headlands Options screen.
Select Headland Type from drop-down box.
Headland Types
All-Around
Offset Implement Width - number of implement
widths used to set the headland width
Offset Distance - distance used to set headland
width.
Press to accept.
Top Bottom
Offset Implement Width - number of implement
widths used to set the headland width
Offset Distance - distance used to set headland
width.
Heading - used to generate boundary, headlands
are created perpendicular to heading
Scaling - sets the amount of variation that is allowed
(from perpendicular) to include part of field boundary
in the headlands
Use AB - select AB line to set heading for
determining headlands
Shows the heading used for Headland creation.
Press to accept.
Product will
be applied to
main section
of field.
AutoSwath
will turn off
product on
headlands.
Product will
be applied to
headlands of
field.
AutoSwath
will turn off
product on
main section
of field.
AutoSwath
will not be
affected by
headlands.
Offset Implement Widths
New Headlands
2
Offset Distance
80
0
Offset Implement Widths
New Headlands
2
Offset Distance
80
0
Heading
0
Scaling
7.8
Use AB
