SETUP
FIELD OPERATIONS
Map Legend tab

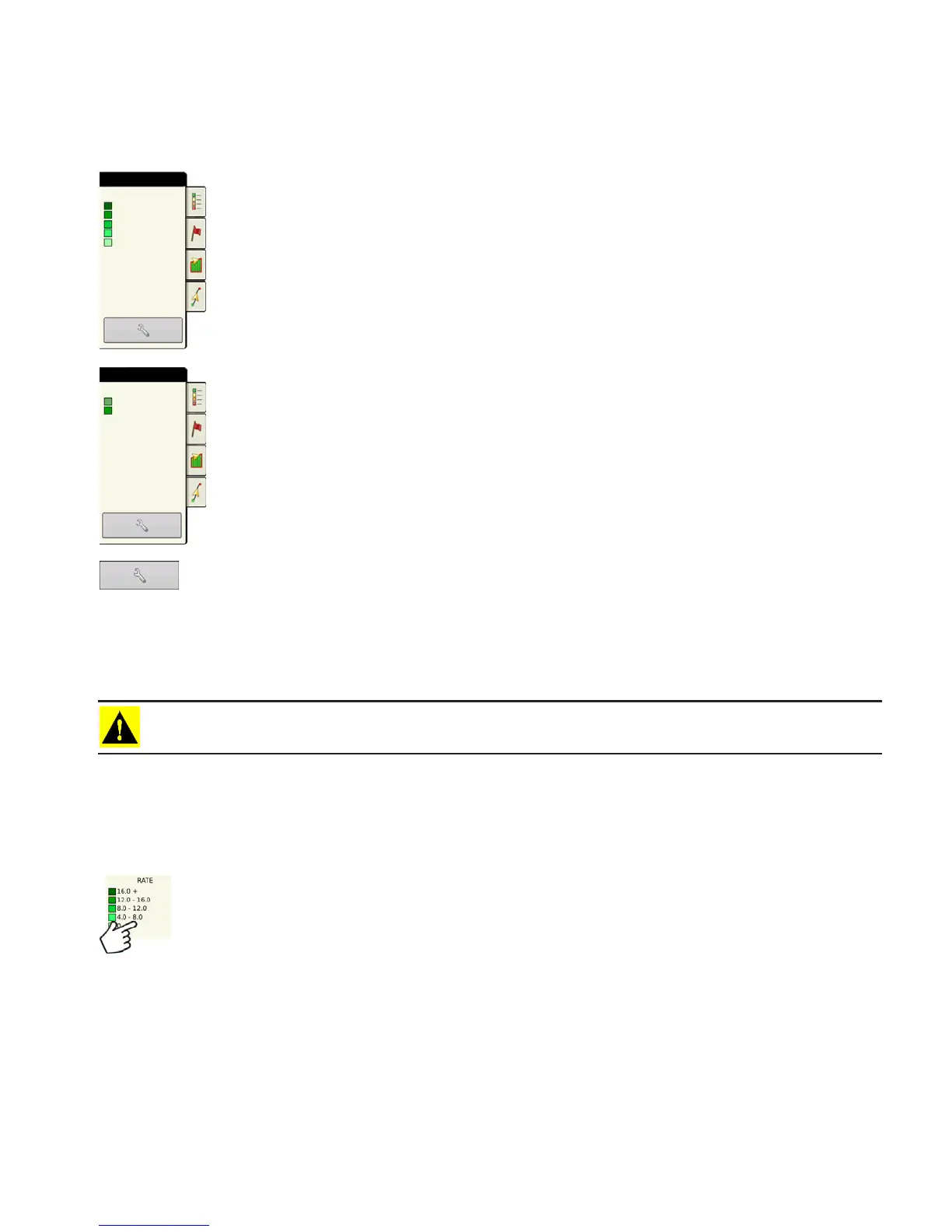

Press the Map Legend button at the top of the Mapping Toolbox, and the Legend appears, either for
Rate or Coverage.
Map Legend - Rate
Map Legend - Coverage
Legend Select — Press the Legend Setup (wrench) tool, and the Legend Select screen
appears. Here you can adjust Legend Settings, clear the map
• Clear Map
Permanently removes on-screen map from the active field operation, but the log data will still be exported
to the USB drive.
CAUTION: Once you clear the map, this information cannot be retrieved.
• Load Reference
Loads a list of maps of previous operations performed in that field. For each operation, you can view As-
Applied or Coverage attributes; and Varieties if you are performing a Planting operation.
Legend Settings
On the Legend Select screen, press legend, and the Legend Settings screen appears. The
Legend Settings screen allows you to change the default legend.
Water
RATE
16.0 +
12.0 - 16.0
8.0 - 12.0
4.0 - 8.0
0 - 4.0
Soybeans
Coverage
Coverage
Overlap
