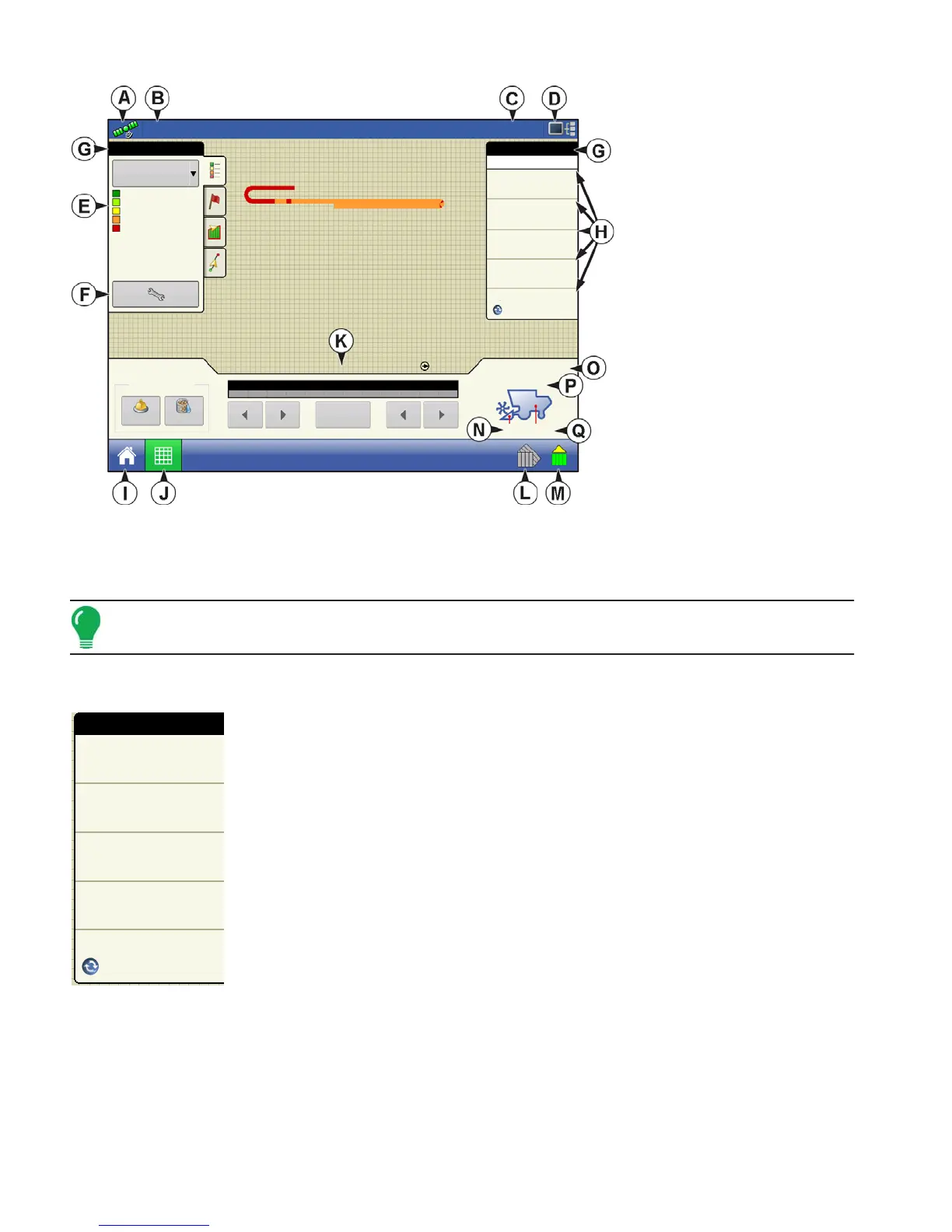

• (A) GPS Status
• (B) Total Field Area
• (C) Ground Speed
• (D) Diagnostics button
• (E) Map Legend (varieties)
• (F) Legend Select
• (G) Crop
• (H) Status Items
• (I) Home button
• (J) Map View button
• (K) Swath Width
• (L) AutoSwath
• (M) Logging Status button
• (N) Header Height %
• (O) Swath Width
• (P) Bushels Per Hour
• (Q) Elevator Speed
Note: Pressing the Map View button will cycle between the available Map screen views, and the appearance
of the Map View button changes.
HARVEST STATUS ITEMS
• Yield
Displays the instantaneous yield while there is grain flow and the average yield when
grain flow is not present.
• Moisture
Displays the instantaneous moisture when there is grain flow and the average when
there is no grain flow.
• Area
Shows the area harvested for the current region.
• Wet Weight
Shows the actual weight that has been harvested for the region.
• Wet Bushels
Shows the actual bushels that have been harvested for the current region.
• Dry Bushels
Displays the actual number of bushels at the specified dry moisture percentage.
- If the actual moisture is below the set dry moisture percentage and “Expand Bushels for All Grains
Below Dry %" is not checked, it will show actual bushels.
1979 lb
1.70 ac
160 bu/ac
5.0 mph
1.7 ac
Yield
235 +
215 - 235
195 - 215
175 - 195
0 - 175
Grain Calibration
Weight
Moisture
Rows: 12
Full
Swath
Corn
C1545
Yield (Avg)
Moisture (Avg)
15.1 %
Area
Wet Weight
Dry Bushels
35
Corn
0 bu/ hr
0
0 rpm
Yield
145.6 bu/ac
Moisture
16.5 %
Area
12.28 ac
Wet Weight
274089 lb
Wet Bushels
4894 bu
Corn
