211
PLANTING
KINZE PLANTER MONITOR MODULE
KINZE DISPLAY ITEMS ON EQUIPMENT TAB

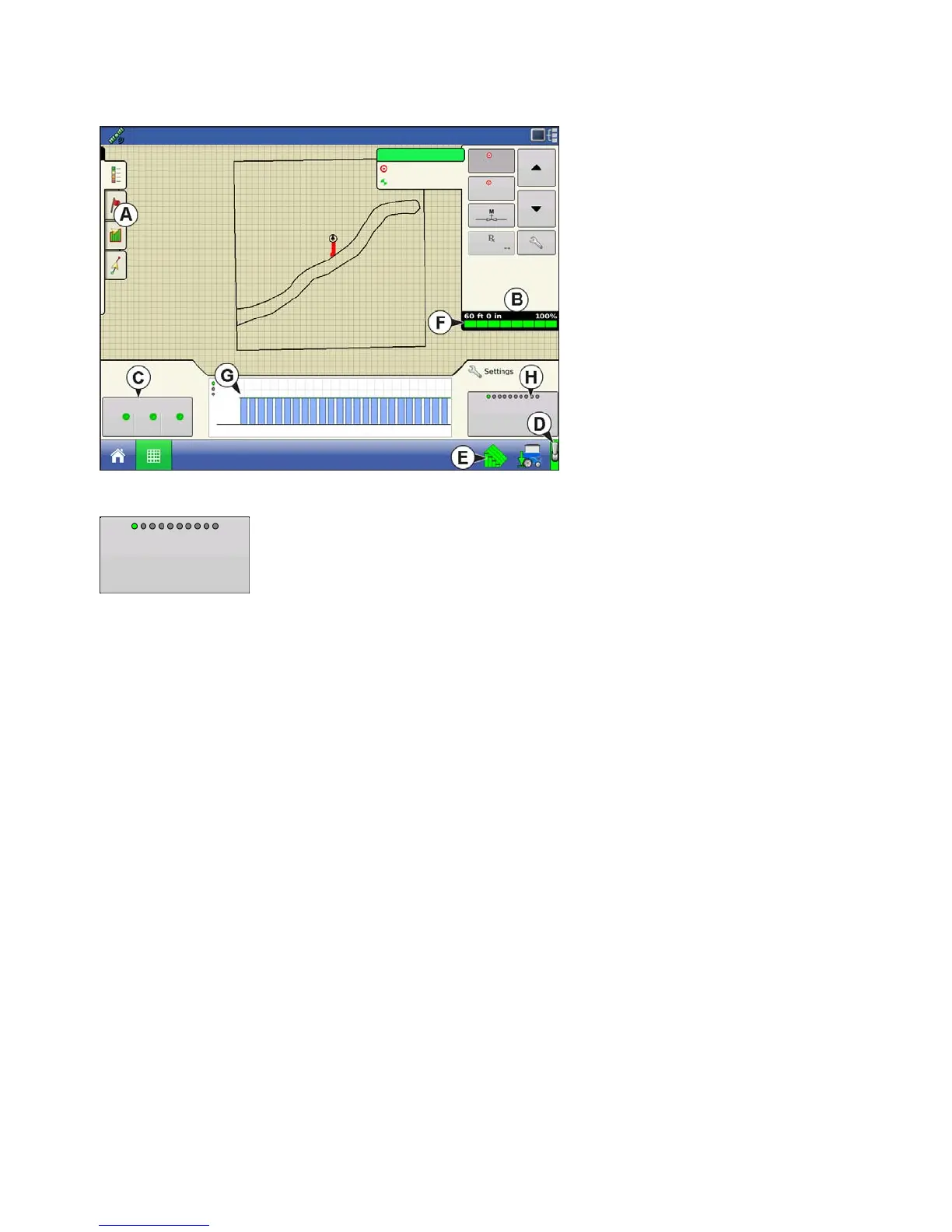

The left-hand side of the Map screen’s
Equipment Tab includes a number of
display items that will vary depending
upon the particular KINZE Planter
Monitor Module configuration.
Press button shown below to advance to the next button.
Shaft Speed
The speed of the planter drive shafts, in RPM.
SDS - The speed of the planter seed delivery system (auger), in RPM.
EdgeVac Level - Measure of seed meter vacuum. This measurement, shown in inches of water, is
displayed for each vacuum fan.
Pneumatic Down Pressure -
Measure of down force the air bag places on the row unit.
Magnetic Pickup - Speed registered according to the magnetic pickup.
Tank Weight - The weight of seed in each tank.
Tank Area Left
The number of acres (hectares) that can be planted with the amount of seed remaining in the tanks.
Tank Pressure
The air pressure level for the Air Seed Delivery (ASD) system.
Down Force - Measure of force on gauge wheel and force being applied to row unit.
Swath: 40 ft 0 in
29000
30000
30000
30000
sds/ac
1
2
5.0 mph
1
Flow: 10560 sds/min
Applied: 9064.0 sds
Area: 0.33 ac
546R1
100%
38.4 ac
Population: 30000 sds/ac Spacing 30 in
Shaft Speed
Planter Drives (rpm)
Settings
1
2
3
77
72
72
Outer Left
2
4
6
8
10
12
14
16
18
20
22
24
60 rpm
Inner Left
60 rpm
120 %
100 %
80 %
60 %
Shaft Speed
Outer Left 60 rpm
Inner Left 60 rpm
