LIQUID RATE CONTROL
RATE CONTROL: CONTAINER LEVEL
When filling or emptying container, use the
Container Level portion of the Rate Control Settings
screen to update the amount of product in the
containers.

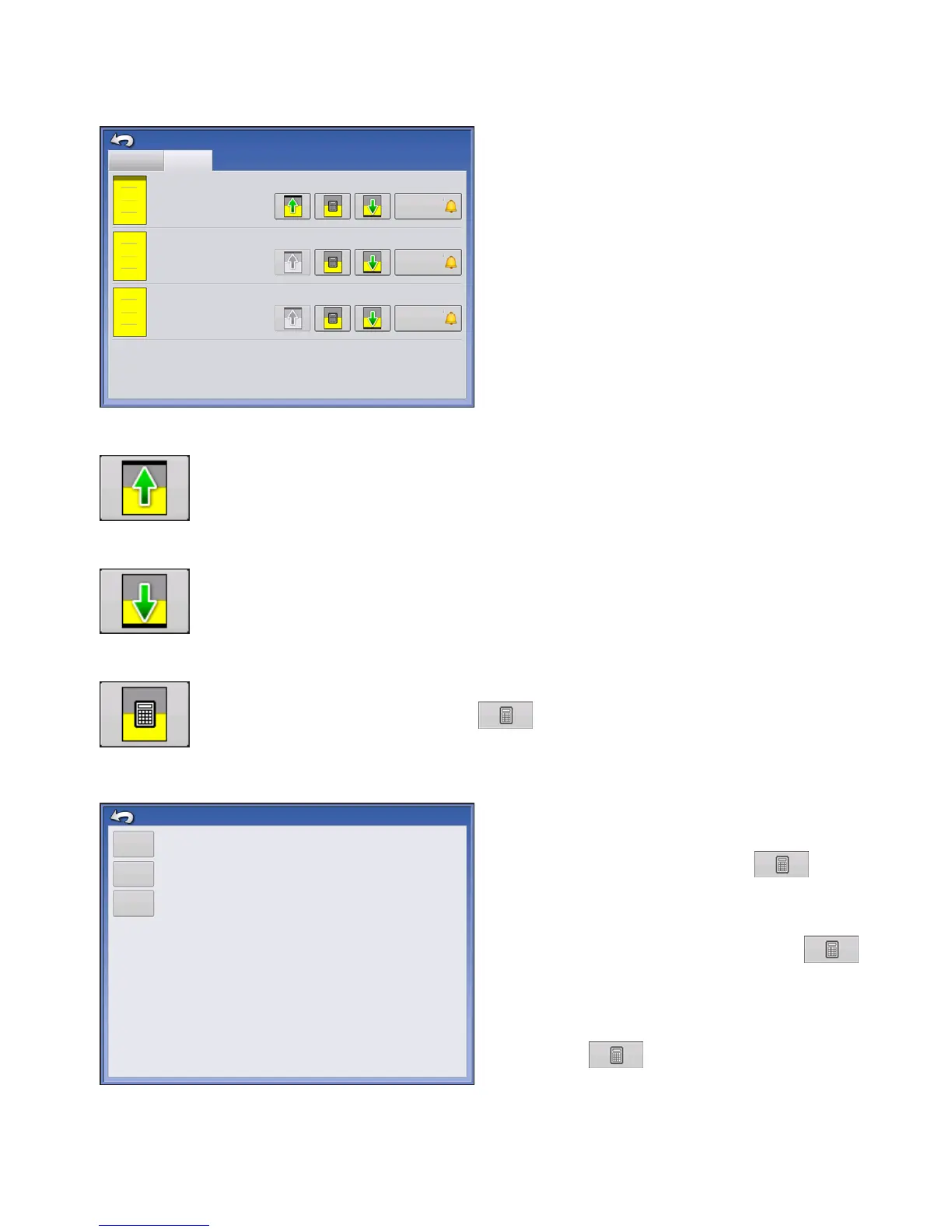

Container Level screen - (Partially Full)
Tank Fill
The Tank Fill button increases the container level logged in the display to the user-defined
maximum volume (specified in the Container Setup Wizard).
Tank Empty
The Tank Empty button decreases the container level logged in the display to zero.
Tank Partial Fill
The Tank Partial Fill button increases the container level logged in the display to specific
amount that you specify by pressing . Pressing the Partial Fill button summons the
Adjust Container Amount screen.
Adjust Container Amount
• Add
Adds product to the container.
Press
to enter
the amount.
• Remove
Removes product from the container.
Press
to
enter the amount.
• Set
Sets the product level in the container. This button
summons the
, where you can set a certain
amount. Choose an amount that is below your maximum
container level.
Rate Control
Containers
Full:
Current:
700
Tank 1 - Product 1
Rate Control Settings
800
80
10 %
Full:
Current:
400
Tank 2 - Product 2
400
Full:
Current:
200
Tank 3 - Product 3
200
40
10 %
20
10 %
Add product to the container
Remove product from the container
Set the product level in the container
Add
Remove
Set
Adjust Container Amount
To Next Page
