STEPPER SEED RATE CONTROL
The Stepper Seed Control module allows Rawson ACCU-RATE Variable Rate Controller to control up to
three hydraulic motor drives via the display. Configure the Stepper Seed Rate Control module in the
following order.
1. Configure Stepper Seed Rate Control module
See “Create Planting Configuration” on page 155.
2. Enter Controller Settings
Included the Max Meter Speed, Gear Ratio and Minimum Allowable Ground Speed.
See
“Controller Settings for Stepper Seed Rate Motor Drives” on page 168.
3. Prime the Stepper Seed Meter
This fills the seed meter with seed to avoid skips.
See
“Priming Seed Rate Meters” on page 173
.
4. Meter Calibration
- a. Enter Meter Calibration Number. This number, representing seeds per revolution, is set according to
the number of seeds dropped per one revolution of the seed meter. See “Calibrating Seed Rate
Meters” on page 174.
- b. Perform a Seed Meter Calibration. A new calibration should be performed if the as-applied seed rate
does not match the actual population planted. See “Calibrating Seed Rate Meters” on page 174.
CONTROLLER SETTINGS FOR STEPPER SEED RATE MOTOR DRIVES
Stepper Controller Settings should be set before entering a meter calibration number or performing field
operations.

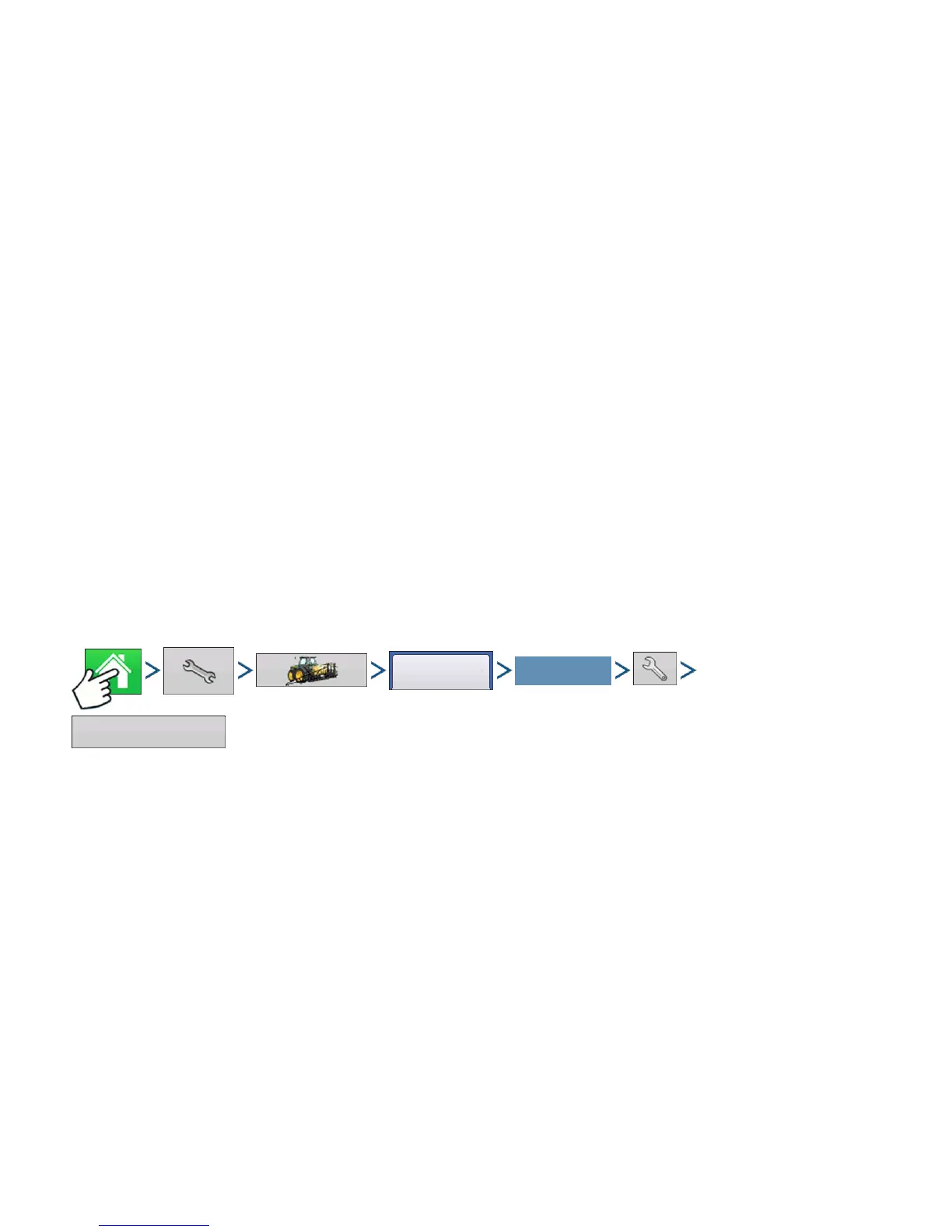

Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button > Controller Settings button
Each channel is displayed with its own tab. Auxiliary Tab allows adjustment of the Minimum Allowable
Ground Speed.
Configuration
Select Your Specific
Configuration
Controller
Settings
To Next Page
