Tank Mix Setup
A tank mix can contain up to seven individual components.

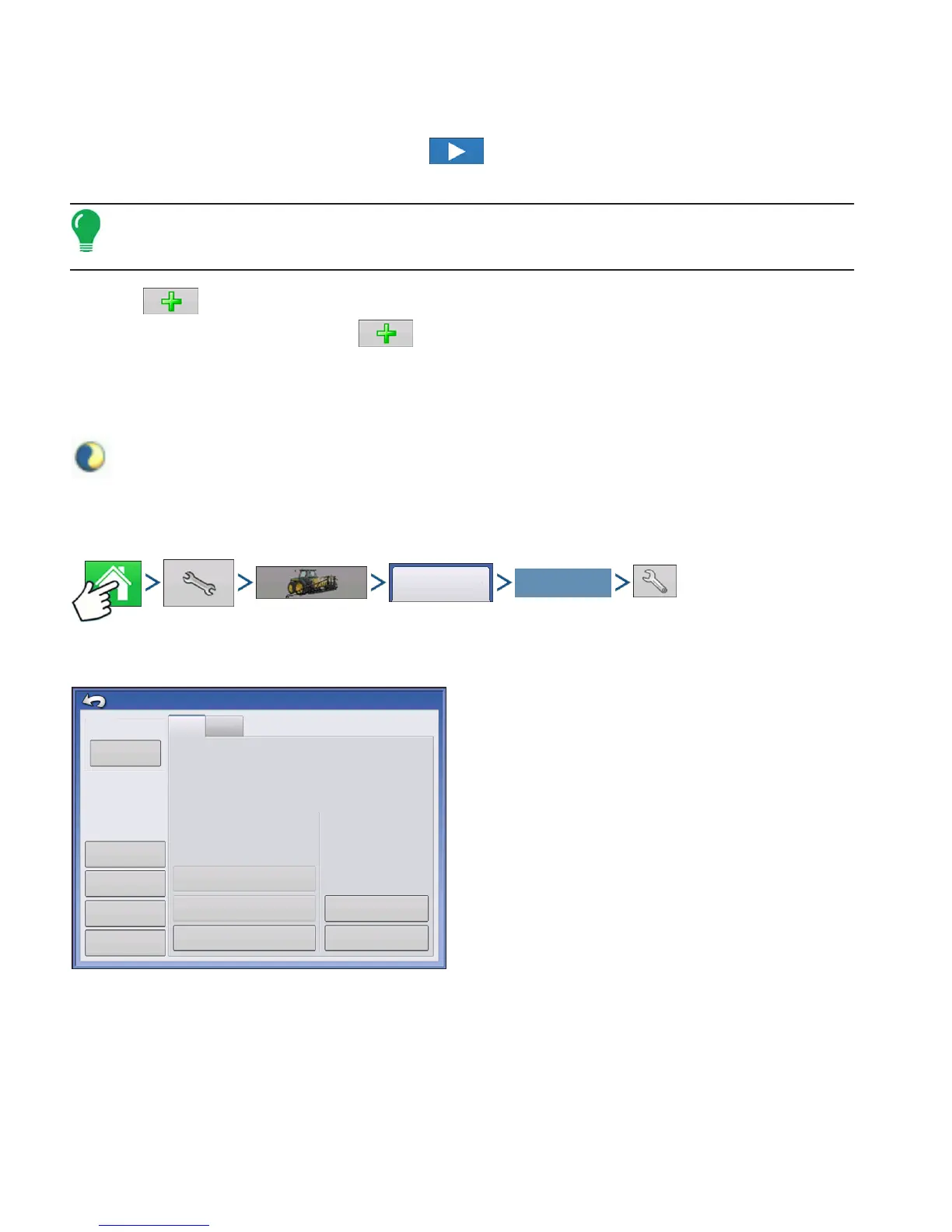

1. Select Tank Mix from the list box and press to continue.
2. Enter a Base Amount and Units.
Note: The Base Amount is the total volume of all the components of the tank mix. The Base Amount does
not need to match the actual volume of product that will be sprayed, but is used only to establish the ratio of
all products to the total volume.
3. Press to start the process of adding components to the tank mix. Select a desired mix
component from the list box (or press to set up the product). Enter the Amount of the mix
component.
4. Repeat this process for the second mix component, if necessary.
5. Add a product carrier and an amount for that carrier by following the steps shown in the wizard.
6. Last, enter a unique name for the tank mix. The new mix will appear in the Product List. The
mix name will appear next to a blue and cream-colored “Tao” symbol (a circle with a curved line
through it).
CONFIGURATION SETUP
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button
The Configuration Setup screen appears. Screen
will vary depending on configuration. Process may
include the following tasks:
Configuration Settings:
• Adjust Implement Switch Settings (for area logging)
If using an implement switch in a area logging planting operation, adjust the Implement Switch Settings. For
more information, see
“Equipment Settings” on page 79
.
• Adjust Equipment Settings (for Rate Control)
DirectCommand configurations should adjust settings at the Equipment Configuration Settings screen. For
more information, see
“Equipment Settings” on page 79
.
Configuration
Select Your Specific
Configuration
80 ft
Vehicle
Offsets
Norac
UC5
Crop
Sensor
Speed
Input
Auxiliary
Input
Automatic
Swath Control
Equipment
Settings
Calibrate
Pressure
Controller
Settings
Offsets
Implement: JD 4630
Full Swath:
Sections:
5
Controller: DirectLiquid
Serial Number:
2003750001
Device:
DirectCommand
Type:
Liquid
Flow Meter Cal (pls/gal)
inf
Vehicle
JD 4630
1
2
Configuration Setup
To Next Page
