Agilent 1260 Infinity DAD and MWD User Manual 107
Using the Detector
5
Special Settings of the Detector
Analog Output Settings
To change the Output Range of the analog outputs see “Control Settings” on
page 100.
1 To change the offset and the attenuation select Analog Outputs.
2 Change the ranges for absorbance and wavelength according your needs.
3 Change the values if required.

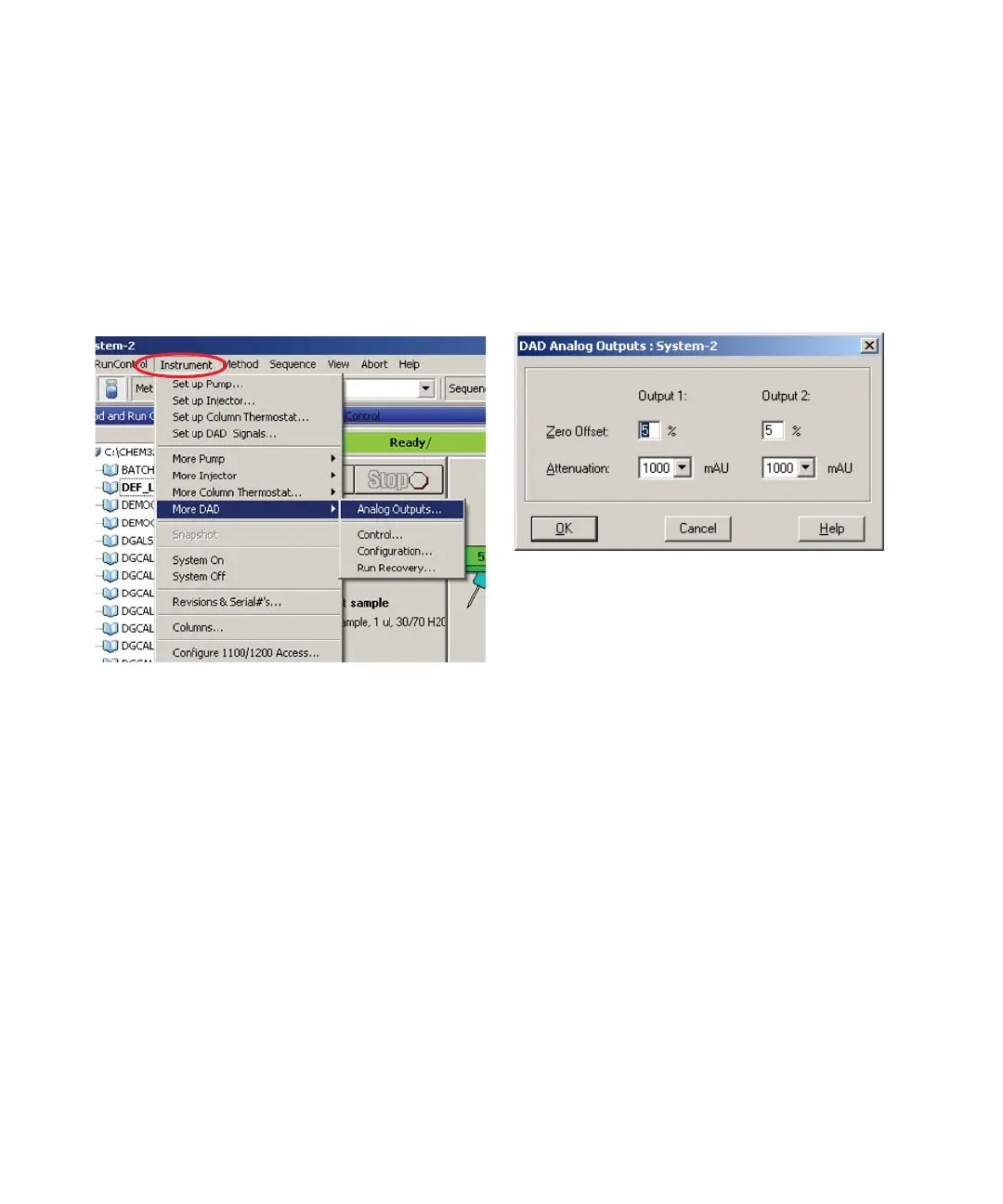

Figure 45 Analog Output Settings
Zero Offset Limits: 1 to 99% in steps of 1%
Attenuation Limits: 0.98 to 2000 mAU at discrete values
for either 100 mV or 1 V full scale
