58 Agilent 1260 Infinity DAD and MWD User Manual
4 LAN Configuration
What you have to do first
What you have to do first
The module has an on-board LAN communication interface.
1 Note the MAC (Media Access Control) address for further reference. The
MAC or hardware address of the LAN interfaces is a world wide unique
identifier. No other network device will have the same hardware address.
The MAC address can be found on a label at the rear of the module
underneath the configuration switch (see Figure 13 on page 58).
Figure 12 MAC-Label
2 Connect the instrument's LAN interface (see Figure 13 on page 58) to
• the PC network card using a crossover network cable (point-to-point) or
• a hub or switch using a standard LAN cable.

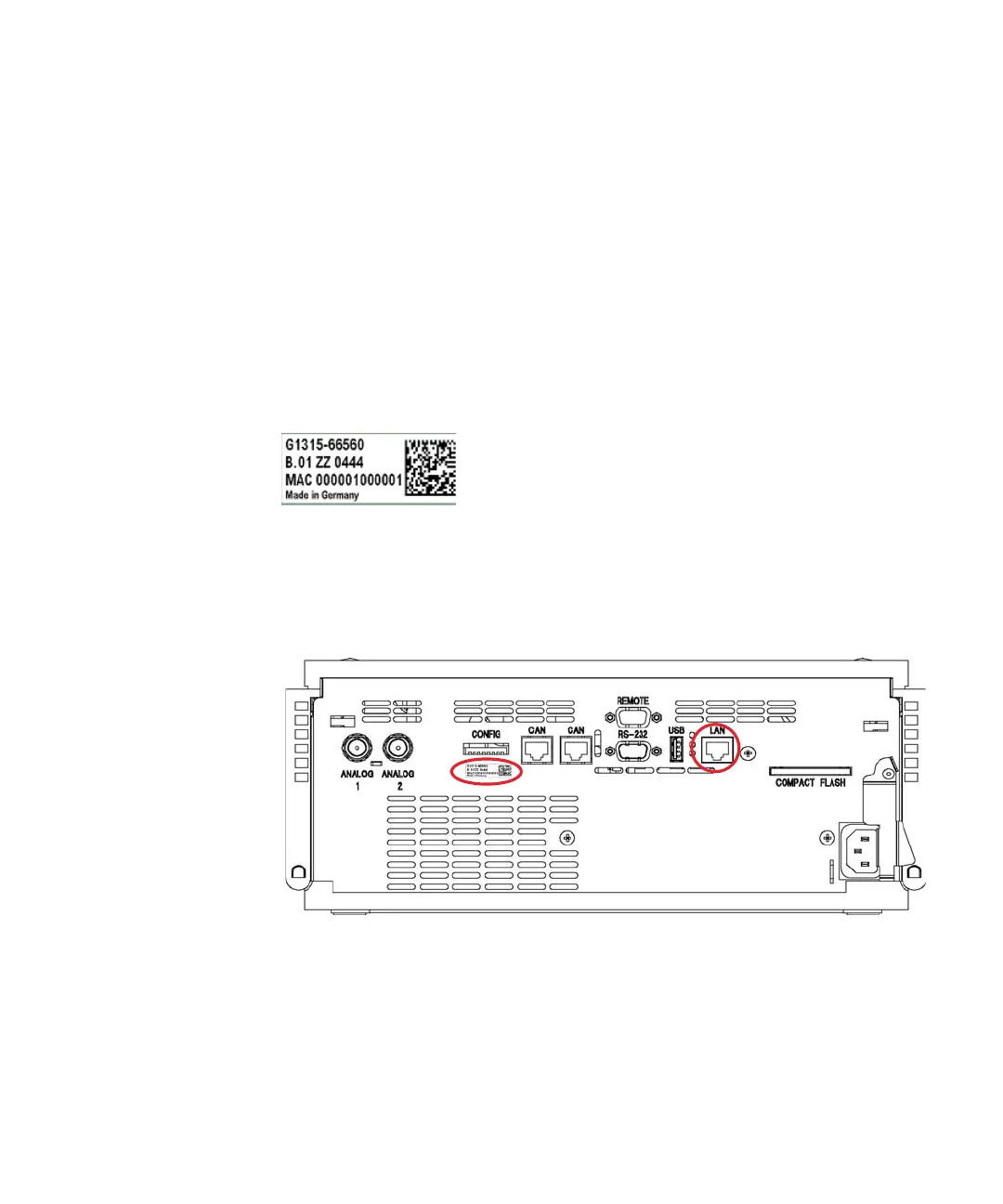

Figure 13 Location of LAN interface and MAC label
EVgicjbWZgd[i]ZYZiZXidgbV^cWdVgY
GZk^h^dc8dYZ!KZcYdg!NZVgVcYLZZ`d[VhhZbWan
B68VYYgZhh
8djcignd[Dg^\^c
To Next Page
