100 Agilent 1260 Infinity DAD and MWD User Manual
5 Using the Detector
Special Settings of the Detector
Special Settings of the Detector
In this chapter special settings of the G1315C/D and G1365C/D are described
(based on the Agilent ChemStation B.02.01).
Control Settings

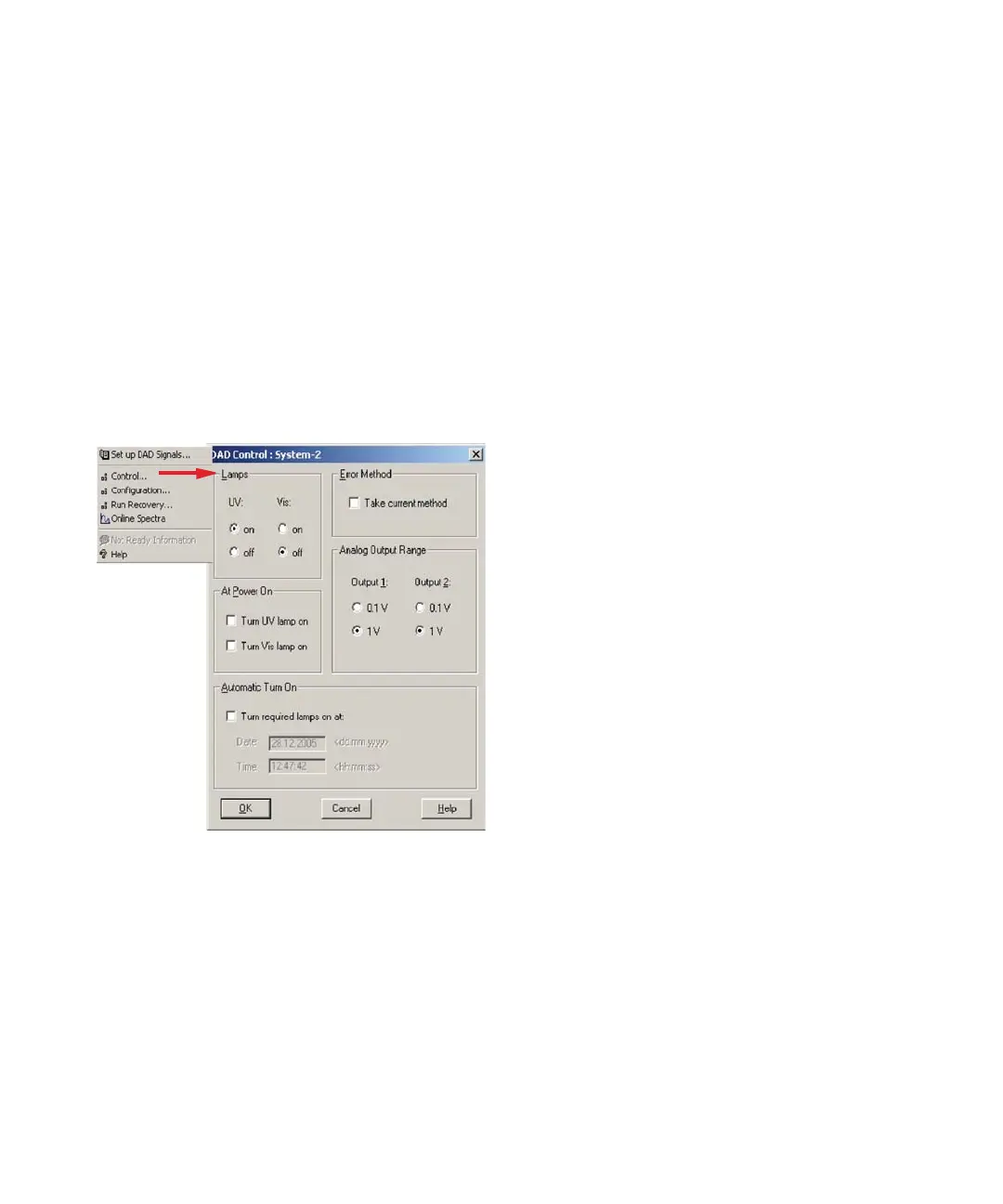

Figure 42 Detector control settings
•Lamps: turn on and off of UV- and Vis lamp
•At Power On: automatic lamp-on at power on.
• Error Method: take error method or current method (in
case of an error)
• Analog Output Range: can be set to either 100 mV or 1
V full scale, “Analog Output Settings” on page 107
• Automatic Turn On: lamps can be programmed
(detector must be on for this).
•Help: online help.
To Next Page
