256 Agilent 1260 Infinity DAD and MWD User Manual

12 Identifying Cables

Analog Cables

One end of these cables provides a BNC connector to be connected to Agilent

modules. The other end depends on the instrument to which connection is

being made.

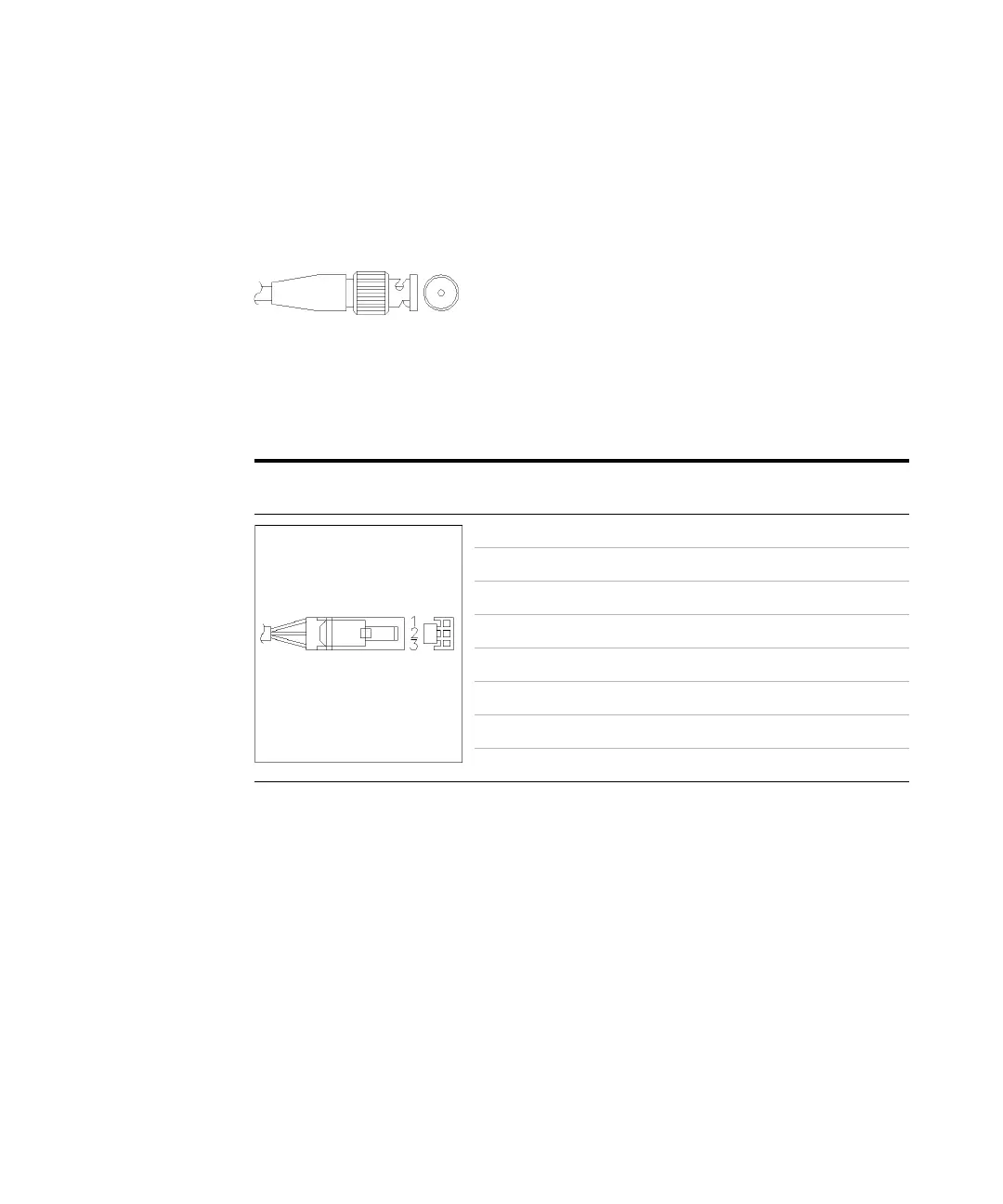

Agilent Module to 3394/6 Integrators

p/n 35900-60750 Pin 3394/6 Pin Agilent

module

Signal Name

1 Not connected

2 Shield Analog -

3CenterAnalog +
