60 Agilent 1260 Infinity DAD and MWD User Manual
4 LAN Configuration
Configuration Switch
Configuration Switch
The configuration switch can be accessed at the rear of the module.

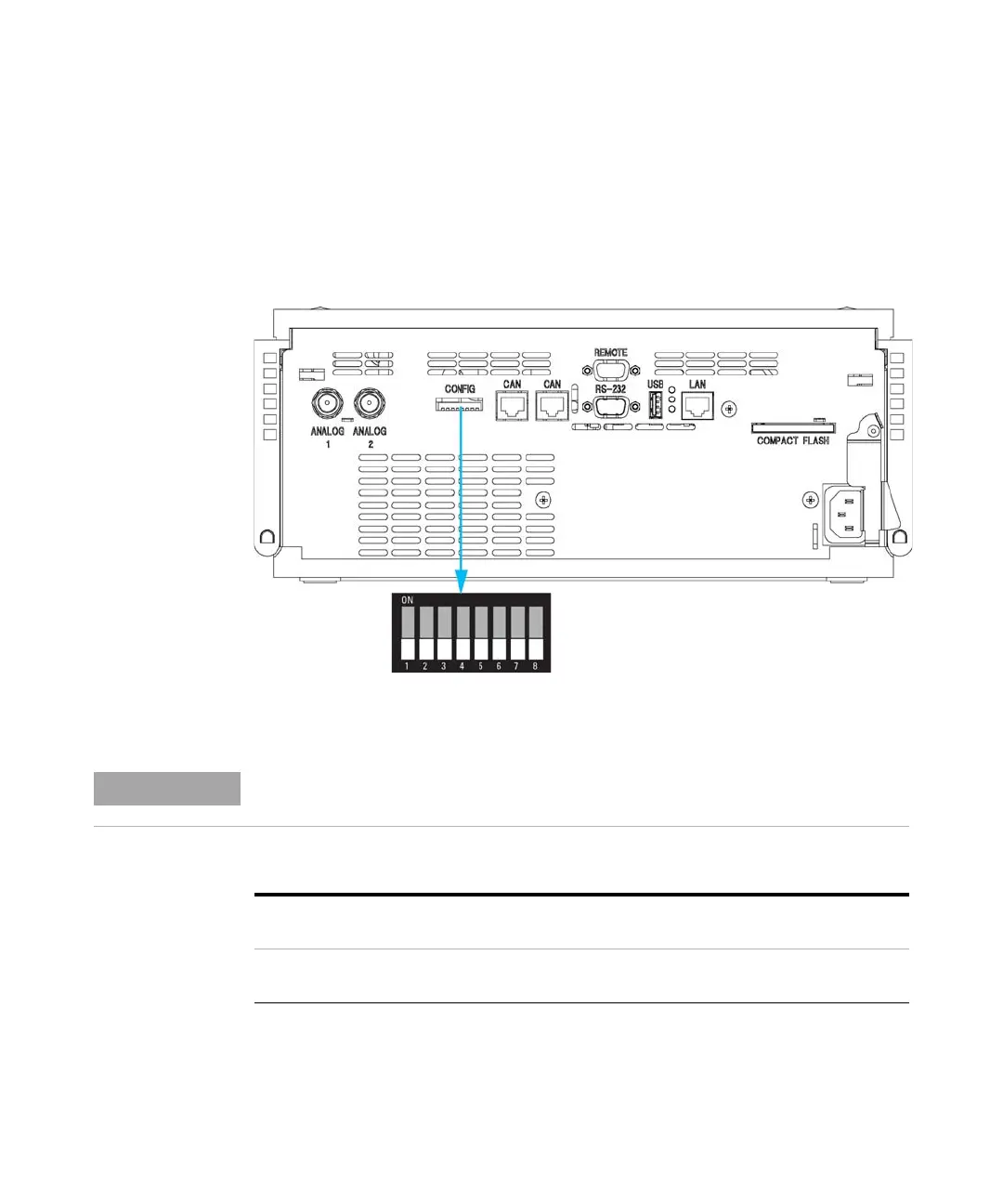

Figure 14 Location of Configuration Switch
The module is shipped with all switches set to OFF, as shown above.
NOTE
To perform any LAN configuration, SW1 and SW2 must be set to OFF.
Tab le 15 Factory Default Settings
Initialization (‘Init’) Mode Bootp, all switches down. For details see “Initialization mode
selection” on page 61
Link Configuration speed and duplex mode determined by auto-negotiation, for
details see “Link configuration selection” on page 65
