2-14 Agilent 4155C/4156C User’s Guide Vol.1, Edition 11
Installation
Installing Accessories
Connecting the 4155C and the 16442A/B test fixture

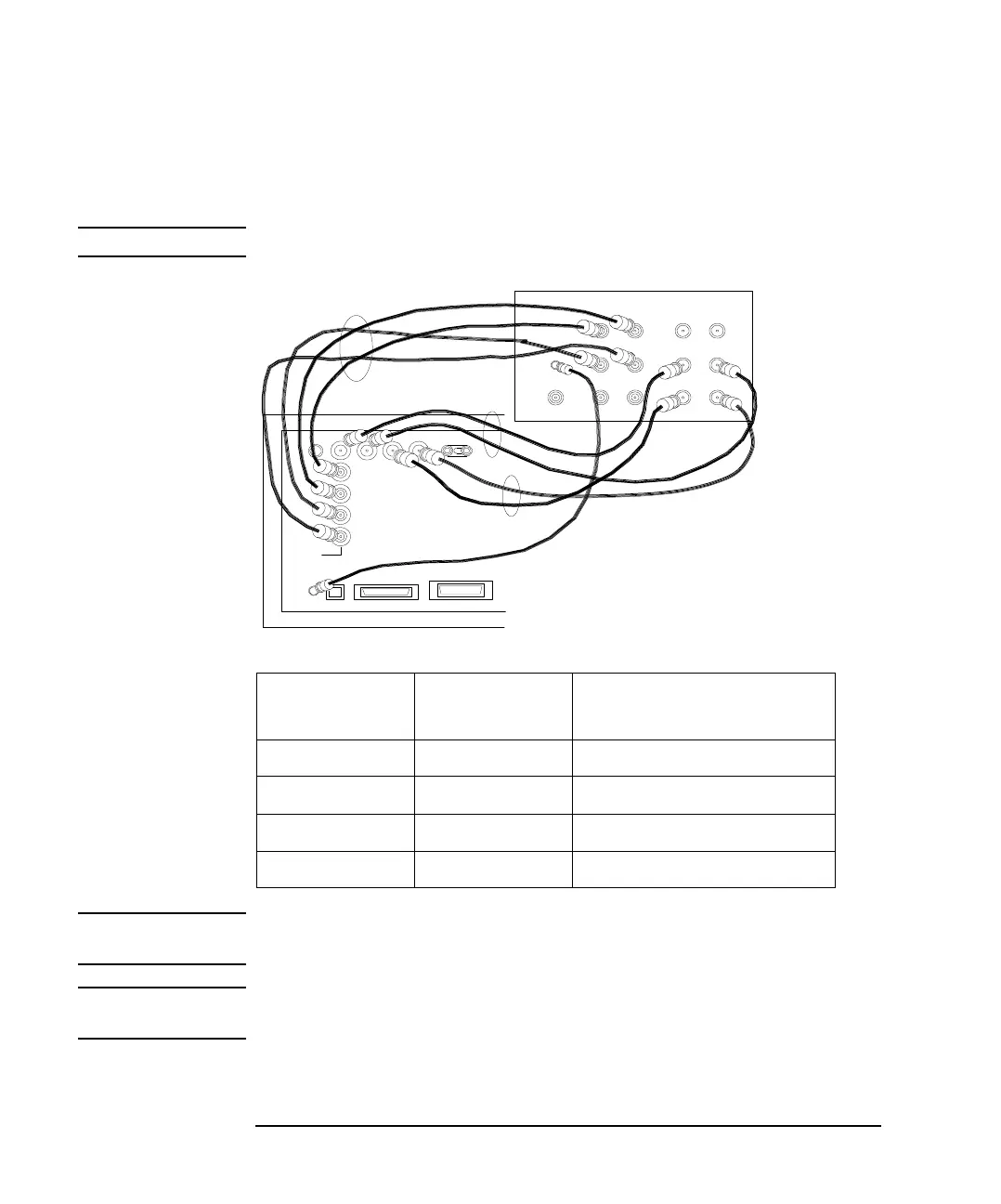

Connect the 4155C and the 16442A/B as shown below.
CAUTION To prevent electrical shock during use, be sure to connect the interlock cable.
WARNING There are potentially hazardous voltages of up to ±100 V at the Force and
Guard terminals. To prevent electrical shock, do not expose these lines.
CAUTION Never connect the Guard terminal to any output, including circuit common, frame
ground, or any other guard terminal. Doing so will damage the SMU.
16442A/B
4155C
1. Intlk
2. VSUs
3. VMUs
4. MPSMUs
Force
4155C Terminals
16442A/B
Terminals
Cable
Intlk Intlk 3 m or 1.5 m Interlock Cable
VSU VSU 3 m or 1.5 m Coaxial Cable
VMU VMU 3 m or 1.5 m Coaxial Cable
MPSMU SMU 3 m or 1.5 m Triaxial Cable
To Next Page
