Agilent 4155C/4156C User’s Guide Vol.1, Edition 11 2-15
Installation
Installing Accessories
Connecting the 4156C and the 16442A/B test fixture

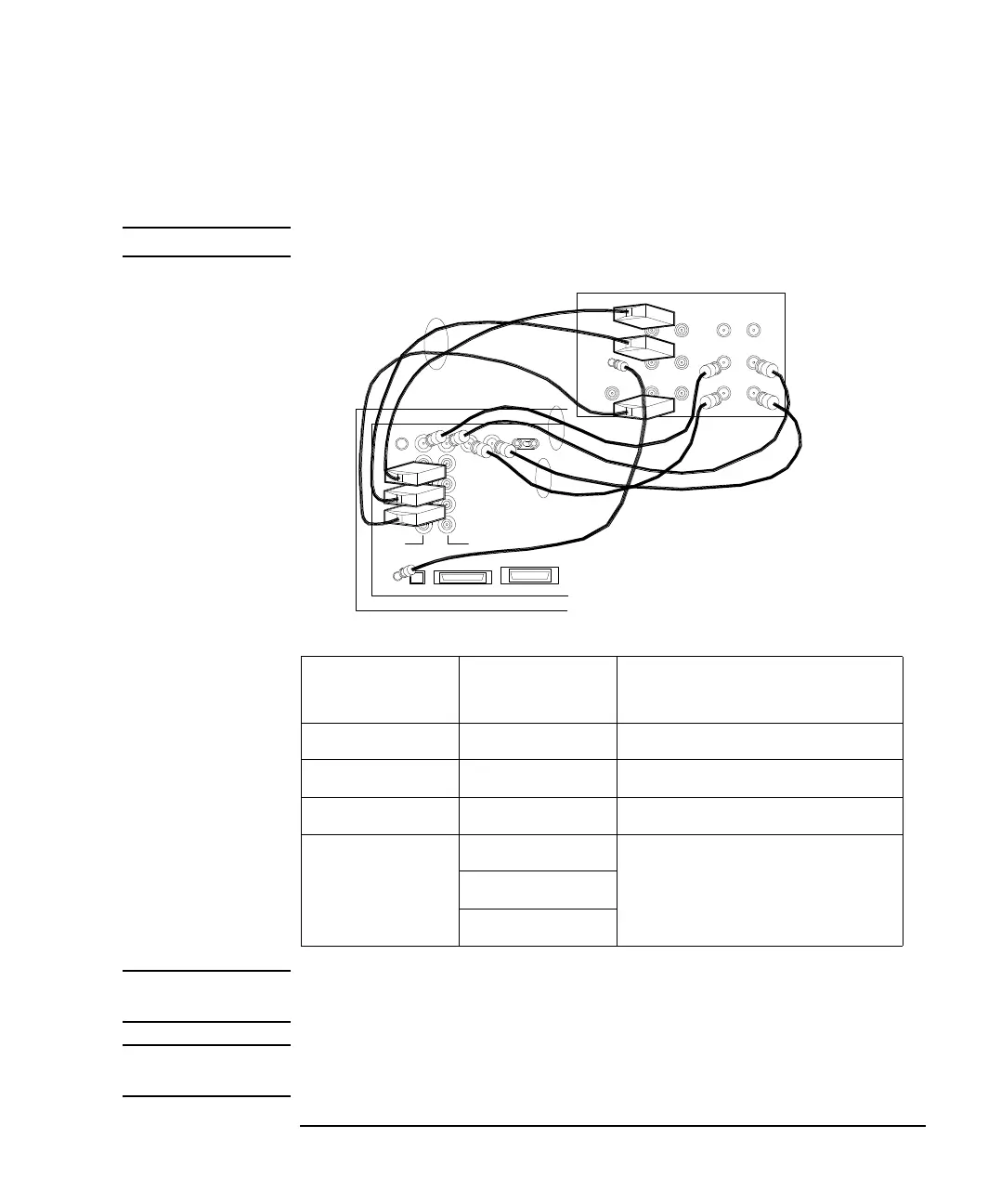

Connect the 4156C and the 16442A/B as shown below.
CAUTION To prevent electrical shock during use, be sure to connect the interlock cable.
WARNING There are potentially hazardous voltages of up to ±100 V at the Force, Sense,
and Guard terminals. To prevent electrical shock, do not expose these lines.
CAUTION Never connect the Guard terminal to any output, including circuit common, chassis
ground, or any other guard terminal. Doing so will damage the SMU.
4156C
16442A/B
4. HRSMUs
2. VSUs
3. VMUs
1. IntlkForce Sense
4156C Terminals
16442A/B
Terminals
Cable
Intlk Intlk 3 m or 1.5 m Interlock Cable
VSU VSU 3 m or 1.5 m Coaxial Cable
VMU VMU 3 m or 1.5 m Coaxial Cable
HRSMU SMU1 and SMU2 3 m or 1.5 m Kelvin Triaxial Cable
(for Kelvin connection) or
3 m or 1.5 m Triaxial Cable (for
non-Kelvin connection)
SMU3 and SMU4
SMU5 and SMU6
To Next Page
