Agilent 4155C/4156C User’s Guide Vol.1, Edition 11 2-35
Installation
Mounting Connectors

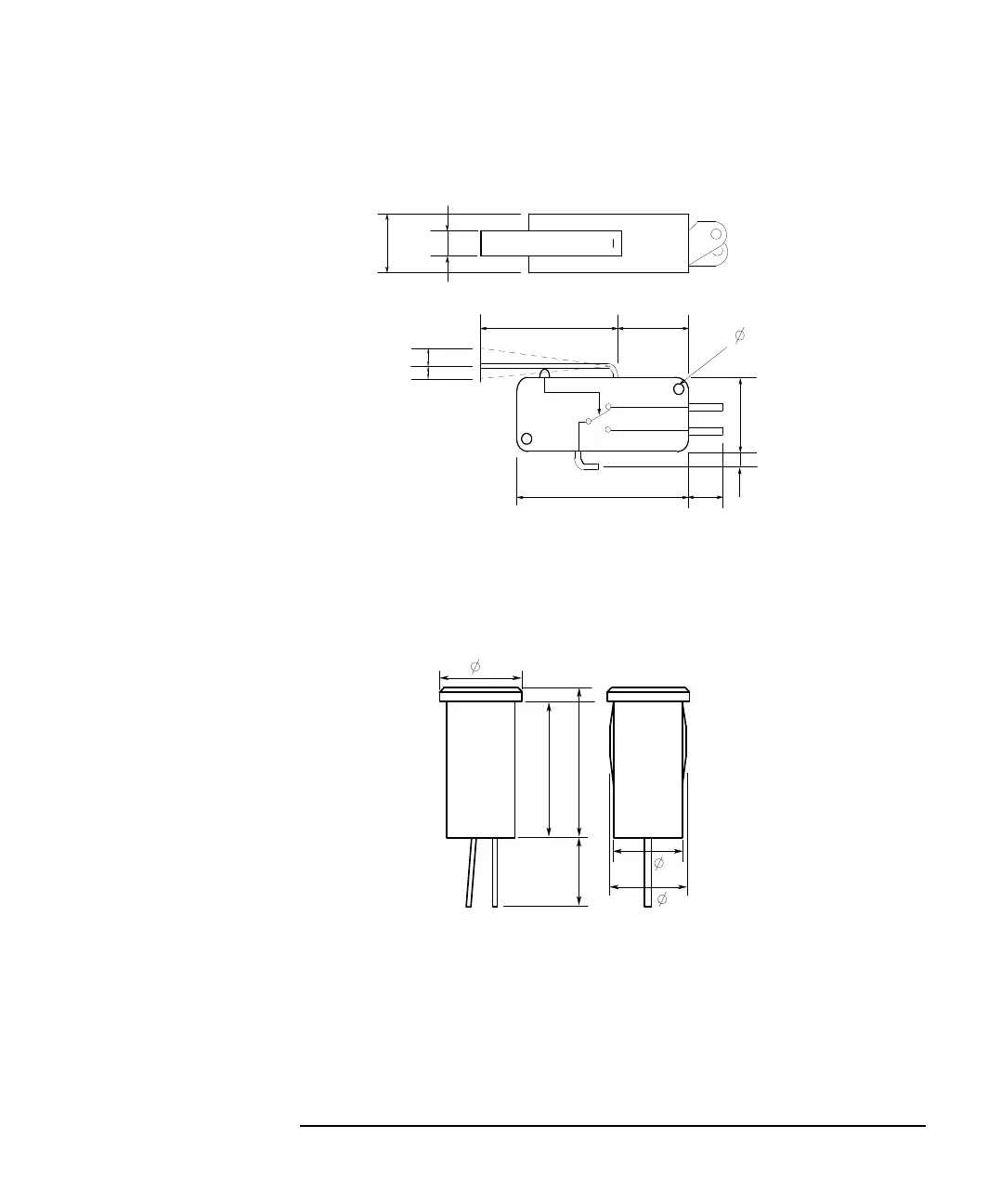

Figure 2-4 Dimensions of the Interlock Switch (Agilent part number 3101-3241)
Figure 2-5 Dimensions of the LED (Agilent part number 1450-0641)
3.1
Switch off
Switch on
27.5
10.9
15.9
3.4
27.8 6.8
10.2 4.3
3.2
2.0
UGI01012,85x60
Units: mm
6
10
11
5
5.6
5
Cathode(-)
Anode(+)
Units: mm
UGI01013,50x50
